Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China |
| Brand Name: | SCXK |
| Certification: | CE. Rohs .FCC ,UL,TUV |
| Model Number: | SCXK-G3.91-7.8125 |
| Minimum Order Quantity: | 5sqm can be available |
|---|---|
| Price: | Can be Negotiable |
| Packaging Details: | wooden box packaged or flight case packaged |
| Delivery Time: | 7-10days can be finished and sent to you |
| Payment Terms: | D/P, L/C, D/A, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 sqm/month can be available |
| Material: | Plastic | Dot Density: | 32768dots/sqm |
|---|---|---|---|
| Cabinet Size:: | 500 X1000mm | Cabinet Resolution: | 128dots X128 Dots |
| LED Standard: | 1R1G11B | Usage: | Indoor Usage |
| LED Lamp: | SMD2525 | ||
| High Light: | transparent led display,led transparent screen |
||

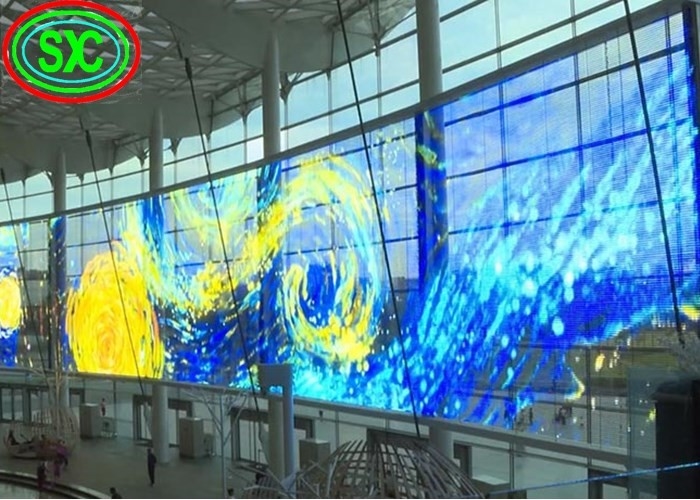

High Stability Indoor Full Color Transparent LED Screen SMD1921 500mm x1000mm
Quick details:
SCXK has been specialized in LED field since 2005. We are a leading manufacturer an provider of technical solution of full color indoor and outdoor led display,rental LED display, led modules where in Shenzhen city ,Guang dong province,China.
It can be used on the shopping mall,bank, bus station, train station, center of downtown, airport, school, factory, bus, taxi, and so on.
we adopt many methods and very good after-sales service to sell our product all over the world.. Whenever and wherever we are ,
we always take the principle that professional makes good quality, provide the perfect product and service for our customer.
Specification:
| LED Lamps | Type | SMD1921(High Brightness LEDs) | |||||||
| LED Standard | Real Pixel(1R1G1B) | ||||||||
| Red Wavelength | 625-630nm | ||||||||
| Green Wavelength | 515-530nm | ||||||||
| Blue Wavelength | 465-475nm | ||||||||
| LED Module | Pixel Pitch | 10.4mm | |||||||
| LED Cabinet | Cabinet Size | 500mmx1000mm | |||||||
| Cabinet resolution | 48x96 dots | ||||||||
| Cabinets Material | Special Gum and plastic | ||||||||
| LED Display | Pixel Density | 9216pixels/sq.m | |||||||
| Drive IC | MBI5124 | ||||||||
| Power Supply | Series connection | ||||||||
| Brightness | >1000cd/sqm | ||||||||
| Display Color | 16.7million | ||||||||
| Viewing Angle | 160°(Horizontal),110°(Vertical) | ||||||||
| Best Viewing Distance | 10.4m~200m | ||||||||
| Max Power Consumption | 600 w/sq.m | ||||||||
| Average Power Consumption | 300 w/sq.m | ||||||||
| Weight | 16kgs/sq.m | ||||||||
| Refresh Rate | 2500hz | ||||||||
| Input Voltage | AC220V/50H or AC110V/60H | ||||||||
| Output Voltage | DC5V,40A | ||||||||
| Grey Scale Levels | 16bit | ||||||||
| Display Colors | R(1024) x G(1024) x B(1024) | ||||||||
| MTBF | 10,000 hours | ||||||||
| Life-span | 100,000 hours | ||||||||
| Protection Level | IP54 | ||||||||
| Failure percentage of leds | less than 0.0003 | ||||||||
| Working Temperature | -5℃~65℃ | ||||||||
| Working Humidity | 10%~99% | ||||||||
| Control System | Control method | Synchronization & Asynchronization | |||||||
| Control System | (software) linsn | ||||||||
| Software | LED Studio | ||||||||
| Input Signal | MPG/MPEG/MPV/MPA/AVI/VCD/SWF/RM/RA/RM/ASF/BMP/GIF/PCX/TXT/DOC.etc | ||||||||
| PC Operating system | Microsoft Windows 7, 98, 2000, XP and Vista | ||||||||
Competitive advantage:
Q1. What's the warranty of your LED Display Screen ?
A1. We have a 3-years warranty for our led display screen, and 100,000 hours life span of the led lamps.
Q2. What about your pre-sale service and post-sale service?
A2. For pre-sale service. We have a professional sales team and a 8 years technical team who are willing to answer your question 24/7.
We can offer a whole complete solution for your project!
For post-sale service. We can instruct you how to use, adjust the screens, and change the boken modules with spare parts.
Also, we can send technicals to your country to solve problems. Mostly, our led display will not have big problems within warranty time!
Q3. Whats your payment term? How long it takes to delivery?
A3. We accept T/T and L/C, For both T/T and L/C, At least 30% deposit in advance, and the rest 70% before delivery.Our average Production time is 10 days, after receiving the deposit.
Q4. What's the control system?
A4. For synchronization control. We use Nova, Linsn Or Colorlight control system.
