Indoor P3.91 Transparent Led Curtain Screen window Aluminum Cabinet Material ,1920 refresh rate,500x1000mm cabinet

Indoor P3.91 Transparent Led Curtain Screen window Aluminum Cabinet Material ,1920 refresh rate,500x1000mm cabinet

Indoor P3.91 Transparent Led Curtain Screen window Aluminum Cabinet Material ,1920 refresh rate,500x1000mm cabinet
Indoor P3.91 Transparent Led Curtain Screen window Aluminum Cabinet Material ,1920 refresh rate,500x1000mm cabinet
Indoor P3.91 Transparent Led Curtain Screen window Aluminum Cabinet Material ,1920 refresh rate,500x1000mm cabinet
Product Details:
Place of Origin: China
Brand Name: SCXK
Certification: CB,CE,ROHS,FCC,SASO
Model Number: P3.91-7.82
Payment & Shipping Terms:
Minimum Order Quantity: 15 sqm
Price: negotiation
Packaging Details: wooden case,flight case,it is up to you.
Delivery Time: 7-10 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000 sqm month
Contact Now
Detailed Product Description
Cabinet Dimension:: 1000*500*70mm Video Frame Rate:: 60HZ
Cabinet Material:: Aluminum Pixel Configuration: SMD1921
Module Size: 500×125mm Display Refresh Rate: ≥1920Hz
Pixel Pitch: 3.9 / 7.8mm Warranty: 3 Years
Brightness: 1500cd Led Chip: Kinglight
Control System: Nova ,huidu,colorlight,linsn Weight: 4.5kg
High Light:

transparent led panel

,

led transparent screen

P3.91 High Transparency 3.91mm Video Wall Panel Price Indoor P3.91 Glass Window Transparent LED Display Screen


Advantage



1. Aluminum cabinet, excellent heat dissipation, stable performance
2. Thin design of small pixel pitch cabinet , cabinet weight 8KG
3. IP ration IP65, it used for both outdoor /indoor
4. High permeability, using double-sided hardened PC, permeability≥48%
5. For fixed installation and rental ,support for the front maintenance
6. Cabinet with the special lock system, fast installation


Specifications


Product type
P3.9/7.8
Pixel pitch
3.9 / 7.8mm
Pixel configuration
SMD1921
Module resolution
128×8 dot
Pixel per module
1024 dot
Module size
500×62.5mm
Transparency
45%
Pixel density
32768 dot/m²
Recommended minimum viewing distance
4-10m
Brightness
≥2500 cd/m²
Color temperature
6500-12000K
Viewing angle(H/V)
110°/100°
Cabinet pixel matrix
256×64dot
Cabinet size
1000×500mm
Cabinet material
Alum
Gray scale(Linear)
14 bit
Brightness control
Manual / Automatic adjustment
Video frame rate
60Hz
Display refresh rate
≥1920Hz
Driving method
Constant current drive
Input voltage
AC110~240V
Input power(Max)
50 /60 Hz
Input power(Average)
600W/m²
Working temperature
240W/m²
Storage temperature
-20~40
Working humidity
-40~60
Lifespan
10~90% RH
Application
Outdoor / Indoor
Dot defective rate
Three ten thousandths, and into discrete
Maintenance mode
Front service

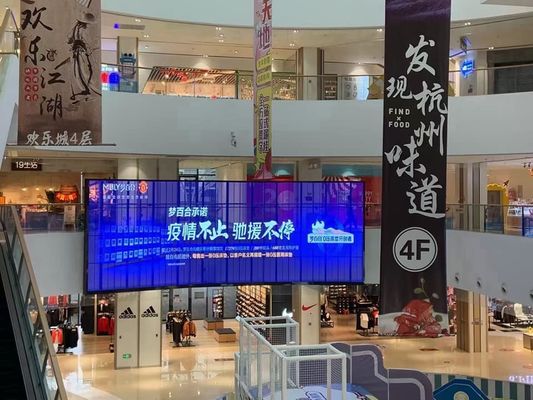

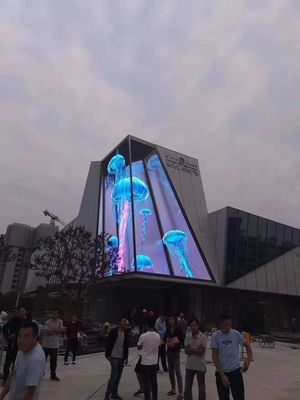

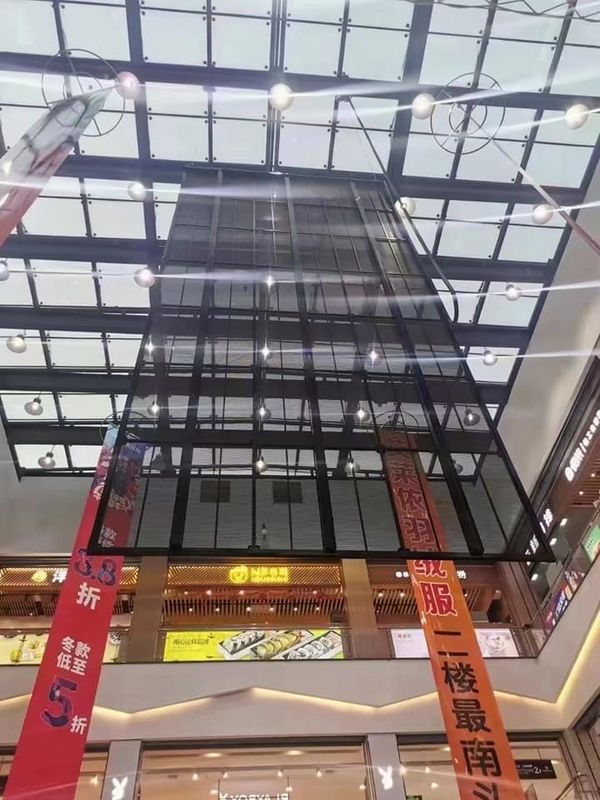

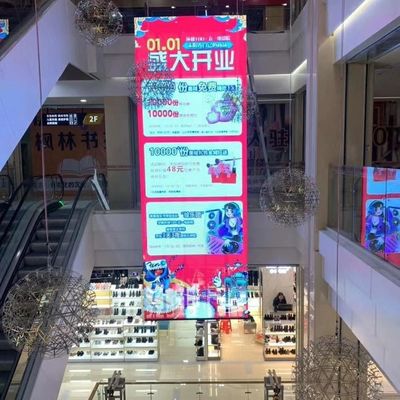

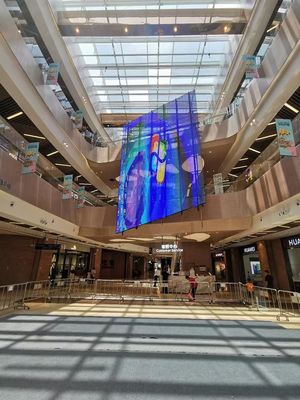

OUr case
Indoor P3.91 Transparent Led Curtain Screen window Aluminum Cabinet Material ,1920 refresh rate,500x1000mm cabinet 0


Indoor P3.91 Transparent Led Curtain Screen window Aluminum Cabinet Material ,1920 refresh rate,500x1000mm cabinet 1




Application

Indoor P3.91 Transparent LED Screen Glass Window Screen Aluminum Cabinet Material

Our Service

1. Warranty
1) We provide warranty of all components for 3 full years. During this time, we will replace or repair our goods for free if there is something wrong with them.
2) We will provide maintenance for a lifetime and charge for the raw materials only.

2. Technology Training
1) We provide the technology training for free, which contains the operation training and maintenance
2) training in the factory.
3) We will send our engineers to your country by negotiation.

3. Maintenance and Consultation
1) We provide full maintenance for a lifetime and charge for the raw materials only.
2) We also provide lifetime consultation by E-mail, Skype, WhatsApp or other ways for free.

4. Documents and Certification
1) We provide the operation manual, software, test report and so on.
2) We can also provide all kinds of certification such as CE, LVD, RoHS and so on.

5. CAD Drawing and Fixing
1) We provide CAD drawing on how to fix up the display for free and some other expert suggestion.
2) We will send our engineers to your place if we are expected after our negotiation.

6. Additional Service
1) We provide you the forwarding information, and some other information such as flight box, structure





FAQ

1. Is the product customizable? Yes, we can customize the product according to customers' needs, you just need to provide the requirements details.

2. Do you test all your goods before delivery? Yes, we have 100% test before delivery.

3. How about your delivery time? Generally, it will takes about 10-15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

4. What is your terms of payment? T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

5. What is your terms delivery?
EXW, FOB, CFR, CIF, DDP, DDU...
