Place of Origin: | CHINA |
Brand Name: | SCXK |
Certification: | CB,CE,ROHS,FCC,SASO |
Model Number: | SMD-P3 |
Minimum Order Quantity: | negotiation |
---|---|
Price: | negotiation |
Packaging Details: | wooden case,flight case,it is up to you |
Delivery Time: | 7-10 working days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 5000 sqm month |
Lamp Size: | 2121 | Resolution/mm: | 3 |
---|---|---|---|
Pixel Configuration: | RGB 3 In 1 | Pixel Density/pixels/m²: | 111111/m² |
Module Size/mm: | 192x192 | Scanning Mode: | 1/13 |
Refresh Frequency: | >3000Hz | Warranty: | 3 Years |
High Light: | full color led signs outdoor,full color outdoor led display |

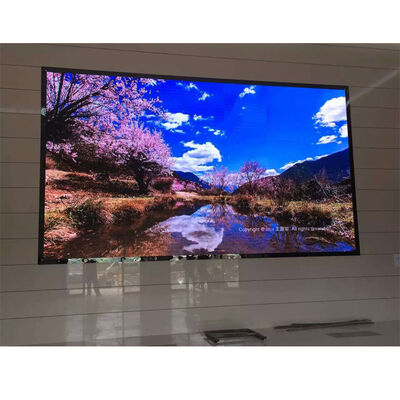

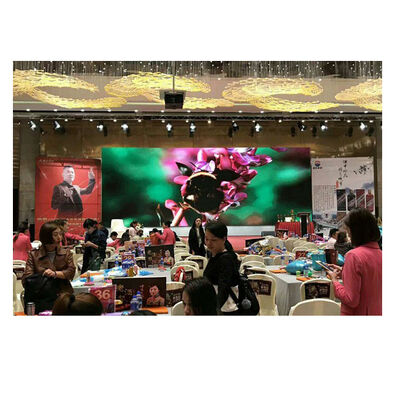

HD P3 576 X 576mm indoor Rental LED Display Screen For Events
♦ Features
1, Seamless connection.
2, Special design for the mask to realize higher contrast and larger viewing angle.
3, Signal backup and power backup.
4, Brightness and chromaticity calibration.
♦ Ultra Slim and light weight
die casting aluminum cabient
size: 576x576mm
Thickness: 8cm
One hand lifting available
♦ Product specification
indoor SMD 3 | ||||||||||||||
Lamp size | 2121 | |||||||||||||
Resolution/mm | 3 | |||||||||||||
Pixel configuration | RGB 3 in 1 | |||||||||||||
Pixel density/pixels/m² | 111111/m² | |||||||||||||
Module resolution | 64x64 | |||||||||||||
Module size/mm | 192x192 | |||||||||||||
View distance | ≥2m | |||||||||||||
Single point brightness adjust | Can be added | |||||||||||||
Single point color adjust | Can be added | |||||||||||||
White balance brightness | >2500cd/㎡ | |||||||||||||
Color temperature | 6500K-9500K | |||||||||||||
Horizontal view angle | 120(degrees) | |||||||||||||
Vertical view angle | 60(degrees) | |||||||||||||
Signal Process bit | 10 or 14 bit | |||||||||||||
Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | |||||||||||||
Control distances | Internet cable:100m, multimembrane:500m, monofilm:5km | |||||||||||||
Driving mode | Constant driving current | |||||||||||||
Scanning mode | 1/13 | |||||||||||||
Frame rate | 60Hz | |||||||||||||
Refresh frequency | >3000Hz | |||||||||||||
Control mode | Computer synchronous | |||||||||||||
Brightness adjusted range |
Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
|||||||||||||
Out of control point | <1/10000 | |||||||||||||
Working hours | ≥72hours | |||||||||||||
Mean Time Between Failure | >5000hours | |||||||||||||
Life time | 100000hours | |||||||||||||
Life-all-white(brightness halving) | 50000hours | |||||||||||||
Environment temperature range | Operating temperature range: -20-45℃ Storing temperature range: -30-65℃ | |||||||||||||
Maximum power:/㎡ | <1100W | |||||||||||||
Average power:/㎡ | <280W | |||||||||||||
Self-check technology |
LED spot self-check, communications check, power check, temperature monitor(need customization) |
|||||||||||||
Remote monitoring |
Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
|||||||||||||
Software environment | WindowsNT,Windows1999,WindowsXP | |||||||||||||
Luminous point width between centres | Deviation<3% | |||||||||||||
Brightness uniformity | <10% | |||||||||||||
Color uniformity(chromaticity coordinate) | ±0.003 | |||||||||||||
Power supply request | AC85-264V(50Hz-60Hz) | |||||||||||||
Contrast | (1000:1) | |||||||||||||
System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | |||||||||||||
Humidity(working) | working:10-95% | |||||||||||||
Humidity(storing) | storing:10-95% |
♦ About us:
Established in 2005, clients cover more than 50 cuntries, Mainly USA, Europe, dubai, north and mid america, south america, asia. As a high-tech enterprise integrated with scientific research, design, production, maintenance, sales and system integration, we have a professional high-quality technical R & D team,rich experienced engineers and professional product development and design engineers,excellent marketing team, pre and after-sales 24 hours service. Even face with harshest environment,we can carefully choose different suitable materials and make the best offer.
♦ Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing
Special Performance
Accessories
Advantage
Ultra-light---lighter 40% than aluminum die-csting cabinet
Super slim---high-strength,more slim than aluminum in the design,thiner around 30%
Fast cooling---wxcellent heat dissipation perormance to protet the modular circuit
Anti-interference---special anti electromagnetic interference function
High strength---support the weight of 300kg through tension test,more strength than aluminum
Easy installation---installed by quick lock for 20s only
High precision---seamless splicing though CNC machining
High universality---can be processed according to module drawing,used for outdoor and indoor
Easy maintenance---can be maintained form front side
High cost-effective---large-scale production,complete production & supply chain
Our Service
♦ Our contact
Our team will be forever here to offer you full supports
Contact Person: BOSCO
Tel: +8615177780539
