Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China（Mainland） |
| Brand Name: | SCXK |
| Certification: | CE，ISO，FCC，UL |
| Model Number: | SCXK-P5 |
| Minimum Order Quantity: | Customized |
|---|---|
| Price: | 500-600USD/sqm |
| Packaging Details: | Wooden and flight cases,it's up to you. |
| Delivery Time: | 12-15 working days after receiving your down payment. |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 5000sqms/month |
| Type: | Full Color Led Display | Application Place: | Indoor |
|---|---|---|---|
| Kind Of Cabinets: | Iron/Die Casting Cabinet | Module Size: | 320*160MM |
| Cabinet Size: | 640*640MM | Pixel Density: | 40000dots/sqm |
| Waterproof: | IP34 | Resolution: | 64*32 |
| Brightness: | 1200cd/sqm | Pixel Pitch: | 5MM |
| Certificate: | CE，ISO，FCC，UL | ||
| Highlight: | rgb led curtain,led curtain screen |
||

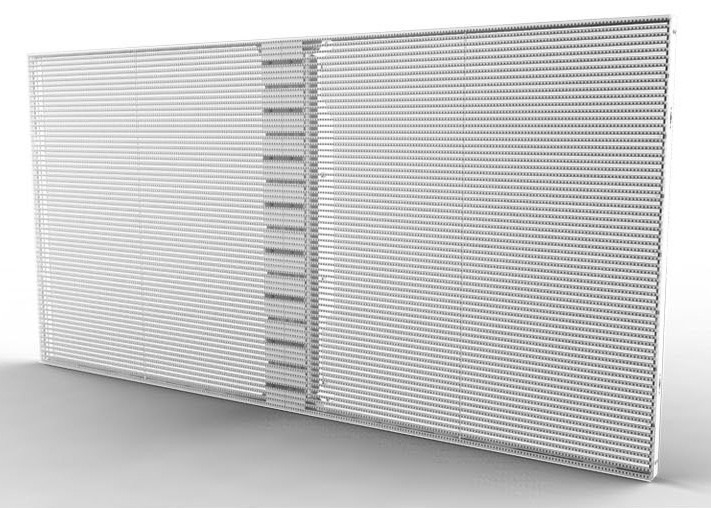

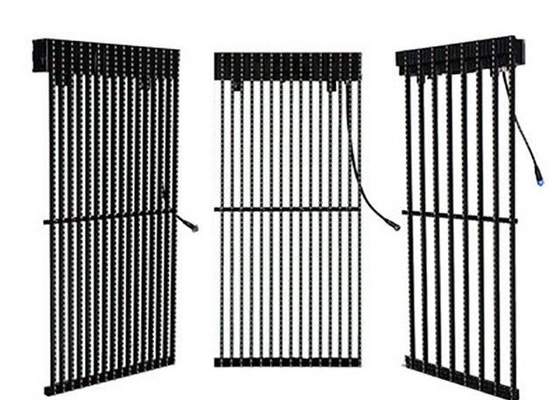

RGB 3 in 1 High resolution Curtain LED Display 5MM Pixel Pitch SMD5050,Full Color Energy Conservation
Our service:
1. Your inquiry about our products or prices will be responded within 24 hours.
2. Well-trained and experienced staff will answer all your inquiries in fluent English.
3. OEM and ODM, any customized screen you want, we can help you design and put into the product.
4. Provide distributors for your unique design and some of our current models.
5. Protect your sales area, design ideas and all private information.
Specifications of product:
| Indoor P5 LED screen Display | |||||
| Resolution/mm | 5 | ||||
| Pixel configuration | 1R1G1B | ||||
| Pixel density/pixels/m² | 40000/square meter | ||||
| Module resolution | 64*32mm | ||||
| Module size/mm | 320*160mm | ||||
| View distance | 5-100m | ||||
| Single point brightness adjust | Can be added | ||||
| Single point color adjust | Can be added | ||||
| White balance brightness | >1200cd/square meter | ||||
| Color temperature | 6500K-9500K | ||||
| Horizontal view angle | 120(degrees) | ||||
| Vertical view angle | 60(degrees) | ||||
| Signal Process bit | 10 or 16bit | ||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | ||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | ||||
| Driving mode | Constant driving current | ||||
| Scanning mode | 1/16 | ||||
| Fresh rate | 60Hz | ||||
| Refresh frequency | >3000Hz | ||||
| Control mode | Computer synchronous | ||||
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted | ||||
| 255 steps. No grey loss | |||||
| Out of control point | <1/10000 | ||||
| Working hours | ≥72hours | ||||
| Mean Time Between Failure | >5000hours | ||||
| Life time | 100000hours | ||||
| Life-all-white(brightness halving) | 50000hours | ||||
| Environment temperature range | Operating temperature range: -20-45℃ | ||||
| Self-check technology | LED spot self-check, communications check, power check, | ||||
| temperature monitor(need customization) | |||||
| Remote monitoring | Remote supervision and control, record potential fault, | ||||
| send out warning signs to the operators.(need customization) | |||||
| Software environment | WindowsNT,Windows1999,WindowsXP | ||||
| Luminous point width between centres | Deviation<3% | ||||
| Brightness uniformity | <10% | ||||
| Waterproof | IP34 | ||||
| Color uniformity(chromaticity coordinate) | ±0.003 | ||||
| Power supply request | AC85-264V(50Hz-60Hz) | ||||
| Contrast | (1000:1) | ||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | ||||
| Humidity(working) | working:10-95% | ||||
| Humidity(storing) |
storing:10-95% |
||||
1. Our company believes that high quality products help us to develop long-term customers.
2. The solution that suit the the customer is the best.
3. The best and in-time after-sales service will be provided to save the clients' miantain cost, time and energy.
The payment details:
1.We can accept the T/T,Western Union,30% in advance,balance 70% paied before the delivery.
2.Delivery time(lead time): 12-15 working days after we receive down payment.
3.Warranty: Guaranty period for free maintenance within 2 years after delivery.
4..Free training: You can send engineers to our factory for training who have knowledge of electronics. We will provide free training about how to run, maintain and repair LED display.
5.Technical Support: We can send our engineer to your city for guidance,but you must help us to get visa and pay related cost such as round-trip fly ticket,hotel,food other cost when our engineer arrive at your city.You also pay our engineer USD100.00/day/person.
RFQ:
|
Q1: What's the warranty of your LED Display Screen ? A1: We have a 3-year warranty for our led display screen, and 100,000 hours life span of the led lamps. |
|
Q2: What about your pre-sale service and post-sale service? A2: For pre-sale service: We have a professional sales team and 13 years technical team who are willing to answer your question 24/7. We can offer a whole complete solution for your project! |
|
Q3: Whats your payment term? How long it takes to delivery? A3: We accept T/T and L/C, For both T/T and L/C, At least 30% deposit in advance, and the rest 70% before delivery. |
|
Q4: What's the control system? A4: For synchronization control: We use Nova, Linsn Or Colorlight control system. |
|
Q5: How can you ensure the led display product quality? A5: Our led display screen quality is our core competence, for 8 years, what we rely on. |
Welcome to visit our website and inquire us more info,waiting for you all the time!!!
