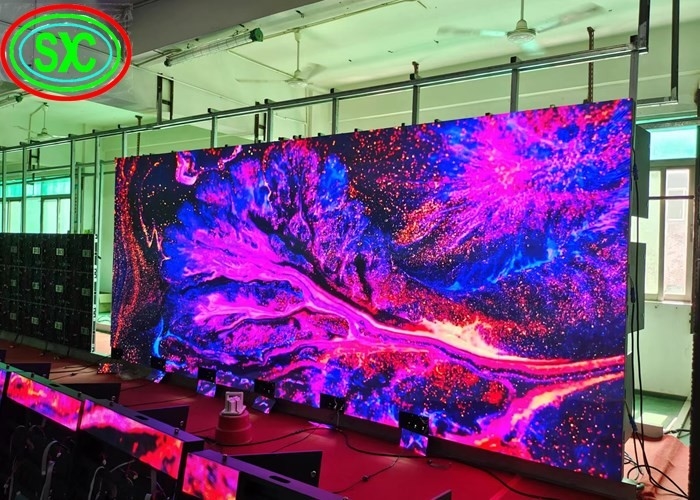

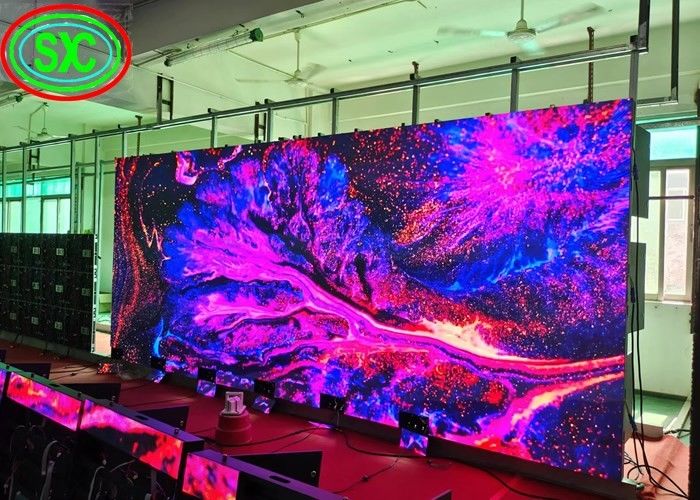

P2.5 GOB Led Display Waterproof Anti-Collision Video Wall indoor full color led display

P2.5 GOB Led Display Waterproof Anti-Collision Video Wall indoor full color led display

  • P2.5 GOB Led Display Waterproof Anti-Collision Video Wall indoor full color led display
  • P2.5 GOB Led Display Waterproof Anti-Collision Video Wall indoor full color led display
  • P2.5 GOB Led Display Waterproof Anti-Collision Video Wall indoor full color led display
P2.5 GOB Led Display Waterproof Anti-Collision Video Wall indoor full color led display
Product Details:
Place of Origin: China
Brand Name: SCXK
Certification: CE/ROHS/FCC/ISO/UL
Model Number: SMD P2.5
Payment & Shipping Terms:
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: flight case, wooden case, carton, it is up to you.
Delivery Time: 7-10 working days after receive your payment
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5000sqm per month
Contact Now
Detailed Product Description
Product Name: P2.5 High Resolution GOB Led Display Waterproof Anti-Collision Video Wall Protect Ip: Waterproof IP65
Pixel Configuration: SMD 3in1 Black Light Led Chip: Epistar
Led Type: SMD Refresh Rate:: ≥4800HZ
High Light:

led full color screen

,

indoor led billboard

P2.5 High Resolution GOB Led Display Waterproof Anti-Collision Video Wall



Features



waterproof
dustproof
moisture proof
anti-collision
anti-UV
avoid LEDs fall off

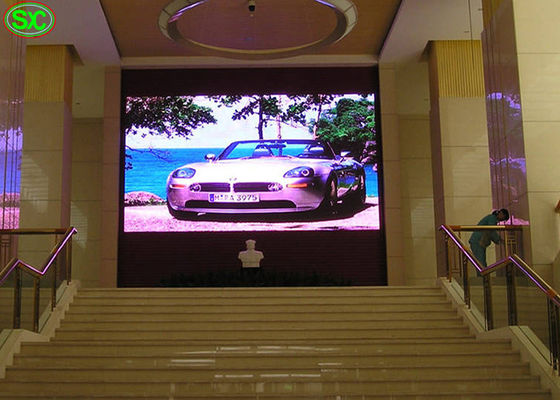

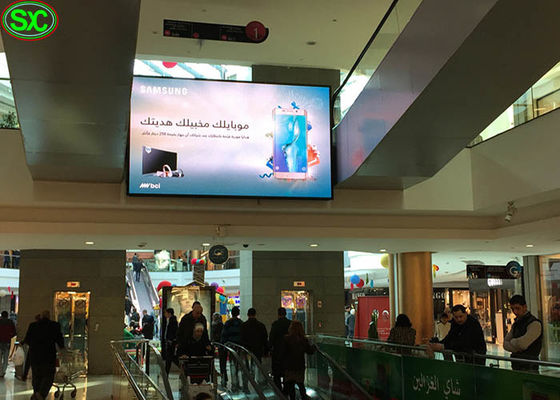

Application



can be widely used in bar, club, theatre, theatre, multi-function hall, coffee shop, hotel, stage performances, music hall, commercial buildings, airports, shopping malls and other places



♦ Product specification

indoor  SMD P2.5

Lamp size

2121

Resolution/mm

2.5

Pixel configuration

RGB  3 in 1

Pixel density/pixels/m²

160000/m²

Module resolution

64x64

Module size/mm

160*160

View distance

≥0.5m

Single point brightness adjust

Can be added

Single point color adjust

Can be added

White balance brightness

>2500cd/㎡

Color temperature

6500K-9500K

Horizontal view angle

120(degrees)

Vertical view angle

60(degrees)

Signal Process bit

10 or 14 bit

Grey process

1024x1024x1024 16834x16834x16834 65536x65536x65536

Control distances

Internet cable:100m, multimembrane:500m, monofilm:5km

Driving mode

Constant driving current

Scanning mode

1/16

Frame rate

60Hz

Refresh frequency

>4200Hz

Control mode

Computer synchronous

Brightness adjusted range

Manual, automatic operation, stepless continuous adjusted

255 steps. No grey loss

Out of control point

<1/10000

Working hours

≥72hours

Mean Time Between Failure

>5000hours

Life time

100000hours

Life-all-white(brightness halving)

50000hours

Environment temperature range

Operating temperature range: -20-45℃ Storing temperature range: -30-65℃

Maximum power:/㎡

<1000W

Average power:/㎡

<280W

Self-check technology

LED spot self-check, communications check, power check,

temperature monitor(need customization)

Remote monitoring

Remote supervision and control, record potential fault,

send out warning signs to the operators.(need customization)

Software environment

WindowsNT,Windows1999,WindowsXP

Luminous point width between centres

Deviation<3%

Brightness uniformity

<10%

Color uniformity(chromaticity coordinate)

±0.003

Power supply request

AC85-264V(50Hz-60Hz)

Contrast

(1000:1)

System protection

Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration

Humidity(working)

working:10-95%

Humidity(storing)

storing:10-95%



Waterproof design

P2.5 GOB Led Display Waterproof Anti-Collision Video Wall indoor full color led display 0



♦ Production process:

1) Incoming Inspection→2) SMD→3) Plug-in

→4) Wave Soldering→5) After Welding→6) Testing

→7) Semi Finished Aging→8) Module Assembly

→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing



P2.5 GOB Led Display Waterproof Anti-Collision Video Wall indoor full color led display 1



♦ Our advantages

Professional Manufacturer of led display

1. OEM service,No MOQ

2. Easy installation,regular items in Stocks

3. Offering free design drawing as requested.

4. Remote controlling and adjusting are available.

5. Wooden case or flight case,you are the boss.

6. Your reply will be replied within 24 hours.

7. Fast delivery: Usually 6-8 working days

8. Excellent R&D team,factory Price and assure you quality goods.



♦ Packaging and shipping

Wooden case or flight case package are available.

Shipping by sea,air or DHL,multiple shipping ways for your choice.



♦ Methods for Quality Assurance

a. Aging
1) 100% fully test
2) Condition: 72 hours with 256 grey level

b. Vibration Testing
Condition: 3-5 mins up and down in 5mm range



♦ Why choose us:

Continues Quality

With more than 12 years experience in led display producing,equipments are updated regularly.What’s

more,unique standardized and module production ensure our products continuous quality.



Competitive Price

With large scale production capacity and professional production technology,our company have built

effective modular production.We always stick to promote the technical innovation and reduce cost to

benefit customers.



Fast Delivery

Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency

inventory will be used to maintain your uninterrupted supply of the products.



Perfect Service

Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to

you.

After-sales:We will track the products usage and then constantly perfect our products.
