Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China |
| Brand Name: | SCXK |
| Certification: | CE/ROHS/FCC/ISO/UL |
| Model Number: | SMD p3 |
| Minimum Order Quantity: | 10sqm |
|---|---|
| Price: | negotiation |
| Packaging Details: | flight case, wooden case, carton, it is up to you. |
| Delivery Time: | 3-16 working days after receive your payment |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 4600 sqm per month |
| Application:: | Indoor Advertising | Color: | Full Color |
|---|---|---|---|
| Panel Size:: | 192*192mm | Module Resolution:: | 64*64dots |
| Scan Mode:: | 1/32scan | Warranty:: | 1-2years |
| Certificate:: | CE CCC Rohs ISO9001 BIS | Refresh Rate:: | 1920-3840Hz/s |
| Cabinet Size:: | 576x576mm | Life Span:: | 100000hours |
| High Light: | 192x192mm outdoor led display,P3 outdoor rental led display |
||
SCX LED Die Casting Aluminum Cabinet Outdoor Rental LED Advertising Panel P3 576*576mm indoor led display led screen
1.High bright 3 in 1 LED SMD lamps with best plastic package suite are not easy to be damaged and ensures the best viewing angle.
2.Constant current chip driving reduces the power consumption and prompts the stability,Simple modular design is low cost and easy to maintain.
3.Can undertake single point,single lamp maintenance,the cost is low.
4.Neat appearance,light weight,small size and safe 5V low voltage power supply system all make the module more attractive.
5.Due to its locating holes and 4 in bracket design,it can be used on indoor big screen.
6.Besides,high definition effect comes with uniform luminance and soft color is suitable for indoor close range viewing.MOQ and Sample
1.We welcome sample order to test and check quality .Mixed samples are acceptable.
2.Low MOQ,1 piece for sample checking is available.
3.Please inform us formally before our production and confirm the design firstly based on our sample.
♦ Product specification
|
indoor /outdoor SMD P3 |
||||||||||||||
|
Lamp size |
2020 |
|||||||||||||
|
Resolution/mm |
3 |
|||||||||||||
|
Pixel configuration |
RGB 3 in 1 |
|||||||||||||
|
Pixel density/pixels/m² |
111111/m² |
|||||||||||||
|
Module resolution |
64x64 |
|||||||||||||
|
Module size/mm |
192x192 |
|||||||||||||
|
View distance |
≥2m |
|||||||||||||
|
Single point brightness adjust |
Can be added |
|||||||||||||
|
Single point color adjust |
Can be added |
|||||||||||||
|
White balance brightness |
>2500cd/㎡ |
|||||||||||||
|
Color temperature |
6500K-9500K |
|||||||||||||
|
Horizontal view angle |
120(degrees) |
|||||||||||||
|
Vertical view angle |
60(degrees) |
|||||||||||||
|
Signal Process bit |
10 or 14 bit |
|||||||||||||
|
Grey process |
1024x1024x1024 16834x16834x16834 65536x65536x65536 |
|||||||||||||
|
Control distances |
Internet cable:100m, multimembrane:500m, monofilm:5km |
|||||||||||||
|
Driving mode |
Constant driving current |
|||||||||||||
|
Scanning mode |
1/16 |
|||||||||||||
|
Frame rate |
60Hz |
|||||||||||||
|
Refresh frequency |
>4200Hz |
|||||||||||||
|
Control mode |
Computer synchronous |
|||||||||||||
|
Brightness adjusted range |
Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
|||||||||||||
|
Out of control point |
<1/10000 |
|||||||||||||
|
Working hours |
≥72hours |
|||||||||||||
|
Mean Time Between Failure |
>5000hours |
|||||||||||||
|
Life time |
100000hours |
|||||||||||||
|
Life-all-white(brightness halving) |
50000hours |
|||||||||||||
|
Environment temperature range |
Operating temperature range: -20-45℃ Storing temperature range: -30-65℃ |
|||||||||||||
|
Maximum power:/㎡ |
<1000W |
|||||||||||||
|
Average power:/㎡ |
<280W |
|||||||||||||
|
Self-check technology |
LED spot self-check, communications check, power check, temperature monitor(need customization) |
|||||||||||||
|
Remote monitoring |
Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
|||||||||||||
|
Software environment |
WindowsNT,Windows1999,WindowsXP |
|||||||||||||
|
Luminous point width between centres |
Deviation<3% |
|||||||||||||
|
Brightness uniformity |
<10% |
|||||||||||||
|
Color uniformity(chromaticity coordinate) |
±0.003 |
|||||||||||||
|
Power supply request |
AC85-264V(50Hz-60Hz) |
|||||||||||||
|
Contrast |
(1000:1) |
|||||||||||||
|
System protection |
Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration |
|||||||||||||
|
Humidity(working) |
working:10-95% |
|||||||||||||
|
Humidity(storing) |
storing:10-95% |
|||||||||||||

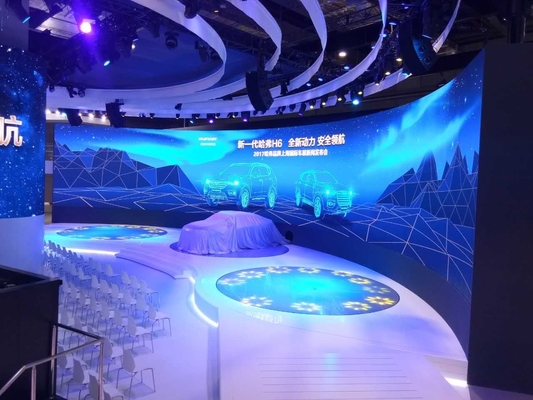

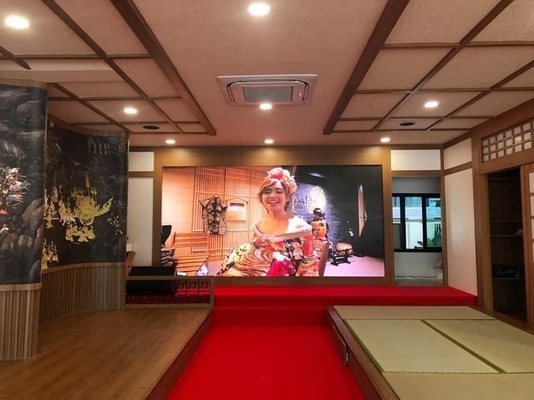

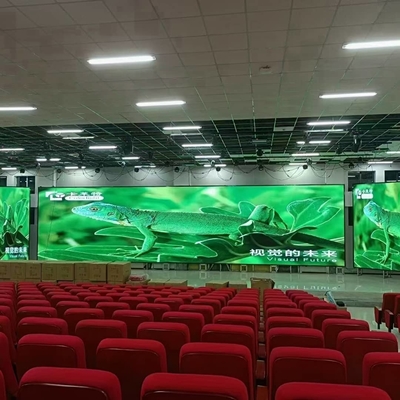

Our case
♦ Our advantages
Professional Manufacturer of led display
1. OEM service,No MOQ
2. Easy installation,regular items in Stocks
3. Offering free design drawing as requested.
4. Remote controlling and adjusting are available.
5. Wooden case or flight case,you are the boss.
6. Your reply will be replied within 24 hours.
7. Fast delivery: Usually 6-8 working days
8. Excellent R&D team,factory Price and assure you quality goods.
♦ Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
♦ Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing
a. Aging
♦ Methods for Quality Assurance
1) 100% fully test
2) Condition: 72 hours with 256 grey level
b. Vibration Testing
Condition: 3-5 mins up and down in 5mm range

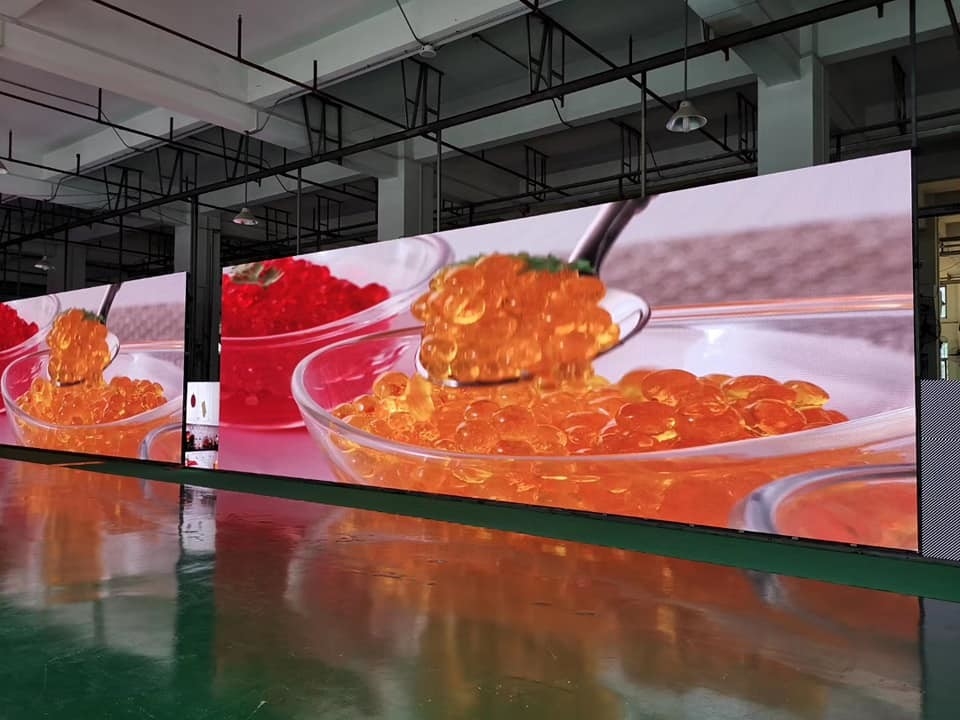

our workshop
♦ Why choose us:
Continues Quality
With more than 12 years experience in led display producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products continuous quality.
Competitive Price
With large scale production capacity and professional production technology,our company have built
effective modular production.We always stick to promote the technical innovation and reduce cost to
benefit customers.
Fast Delivery
Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the products.
Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to
you.
FAQ
1.What's your advantage? A: Honest business with competitive price and professional service on export process.
2. How I believe you? A : We consider honest as the life of our company, we can tell you the contact information of our some other clients for you to check our credit. Besides, there is trade assurance from Alibaba, your order and money will be well guaranteed.
3.Can you give warranty of your products? A: Yes, we extend a 100% satisfaction guarantee on all items. Please feel free to feedback immediately if you are not pleased with our quality or service.
4.Where are you? Can I visit you? A: Sure,welcome to you visit our factory at any time.
5.How about the delivery time? A: Within 15-35 days after we confirm you requirement. 6.what kind of payment does your company support? A: T/T, 100% L/C at sight, Cash, Western Union are all accepted if you have other payment,please contact me.
