Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China(Mianland) |
| Brand Name: | SCXK |
| Certification: | CE,RoHS,FCC,CCC,SAA,TUV,UL |
| Model Number: | SCXK-P2 |
| Minimum Order Quantity: | Negotiations |
|---|---|
| Price: | Negotiations |
| Packaging Details: | Wooden and flight cases,it's up to you. |
| Delivery Time: | 7-10 working days after payment |
| Payment Terms: | Western Union, T/T |
| Supply Ability: | 5000sqs/month |
| Brand Name: | RGB LED Display | Brightness: | ≥1200cd/sq |
|---|---|---|---|
| Certifications: | CE,RoHS,FCC,CCC,SAA,TUV,UL | LED Chip: | Epistar |
| Waterproof: | IP34 | Operation Power: | 220V 60HZ |
| Module Size: | 256*128mm | Cabinet Size: | 512*512mm |
| Control System: | LSN | Pixel Density: | 250000dots/sq |
| Resolution: | 128*64 | Scan Mode: | 1/32 |
| LED Type: | SMD2121 | Indoor Options: | P1.667,P1.923,P2,P2.5,P3,P3.91,P4,P5,P6,P10... |
| Highlight: | 256*128mm led wall display,IP34 led video wall panels |
||

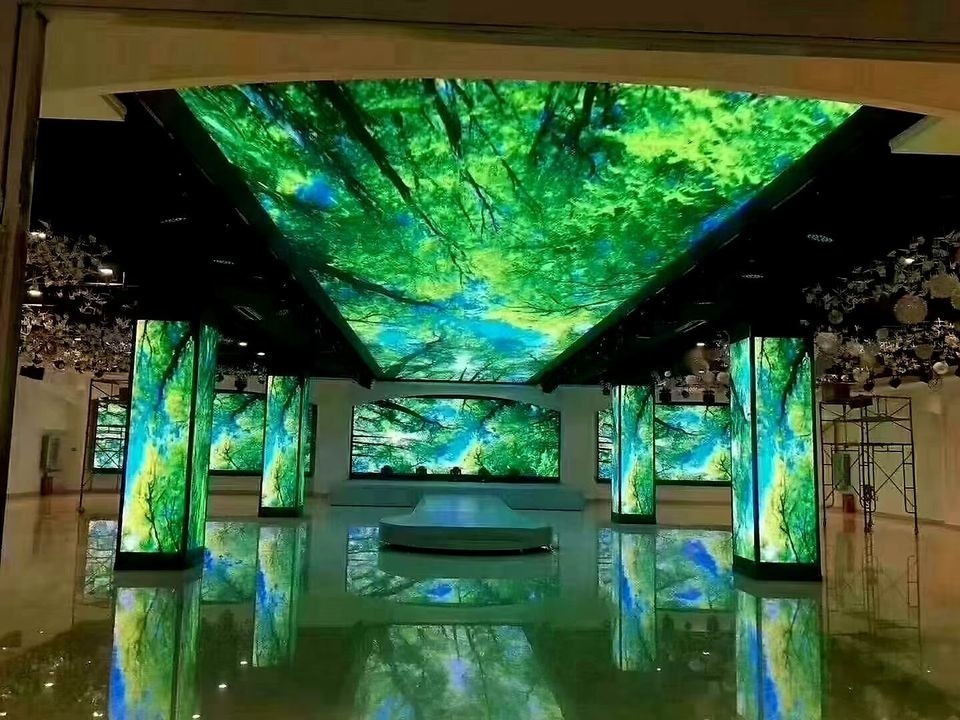

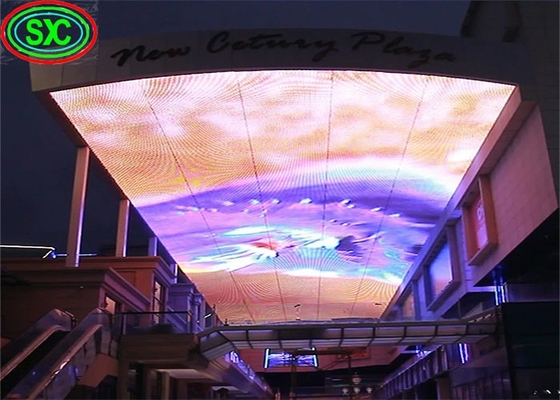

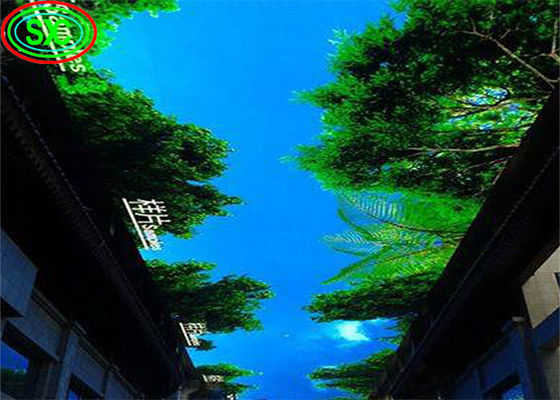

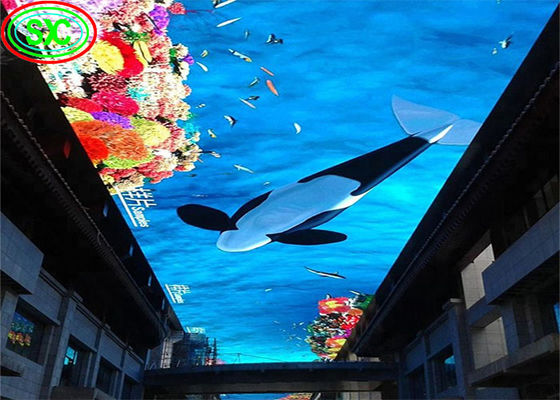

Ceiling Hanging Light weight LED Display / LED Sky Screen / Big LED Screen
Specifications :
| Indoor P2 LED Display | |||||
| Resolution/mm | 2 | ||||
| Pixel configuration | 1R1G1B | ||||
| Pixel density/pixels/m² | 250000/square meter | ||||
| Module resolution | 128x64 | ||||
| Module size/mm | 256x128 | ||||
| View distance | 14-300m | ||||
| Single point brightness adjust | Can be added | ||||
| Single point color adjust | Can be added | ||||
| White balance brightness | >1200cd/square meter | ||||
| Color temperature | 6500K-9500K | ||||
| Horizontal view angle | 120(degrees) | ||||
| Vertical view angle | 60(degrees) | ||||
| Signal Process bit | 10 or 16bit | ||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | ||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | ||||
| Driving mode | Constant driving current | ||||
| Scanning mode | 1/32 SCANNING | ||||
| Frame rate | 60Hz | ||||
| Refresh frequency | >3000Hz | ||||
| Control mode | Computer synchronous | ||||
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted | ||||
| 255 steps. No grey loss | |||||
| Out of control point | <1/10000 | ||||
| Working hours | ≥72hours | ||||
| Mean Time Between Failure | >5000hours | ||||
| Life time | 100000hours | ||||
| Life-all-white(brightness halving) | 50000hours | ||||
| Environment temperature range | Operating temperature range: -20-45℃ | ||||
| Self-check technology | LED spot self-check, communications check, power check, | ||||
| temperature monitor(need customization) | |||||
| Remote monitoring | Remote supervision and control, record potential fault, | ||||
| send out warning signs to the operators.(need customization) | |||||
| Software environment | WindowsNT,Windows1999,WindowsXP | ||||
| Luminous point width between centres | Deviation<3% | ||||
| Brightness uniformity | <10% | ||||
| Color uniformity(chromaticity coordinate) | ±0.003 | ||||
| Power supply request | AC85-264V(50Hz-60Hz) | ||||
| Contrast | (1000:1) | ||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | ||||
| Humidity(working) | working:10-95% | ||||
| Humidity(storing) | storing:10-95% | ||||
Product information
Applications:
1)Airport Full Color Indoor LED Dispalys
2)Train Station Indoor Full Color LED Displays
3)Entertainment Bar Indoor Full Color LED Screen
4)Statium Indoor Full Color LED Display
5)Museum Full Color Indoor LED Display
6)Car Exhibition LED Display
7)Conference Room Indoor Full Color LED Video Display
8)Shopping Mall Indoor Full Color LED Display
Advantage
1. High contrast: Consistent deep black and patented masking make the contrast higher and the colors more vivid.
2. Easy installation: Modular design makes installation and maintenance easier.
3. Excellent material: Using the same grade imported LED chips from Taiwan, the United States or Japan, high-quality driver IC, and low-noise power supply, the screen can work smoothly in an environment of -40~60.
4. Multiple formats: Customers can choose the screen display format at will, which can support TXT, graphics, pictures, animations and video programs.
5. Painting: Painting can protect PCB and related components from environmental erosion, and has good high and low temperature resistance, as well as excellent properties such as insulation, moisture resistance, wrinkle resistance, dust resistance, and corrosion resistance.
6. High shockproof performance: The cabinet must be tested for shockproof performance before shipment to avoid poor contact due to loose screws.
High shockproof performance: The cabinet must be tested for shockproof performance before shipment to avoid poor contact due to loose screws or disconnected cables after long-term line transportation.
7. High waterproof performance: The cabinet must be waterproofed during the production process, and its front and back can be completely waterproof, and can work smoothly outdoors all day long.
The Shipping Details
____________________________________FAQ_________________________________________
1.Except this model, are there any other models?
---yes, For indoor led screen we have p1.25,p1.56,p1.67,p1.87,p2, p2.5 p3 ,p3.91, p4 ,p4.81, p5 ,p6,p8,p10
For outdoor led screen we have p3,p3.91,p4,p4.81,p5, p5.95,p6,p6.67,p8, p10
2.Are you factory? and your warranty?
yes we are 10 years factory, 2 years warranty and lifetime maintenance
3.What's the function of your led screen?
It supports videos, flash, WAV/MIDI, PPT, images and so on
4.What's your delivery time?
Wthin 15-25 days after receiving deposit
5.What's your package and shipping way?
Goods are packed with wooden case or flight case; delivered by air or sea
Welcome to visit our website and inquire us more info,waiting for you all the time!!!
Contact Person: Lillian seori
Tel: +8619386814677
