Place of Origin: | China(Mainland) |
Brand Name: | SCX |
Certification: | FCC,UL,CE,ISO |
Model Number: | SCX-P3.91 |
Minimum Order Quantity: | 5sqm |
---|---|
Price: | 999-1111USD/sqm |
Packaging Details: | Carton,wooden and flight cases. |
Delivery Time: | 12-15 working days. |
Payment Terms: | Western Union, T/T |
Supply Ability: | 5000sqm/month |
Waterproof: | IP43 | Installation: | Transparent LED |
---|---|---|---|
Pixel Pitch: | 3.91mm | Cabinet Size: | 1000*500mm |
Brightness: | 2500nits | Refresh Rate: | 3840HZ |
Drive Mode: | 1/8 | Warranty: | 2 Years |
Certificate: | FCC,UL,CE,ISO | ||
Highlight: | P3.91 transparent glass led screen,Facade glass wall led screen |

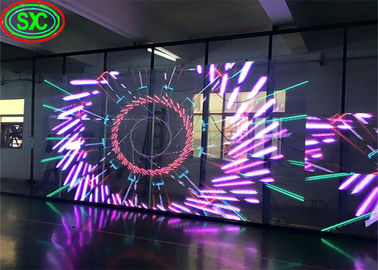

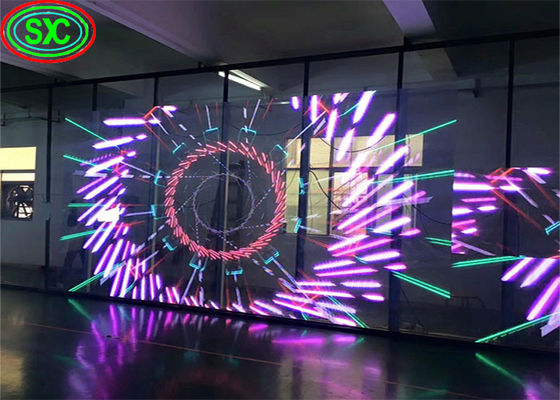

Custom large P3.91 led media facade Energy saving full color HD LED video display screen outdoor transparent glass
Parameter description:
Resolution/mm | 3.91 |
Pixel configuration | 1R1G1B |
Pixel density/pixels/m² | 32768dots/square meter |
Module size/mm | 1000x500 |
View distance | 4-50m |
Single point brightness adjust | Can be added |
Single point color adjust | Can be added |
White balance brightness | 2500cd/square meter |
Color temperature | 6500K-9500K |
Horizontal view angle | 120(degrees) |
Vertical view angle | 60(degrees) |
Signal Process bit | 10 or 16bit |
Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 |
Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km |
Driving mode | Constant driving current |
Scanning mode | 1/8 |
Frame rate | 60Hz |
Refresh frequency | 3840Hz |
Control mode | Computer synchronous |
Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted |
255 steps. No grey loss | |
Out of control point | <1/10000 |
Working hours | ≥72hours |
Mean Time Between Failure | >5000hours |
Life time | 100000hours |
Life-all-white(brightness halving) | 50000hours |
Environment temperature range | Operating temperature range: -20-45℃ |
Maximum power:/square meter | <950W |
Average power:/square meter | <350W |
Self-check technology | LED spot self-check, communications check, power check, |
temperature monitor(need customization) | |
Remote monitoring | Remote supervision and control, record potential fault, |
send out warning signs to the operators.(need customization) | |
Software environment | WindowsNT,Windows1999,WindowsXP |
Luminous point width between centres | Deviation<3% |
Brightness uniformity | <10% |
Color uniformity(chromaticity coordinate) | ±0.003 |
Power supply request | AC85-264V(50Hz-60Hz) |
Contrast | (1000:1) |
System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration |
Humidity(working) | working:10-95% |
Humidity(storing) | storing:10-95% |
Why choose us?
1.Rich experience for more than 10 years;
2.Strict control quality and supervision;
3.Good price for high quality products;
4.Quick delivery time-after receiving your down payment we will make the delivery right soon;
5.Satisfied after sales service-we will reply you all the questions in 3 hours;
6.We will provide you the free technical supply;
Description:
* High Degree of Visibility
80% transparent see-through, so it is convenient for people inside and outside to look-through. The integrated LED lamps are very tiny and almost invisible from outside of the building.
* Compact Design and Light Weight
almost suitable for any glass wall building.The weight is only 18kg/sqm and minimizes the load to the glass wall.
* Ease of the Installation and Maintenance
No need to change any building structure. The modules can be stuck to the back of the glass wall by the special glue which presented by us. It needs only 10 second to install one module. Should any maintenance occurs, it only requires to do it at the indoor.
* Saving Money in Decoration for the Architecture
Since the LED glass wall makes the vivid decoration and advertising, it saves other lights to lighting up the building.
* Wide Application
The Glass Wall LED Screen can be applied wherever the glass wall existed such as commercial building,landmark,architecture, art center,shopping mall, super market, shain stores etc.

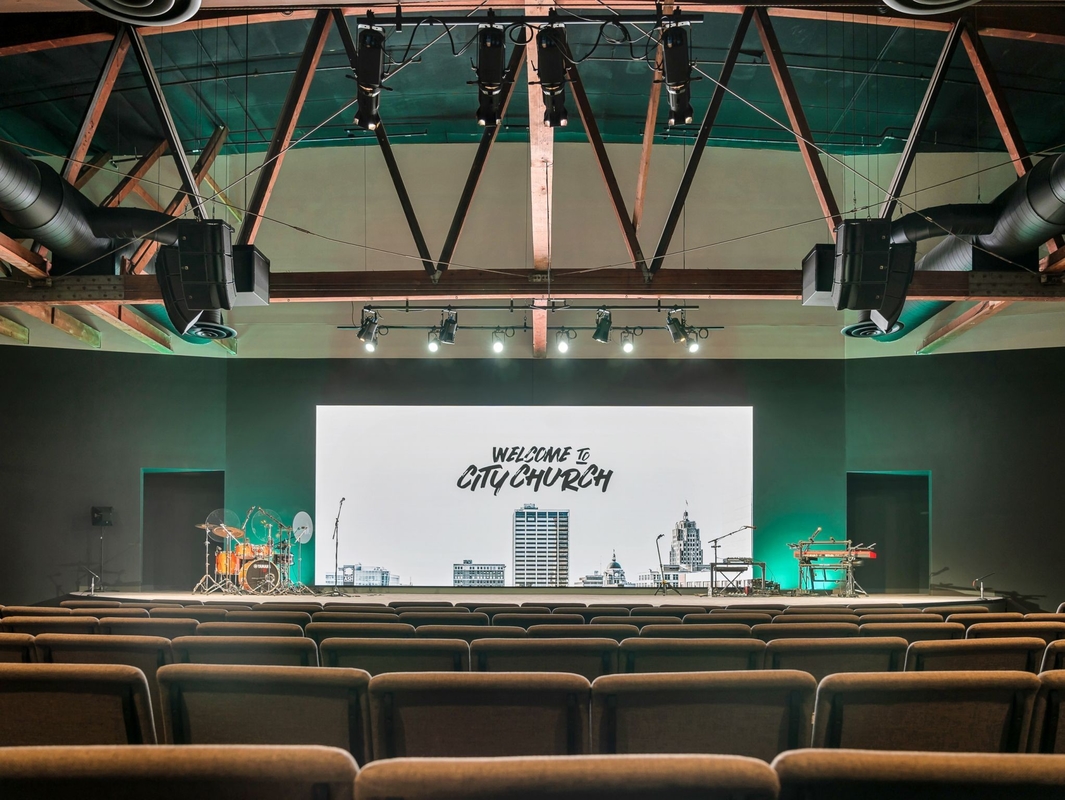

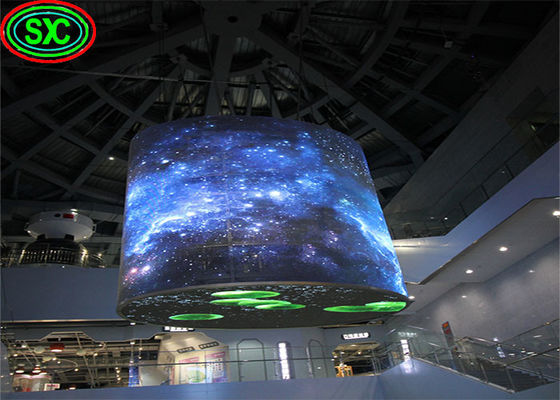

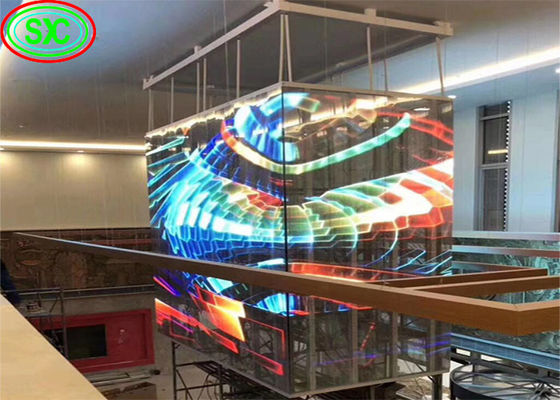

Our cases:
Our Company:
If you have interest,pls contact us in this way:
Contact Person: Lillian seori
Tel: +8619386814677
