SMD3535 7500cd/m2 transparent P7.82-15.628 Mesh LED display with competitive price

SMD3535 7500cd/m2 transparent P7.82-15.628 Mesh LED display with competitive price

  • SMD3535 7500cd/m2 transparent P7.82-15.628 Mesh LED display with competitive price
  • SMD3535 7500cd/m2 transparent P7.82-15.628 Mesh LED display with competitive price
  • SMD3535 7500cd/m2 transparent P7.82-15.628 Mesh LED display with competitive price
  • SMD3535 7500cd/m2 transparent P7.82-15.628 Mesh LED display with competitive price
  • SMD3535 7500cd/m2 transparent P7.82-15.628 Mesh LED display with competitive price
  • SMD3535 7500cd/m2 transparent P7.82-15.628 Mesh LED display with competitive price
SMD3535 7500cd/m2 transparent P7.82-15.628 Mesh LED display with competitive price
Product Details:
Place of Origin: China
Brand Name: SCXK
Certification: CE/ROHS/FCC/ISO/UL
Model Number: P7.82-15.628
Payment & Shipping Terms:
Minimum Order Quantity: 1sqm
Price: negotiation
Packaging Details: wooden case
Delivery Time: 5-10 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5000sqm per month
Contact Now
Detailed Product Description
Pixel Pitch(Level): 15.625mm Pixel Pitch(Vertical): 31.25mm
Pixel Composition: 1R1G1B Cabinet Size: 500x1000mm
Pixel Resolution: 4096dots/m2 Weight: 25kg/m2
Warranty: 3 Years
High Light:

P31.25 Full Color LED Display

,

SMD3535 Full Color LED Display

,

7500cd/m2 Transparent LED Wall

SMD3535 7500cd/m2 transparent P7.82-15.628 Mesh LED display with competitive price




LED Grille screen Features:

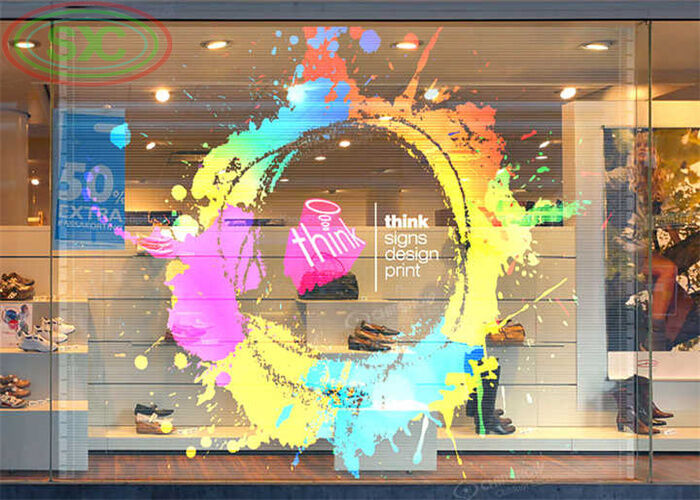

1,High Transparent rate,with stretch aluminum stripa design ,good cooling
2,Aluminum cabinet,only16kg /sqm,very light,transport&labor saving.
3,One cabinet ,one cable ,signal &power in one one interface.
4,Double -side IP 67 ,perfectly work in all weather conditions.
5,Front and rear maintenance,10s/unit maintain speed.
6,Dual backup power supply,if one of the power suppy do not work ,another one will keep working.
7,3parts for thr whole screen:cabiner +Frame+Steel Tube,quick andtool-free quickinstallation.

Product Description
Pixel Pitch
15.625mm(H*V)
Pixel Density
4096dots/m^2
LED Shape
SMD 3535
LED Configuration
1R1G1B
Module Size
1000mmx500mm
Driving Mode

1/2Scan,constant current
Cabinet Size
customized as the module size
Cabinet Weight
25kg/m^2
Brightness After Calibration
≥7500cd/m2
Service access
Rear
Contrast
1600:1
View Angle
140°(horz.), 140° (vert.)
Max Power Consumption
800 W/sq.m
Average Power Consumption
270 W/sq.m
Best viewing distance
16m-100m
Gray Scale
12-16bits for red,green,blue
Colors
16777216
Input voltage (AC)
110V ~ 240V
Frame Frequency
50Hz-75Hz
Refresh Rate
≥600Hz
Brightness Adjustment
0-100%
Gamma Correction
( -0.5 -- 5.0 )
Color Temperature
6500-9000K
Operation System
Win7&XP
Control Mode
Synchronization with PC
Stock Temperature
(-40℃~+85℃)
Operating Temperature
( -30℃~+50℃ )
Operating Humidity
10-90% RH
Life Span
100,000Hours
MTBF
≥10,000Hours
IP Rating(Front/Rear)
IP65
Flatness of the screen
1mm max
Control Distance
UTP CAT5E:100m,Multi-Mode Fiber:500m,Single-Mode Fiber:15km



SMD3535 7500cd/m2 transparent P7.82-15.628 Mesh LED display with competitive price 0
SMD3535 7500cd/m2 transparent P7.82-15.628 Mesh LED display with competitive price 1

Packing:
SMD3535 7500cd/m2 transparent P7.82-15.628 Mesh LED display with competitive price 2

Company profile
Shenzhen SCXK Electronic Co.,Ltd has the standard new factory, and about 100 employees. We have outstanding R&D department and after-sell service workers, and separately design ability. Our product mainly included led indoor full color display, led outdoor full color display, led wireless car used screen, transparent screen, poster screen etc. It can be used on the shopping mall, bank, bus station, train station, center of downtown, airport, school, factory, bus, taxi and so on. We adapt many methods and very good after-sell service to sell our product all over the world. Whenever and wherever we are, we always take the principle that is: professional makes good quality, good price product market to price product market to provide perfect product and service for our customers.
SMD3535 7500cd/m2 transparent P7.82-15.628 Mesh LED display with competitive price 3


Certificate
SMD3535 7500cd/m2 transparent P7.82-15.628 Mesh LED display with competitive price 4
Packaging and shipping
Shipping by sea,air or DHL,multiple shipping ways for your choice.
SMD3535 7500cd/m2 transparent P7.82-15.628 Mesh LED display with competitive price 5


Our service



Warranty
1.We guaratee all our display, modules, spare parts for TWO years.
2.We provide technology training for free, which contains the operation and maintenance training of the LED screens in the factory.
3.After warranty, we also can offer you the parts for replacement at our bottom price.
4.After sales, if you have any problem about our product, you can inform us by E-mail, we will reply you at once
when we get it and offer you a good solution to solve the problem.
5.We also could solve problems for you antil it recovers well by remote control!

Installation
1.We can assist the training and technical support for the customer in the factory, if the customer require so.
2.We could send our engineer to guide the installation to you. But the relavant cost should be paid by your esteemed company.
3.Our technicians will offer CAD Drawing to show how to install the LED Display rightly and fast, of course, if you need
