Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China |
| Brand Name: | SCXK |
| Certification: | CE/ROHS/FCC/ISO/UL |
| Model Number: | P6 |
| Minimum Order Quantity: | 16 sqm |
|---|---|
| Price: | negotiation |
| Packaging Details: | wooden case or flight case are available. |
| Delivery Time: | 3-16 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 5200 sqm per month |
| Application:: | Outdoor Advertising, Outdoor Advertising | Color:: | Full Color |
|---|---|---|---|
| Panel Size:: | 192*192 Mm | Brightness: | 5500- 7000 Cd/sqm |
| IP Grade:: | Front IP 65, Back IP 54 | Certificate:: | CE RoHS FCC Certifications |
| Use Voltage:: | AC 220V/110V±10% | Cabinet Size:: | 960*960 Mm/768*768mm |
| Refresh Rate:: | 1920 -3840 Hz | LED Chip:: | Cree + Nichia + Epistar + Opto + Silan |
| High Light: | 290W/M2 Led Advertising Board,SMD3535 Led Advertising Board,6500cd/Sqm Outdoor Led Display Screen |
||
P6 P8 P10 Front Service Outdoor Fixed Video Wall Display Billboard Sign Board Signage Advertising Screen
| Pixel pitch | 6mm |
| Pixel configuration | 1R1G1B |
| LED type | 3-in-1 SMD 3535 |
| Module size | 192x192mm |
| LED lamp | KingLight or Nationstar |
| Module resolution | 32x32dots |
Cabinet Parameter
| Cabinet size | 960x960mm |
| Cabinet material | Ironed steel cabinet |
| Cabinet weight | 32.5kg |
| Ingress protection | Front/Rear IP65/IP54 |
Whole Screen Parameter
| Pixel density | 27777 dots/m² |
| Brightness | ≥6000 cd/m² |
| Viewing angle | H≥120° V≥120° |
| Min.viewing distance | 10m |
| Max.power consumption | 750W/m² |
| Avg.power consumption | 290 W/m² |
| Working voltage | 110~220VAC±15% |
| Interface | HUB75 |
| Colors | 16.7millon colors |
| Gray level | 65536 |
| Refresh rate | ≥1920Hz |
| MTBF | ≥100,000 hours |
| Lifespan | ≥50000 hours |
| Protective function | Over-heat/Over-load /Power-down /Power-leakage /Lightning-protection etc. |
| Operating temperature | -10℃ ~ +60℃ |
| Storage temperature | -20℃ ~ +60℃ |
Control System Parameter
| Video signal (with video processor) | AV, S-video,VGA, DVI, YPbPr, HDMI, SDI, DP |
| Color temperature | Adjustable by software |
| Brightness level | 256 levels, automatic adjustment by software |
| Control way | Computer, video-synchronous, real-time, off-line, wireless, internet etc. |

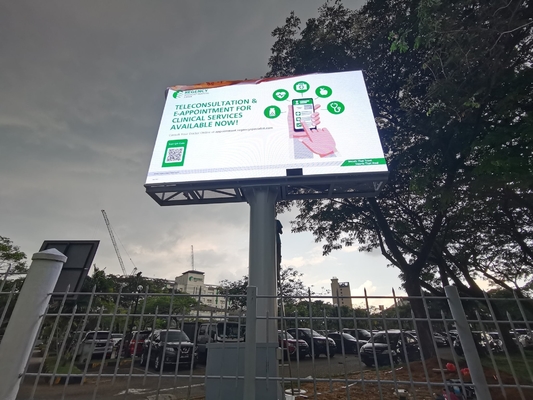

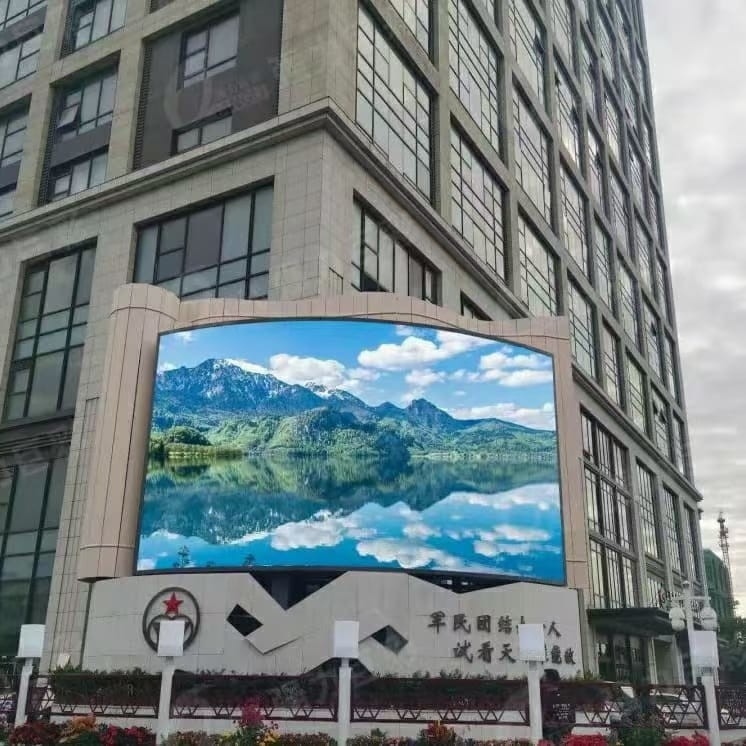

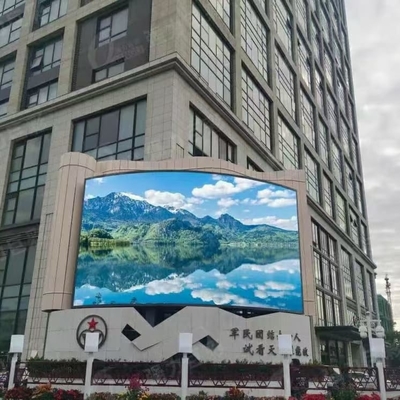

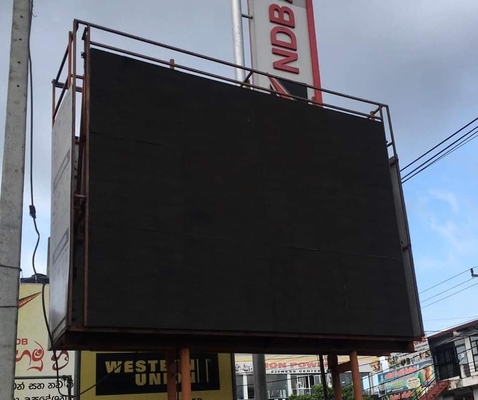

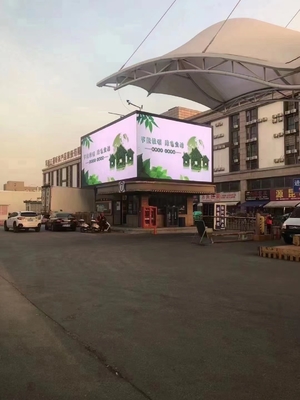

Our case
Certificate
Eachinled has a perfect service system, including pre-sale service, in-sale service and after-sale service. To provide high quality service for our customers, we train every salesman with necessary product maintenance knowledge and organized a Technology Supporting Department with a group of excellent and professional engineers. Any problem you can contact us at any time you like.
Pre-sale service:
1. Reply enquiries in 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
4. Data sheet and samples offer.
5. Other services, such as special packing design, factory visiting and so on.
In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.
4. Free spare parts.
After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6. Special service for big project, such as stadium, exhibitions, squares and so on.
FAQ
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
A: Sample needs 3-5 days, and average Production time is 7-15 working days after receiving the deposit.
A: Yes. Led module: 1 pcs; Led screen: 1 m2.
A: We accept T/T, Alibaba Trade Assurance, Western Union and Cash. At least 30-50 % deposit in advance, and the balance should be paid before delivery.
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
A: Yes, we offer 2-5 years warranty to our products. During the warranty period, we can offer you related after-sales service. Our professional engineering team are ready for your question during 6:00-23:30.
A: Our after-sale service as below:
1.We can instruct you how to use and configure your led display, how to do maintenance with spare parts.A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.1%.
Secondly, during the guarantee period, we will provide a certain quantity of spare parts and these spare parts can basically ensure the normal usage of the LED within warranty period.
For defective batch products, you can send the bad part to us, we will maintain it for free.
