| Place of Origin: | CHINA |
| Brand Name: | SCXK |
| Certification: | CE/ROHS/FCC/ISO/UL |
| Model Number: | P8 |
| Minimum Order Quantity: | 12 sqm |
|---|---|
| Price: | negotation |
| Packaging Details: | plywood case, flight case, you choose what you like. |
| Delivery Time: | 4-12 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 5100 sqm per month |
| Application: | Video | Screen Dimension:: | 256*128mm |
|---|---|---|---|
| Certificate:: | CE ROHS FCC | LED Chip:: | Nationstar |
| Brightness:: | 8000cd/m2 | Cabinet Size:: | 1024x1024mm |
| Pixel Density:: | 15625dots/m2 | Warranty: | 3 Years |
| High Light: | P8 Outdoor Full Color LED Display,SMD 3528 outdoor led advertising screen,IP65 outdoor led video display |
||
SCX LED Led Display P8 Outdoor Led Video Wall P8 Advertising Billboard High Brightness Outdoor led screen
LED cabinet parameter of the P8 fixed led display
Specifications: W768*H768
Weight: 35kg
Material: Iron or Aluminum
Installation method: On pole, Mounted on the wall, Hanging on the wall, on the roof
Use environment: Outdoor IP65
Includes accessories: Control system,power supply, led module,connecting piece,cables
Cabinet color: black
Door color: black
Characteristics
1. Specification: 768mm*768mm
2. Thickness: 130mm
3. Material: iron, aluminum
4. Protection level: IP65
5. Features: outdoor box, double door structure, door panel inlet and outlet, equipped with cover, fixed installation, cabinet can be customized
Module Parameter
| Pixel pitch | 8mm |
| Pixel configuration | 1R1G1B |
| LED type | 3-in-1 SMD 3528 |
| Module size | mm |
| LED lamp | KingLight or Nationstar |
| Module resolution | 32x16dots |
Cabinet Parameter
| Cabinet size | 1024x1024mm |
| Cabinet material | ironed steel cabinet |
| Cabinet weight | 37.5kg |
| Ingress protection | Front/Rear IP65/IP54 |
Whole Screen Parameter
| Pixel density | 15625 dots/m² |
| Brightness | ≥5500 cd/m² |
| Viewing angle | H≥120° V≥120° |
| Min.viewing distance | 8m |
| Max.power consumption | 850W/m² |
| Avg.power consumption | 350 W/m² |
| Working voltage | 110~220VAC±15% |
| Interface | HUB75 |
| Colors | 16.7millon colors |
| Gray level | 65536 |
| Refresh rate | ≥1920Hz |
| MTBF | ≥100,000 hours |
| Lifespan | ≥500,000 hours |
| Protective function | Over-heat/Over-load /Power-down /Power-leakage /Lightning-protection etc. |
| Operating temperature | -10℃ ~ +60℃ |
| Storage temperature | -20℃ ~ +60℃ |
Control System Parameter
| Video signal (with video processor) | AV, S-video,VGA, DVI, YPbPr, HDMI, SDI, DP |
| Color temperature | Adjustable by software |
| Brightness level | 256 levels, automatic adjustment by software |
| Control way | Computer, video-synchronous, real-time, off-line, wireless, internet etc. |

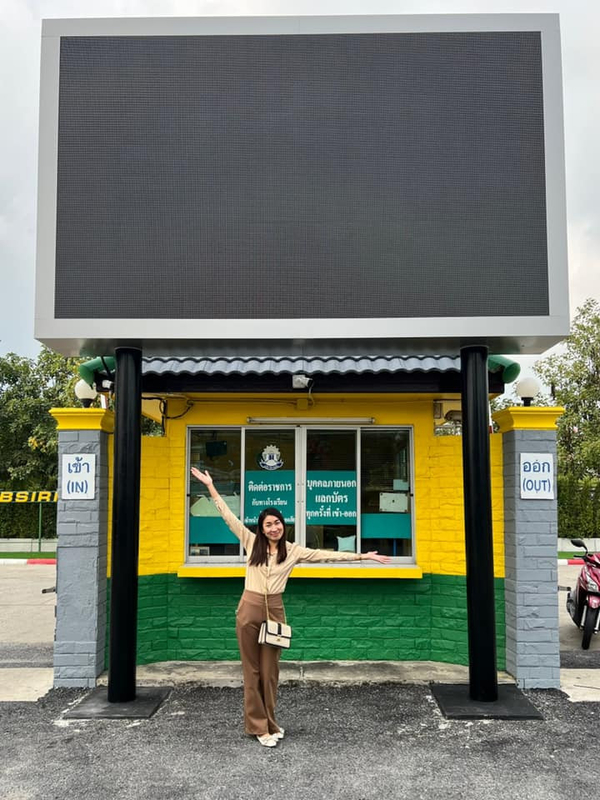

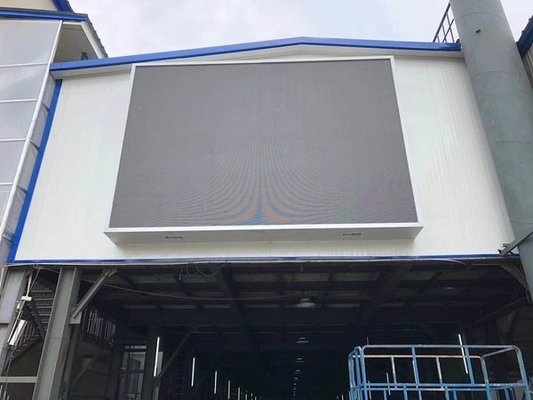

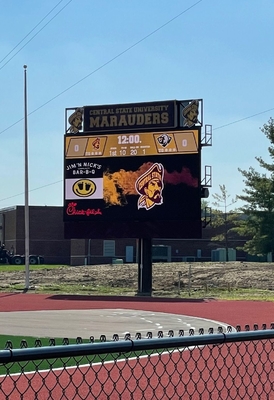

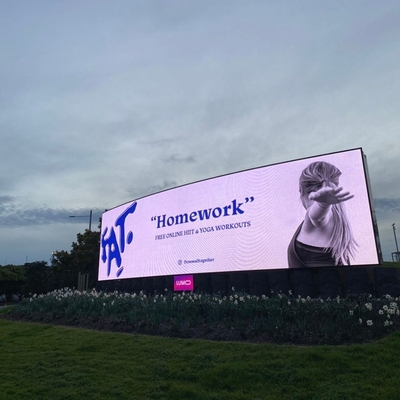

Our case
Why choose us
Continues Quality
With more than 10 years experience in led display,equipments are updated regularly.What’s more,unique standardized and module production ensure our products continuous quality.
Competitive Price
With large scale production capacity and professional production technology,our company have built effective modular production.We always stick to promote the technical innovation and reduce cost to benefit customers.
Fast Delivery
Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency inventory will be used to maintain your uninterrupted supply of the products.
Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to you.
After-sales:We will track the products usage and then constantly perfect our products.
Company profile
Shenzhen SCXK Electronic Co.,Ltd established in 2009 and has the standard new factory, about 100 employees. We have outstanding R&D department and after-sell service workers, and separately design ability. Our product mainly included led indoor full color display, led outdoor full color display,led indoor full color display, led wireless car usd screen, poster screen,transparent screen etc.It can be used on the shopping mall, bank, bus station, train station, center of downtown, airport,school,factory,bus,taxi and so on. We adapt many methods and very good after-sell service to sell our product all over the world. Whenever and wherever we are, we always take the principle that is: professional makes good quality,good price product market to price product market to provide perfect product and service for our customers.
