Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | ShenZhen in China |
| Brand Name: | SCXK |
| Certification: | CE/ROHS/FCC/ISO/UL |
| Model Number: | P7.82 |
| Minimum Order Quantity: | 10 sqm |
|---|---|
| Price: | negotiation |
| Packaging Details: | flight case, wooden case, carton, it is up to you. |
| Delivery Time: | 7-10 working days after receive your payment |
| Payment Terms: | Western Union, MoneyGram, D/P, T/T, L/C |
| Supply Ability: | 5200 sqm per month |
| Application:: | OUTDOOR | Color:: | FULL COLOR |
|---|---|---|---|
| Panel Size:: | 1000 * 1000 | Pixel Pitch:: | P7.82-7.82 |
| Module Size:: | 500mm*125mm | Maintenance:: | Front Maintance And Rear |
| LED Type:: | SMD1921 | Pixel Resolution:: | 128dots(W)*16dots(H) |
| Refresh Frequency:: | ≥1920HZ | Brightness:: | 5000cd/sqm |
| Scan Mode:: | 1/8scan | ||
| High Light: | P7.82 Glass LED Screen,SMD1921 Glass LED Screen,5000cd/sqm Transparent Visible LED Screen |
||

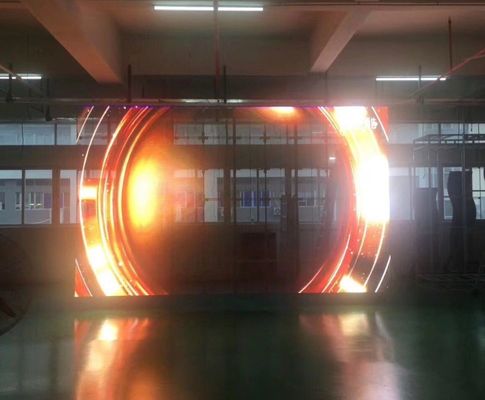

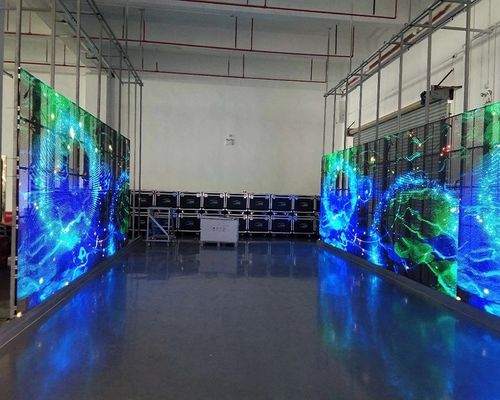

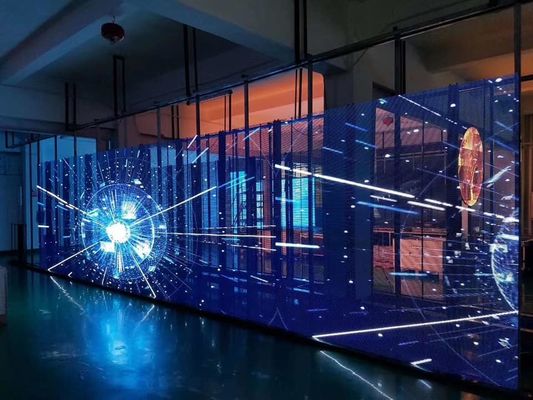

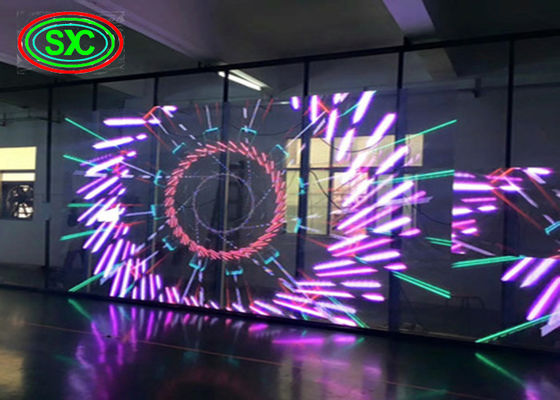

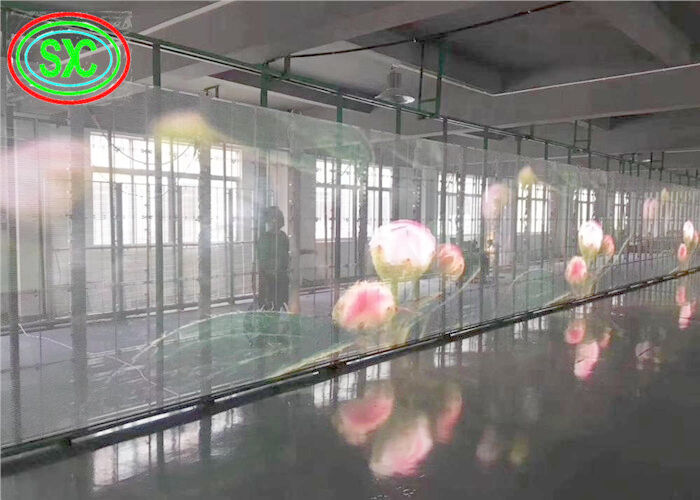

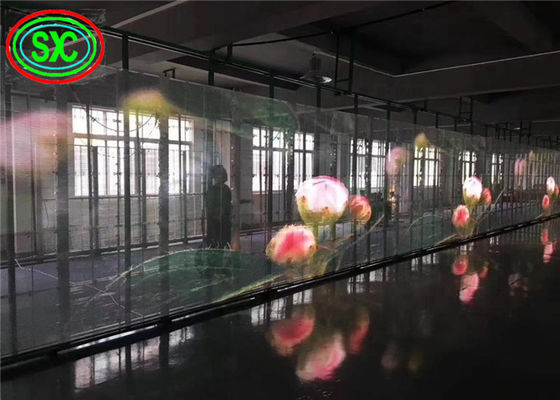

SCX LED Transparent led display led screen full color P7.82-7.82 led screen for outdoor advertising
♦ Applications
--- Outdoor and indoor advertising, digital billboards, advertising companies
--- Sports halls, fields, playgrounds,school church
--- Airports, bus stations and railway passenger terminals.
--- Facades of shopping malls, department stores, banks and car dealerships.
--- Architecture and social projects, information systems in cities.
--- Show-business, concerts, festivals, motor shows and other public events.
|
1, Single Cabinet |
1) Pixel: 3.91-7.82mm 2)Density: 32768dot/m2 3) LED Composition: 1R1G1B 4) Color: Pure Red + Pure Green + Pure Blue
|
|
2, Whole Screen |
4, Best Viewing Distance: 5-250m 5, Best Viewing Angle: horizontal:120. Vertical: 120 6, Environment Temperature: Storage:-40℃ ~+85℃,Working: -40℃ ~ +60℃ 7 Humidity: 10%~95% 8, Screen Depth: t8cm |
|
3, Power |
1)Working Voltage: 100-220v 2)Average Consumption: 300W/m2 3)Max Consumption: ≤900W/m2 |
|
4, Control System |
1) Control Computer: Lenovo 2)Operation System: WIN 98/ 2000/ NT/XP 3)Control Way: synchronization 4)Display Card: DVI display card |
|
5,MainTechnology Specification |
1) Driver IC:MBI5124/ICN2038 2)Driver Way: Static, 1/8scan 4)Refresh Rate: ≥3840HZ 5) Gray/Color: red/green/blue65536 levels, 16.7M colors 6)Brightness: ≥4500cd/m 7) Brightness Adjustment way: software adjust 100 levels. 8) Screen Signal: PAL/NTSC 9) Screen input/output way: 8 ways for input/ 8 ways for output 10) control system: PCTV+ DVI Display Card + Fullcolor Control System 11) Average trouble-free time: ≥10000 hours 12) Lifetime: 10,0000 hours 1) Flatness: every pixels ≤1mm Every modules ≤1mm 14) Uniformity: the brightness is uniformity
|
|
6.Software |
LED Studio |
|
7.Protection Technoloty |
Humidity Protection, Dust Protection, Rust Protection, Static-Protection, etc. |
|
doucment support |
(MPG /MPEG/MPV/MPA/AVI/VCD/SWF/RM/RA/RMJ/ASF...). |

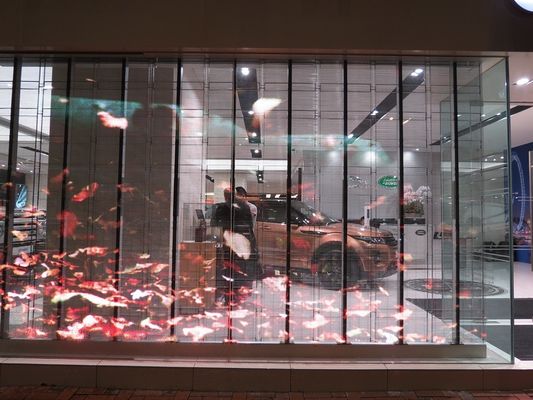

Our case
FAQ
1.Reply your inquiry in 12 working hours
2.Special discount and protection of sales area provided to our distributor
3.We have a 12-year experienced R & D team,can provide ODM and OEM,also can provide solutions
4.We have an after-sales team with 8 years of experience,can solve your after-sales problems as soon as possible 5.Warranty: 24
month quality guarantee, after 24 months, only charge for the cost of the repair. During the 24 months warranty time, we will be
responsible for any damage happened to the display because of the quality fault, not wrong operation. As soon as we confirm that
the damage is not caused by manual operation fault, we will deliver the good parts to you by air within 3 days for replacement.
After 24 months, we can also offer you the parts for replacement at our bottom price.You can also get a longer warranty by paying
more money
6.Lionled assists with training and technical support for the customer in the factory, if required. You can also send your
engineer to our factory at any time for LED display training. This service is free of charge
7.We can send our engineer on site to guide the installation for you. The relevant costs should be paid by your esteemed company,
such as visa, hotel, food, plane ticket back and forth, and a fee of USD 100/day for each engineer(the first three days are free)
