Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China |
| Brand Name: | SCXK |
| Certification: | CE/ROHS/FCC/ISO/UL |
| Model Number: | p15.625 |
| Minimum Order Quantity: | 16 sqm |
|---|---|
| Price: | negotiation |
| Packaging Details: | wooden case or flight case are avialable. |
| Delivery Time: | 3-15 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | negotiation |
| Application:: | Outdoor Advertising | Color:: | Full Color |
|---|---|---|---|
| Panel Size:: | 1x1m | Pixel Pitch:: | P15.625 |
| Life Span:: | 100000 Hours | Pixel Configuration:: | DIP346 |
| Cabinet Size:: | 500x1000mm | Brightness:: | 6000cd/sqm |
| Warranty:: | 2 Years | Certificate:: | CE ROHS FCC |
| High Light: | P31.25 Facade Glass LED Wall,SMD272 Facade Glass LED Wall,160W/Sqm Transparent Led Curtain Mesh |
||
high brightness outdoor full color P15.625mm P31.25mm transparent led mesh screen led curtain display
Features:
p15.625 outdoor power saving transparent led display for glass building installation
Screen dimension: above 100sqm
Refresh rate: 3840Hz whithout moire effect
Brightness: 8000 to 12000cd/sqm
Single installation frame: 2x1M included, no need preapre for your side
Power box: optional
Control computer: optional
It is turnkey solution for your specific project, and engineers can arranged to local to guide the installation, you just wait to receive items and lighting up with beautiful performance in local!
Specifications:
| Name | P15.625-31.25 transparent led screen |
| Pixel pitch(mm) | 25(horizontal)-25(vertical) |
| Leds | SMD2727 |
| Resolution(dots/m2) | 1600 |
| Unit size(mm) | 500*1000mm |
| Pixel per Unit | 32*64 |
| Unit Weight (kgs) | 7 |
| Transparent Rate | 70% |
| Rating (Front and Rear) | Double- side IP67 |
| Power supply voltage | 4.5V |
| Average Power/pcs (watts) | 120w |
| Total Max Power(watts) | 400w |
| Operating Temperature(℃) | -40℃ - +85℃ |
| Storage Temperature(℃) | -55℃ - +120℃ |
| Operating Humidity(RH) | 10-90% |
| The best viewing distance(M) | 10-200 |
| Driving mode | Constant current,Static |
| Refresh Rate(Hz) | ≥2000 |
| Color Grayscale (Bit) | 14 |
| Signal transmission distance (m) | CAT5 cable:<100 m; Single mode fiber:<10 km |
| Color Temperature(K) | 6500-9300 |
| Optimal viewing angle(°) | ≥60°(Vertical) ≥ 120°(Horizontal) |
| Wind resistance rating | 12 degree |
| Installation Form | Tool-free quick installation |
| Fire Performance | Full V0flame retardant |
| Maintenance Mode | Front and back side |

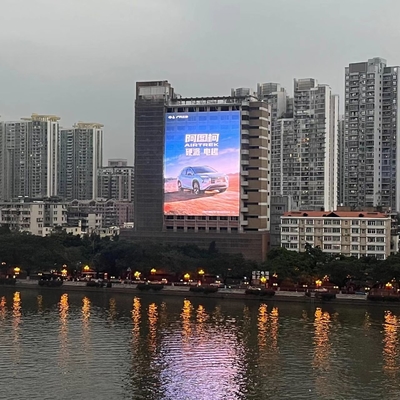

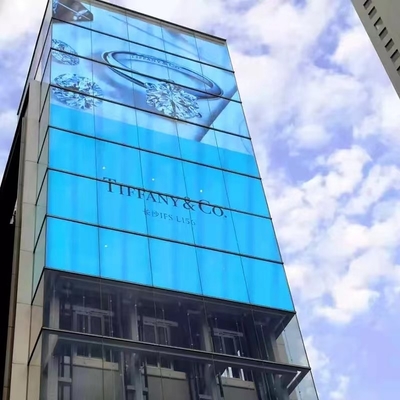

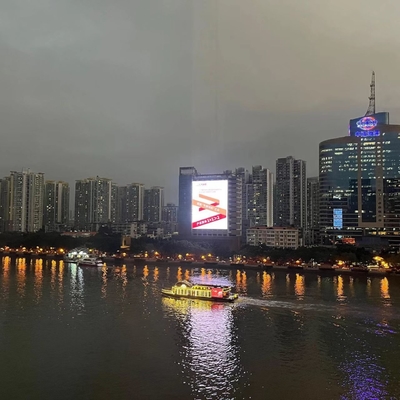

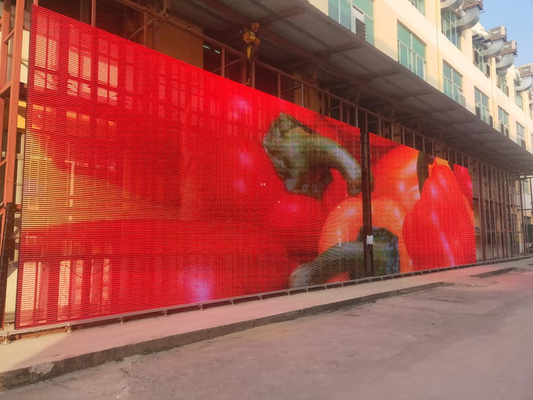

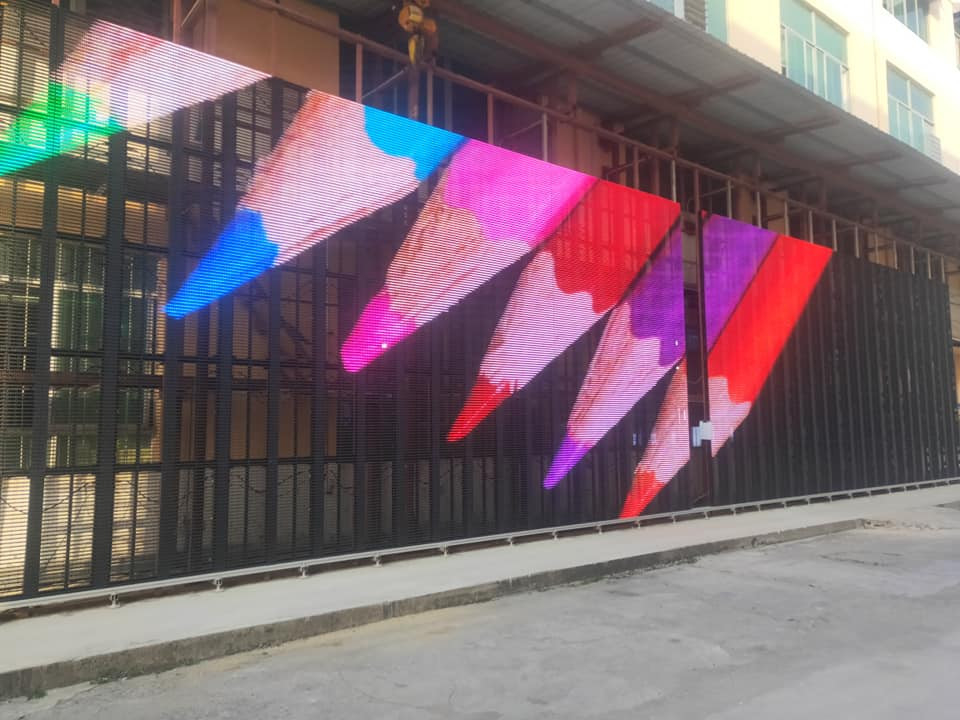

Our case
Company profile
Shenzhen SCXK Electronic Co.,Ltd has the standard new factory, and about 100 employees. We have outstanding R&D department and after-sell service workers, and separately design ability. Our product mainly included led indoor full color display, led outdoor full color display, led wireless car used screen, transparent screen, poster screen etc. It can be used on the shopping mall, bank, bus station, train station, center of downtown, airport, school, factory, bus, taxi and so on. We adapt many methods and very good after-sell service to sell our product all over the world. Whenever and wherever we are, we always take the principle that is: professional makes good quality, good price product market to price product market to provide perfect product and service for our customers.
Certificate
Packaging:
1.The led display modules are packed in cartons.
2.The cabinets of fixed led screen packed in wooden case.
3.The cabinets of rental led screen packed in flight case.
The inner packing: Bubble wrap used to prevent product scratches and pressure damage.
Shipping:
We have three modes of transport:
1.Express:The most popular mode of transport,space and time of full freedom,flexible,adaptable.
2.Sea transportation:Large transportation capacity,high transport freedom.
3.Air transportation:Fast transport speed,smooth operation,less damage to goods.
FAQ
1.What's the controlling system?
A:Our standard controlling system for this model is Linsn, Novastar. Also support other controlling system, like Xixun,TF, Colorlight, etc.
2.What's the product warranty ?
A: All products here we offer at least 2 years warranty.
3.How long will it take to deliver goods ?
A: We will start preparing goods when we get your deposit. The package will be shipped out in 1-2 working days after you pay the balance.
4.What about the quality and the payment?
A: We are also Alibaba Trade Assurance Gold Supplier.That means your payment, quality and lead time will be not a problem.We guarantee that the security of the transaction and our products are of best quality and reasonable price.
5.What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
