SMD3806 P10.42 Transparent Curtain Led Displays 5500cd/sqm

This transparent screen opens up new creative options that were not possible with LCD screens and other LED screens.



Product Features

1 High transparency, up to 85%.

2 Hollow transparent light and only 3mm thickness of the lamp stripe

3 With the front and back wear-resistant PC board protection, no discoloration, no deformation, endure high temperature and antiflaming.

4 Light weight

5 The display is clean and clear, the screen picture is good and beautiful.

6 Brightness automatic adjustment, with the indoor brightness automatically adjusted.

7 Can be fully achieved the front maintenance, installation and disassembly.

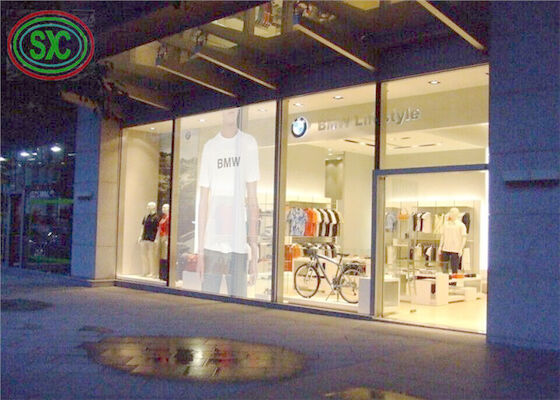

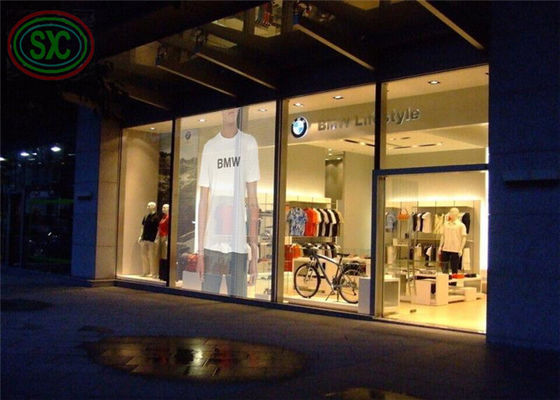

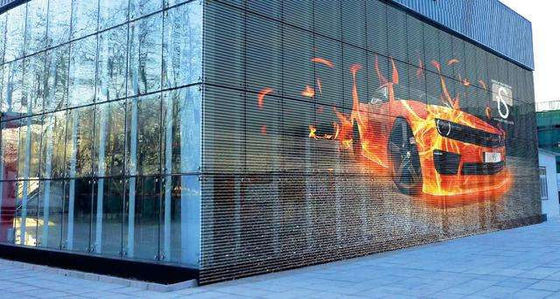

8 Any building with glass wall, for example, bank, shopping mall, theatres, chain stores, hotels, and landmarksetc.







Front & back service

Multiple maintenance mode makes it more convenient on installation and maintenance.

Strong quality

Anti-UV, low -40 degree & high temperature +120 degree resistance, typhoon resistance.

High refresh rate, super slim & light weight.

High refresh rate 3840Hz, super slim & light weight.



Exclusive design on outdoor waterproof.

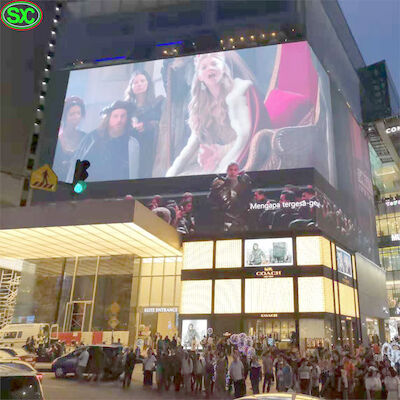

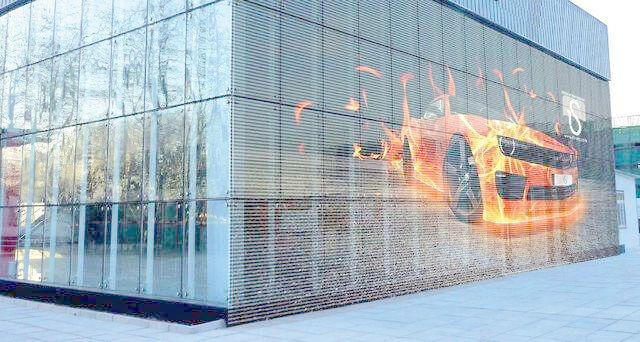

Application

Product	P10.42	P15.6	P15.6
Pitch(mm)	10.42	15.625	15.625
Density(pixels/m2)	9216	4096	4096
LED Type	SMD3535	SMD3535	DIP346
Brightness	6000nits	6000nits	8000nits
Scan Method	1/3	Static	static

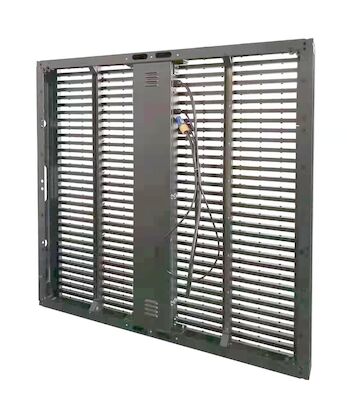

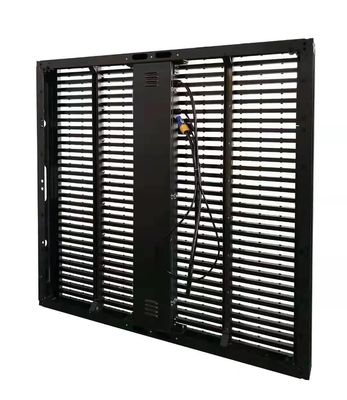

Cabinet Size(mm)	500*1000
Module size(mm)	250*500
Cabinet Material	Die casting Aluminum
Protection Level	IP65
Cabinet Maintenance	Front/Rear Service
Cabinet Weight	9kg	9.5kg	11kg
Max Power Consumption	800w/m2	800w/m2	600w/m2
Average Power Consumption	280w/m2	280w/m2	200w/m2
Refresh Rate	2880-3840HZ
Grey Scale	16 bit
Viewing Angle	H140°,V140°	H140°,V140°	H140°,V170°
Voltage	AC100~240V(50-63Hz)
Working Temperature	-30 oC - + 65 oC
Working Humidity	10% -- 90%RH
Color Temperature	6500-9500K
Certificationa	EMC/CE/ROHS/CCC/FCC/ISO

Specification

Product Information
Model	CS-3
Pixel Pitch	10.42-10.42mm
LED Lamp	SMD1921
Brightness	≥5500CD/㎡
Material	Profile Aluminum
Max. consumption	600-800W
scan mode	1/2 scanning
Warrenty	2 years

Product Description

Front & back service

Multiple maintenance mode makes it more convenient on installation and maintenance.

Strong quality

Anti-UV, low -40 degree & high temperature +120 degree resistance, typhoon resistance.

High refresh rate, super slim & light weight.

High refresh rate 3840Hz, super slim & light weight.



Exclusive design on outdoor waterproof.

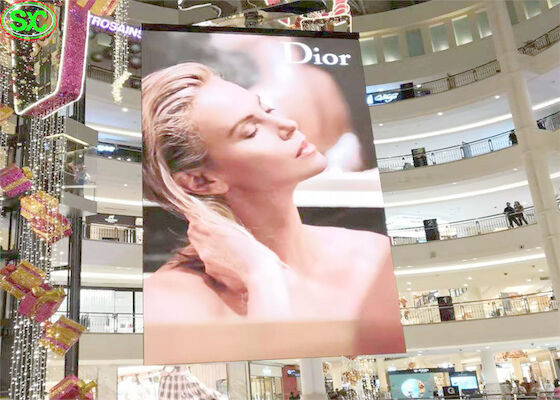

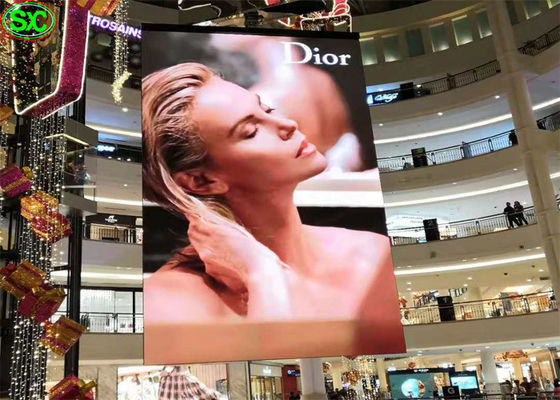

Application





FAQ







Q1. Can I have a sample order for led cabinet?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 7-10 days, mass production time needs 4-5 weeks for order quantity more than
Q3. Do you have any MOQ limit for led display order?
A: Low MOQ, 1sqm for sample checking is available
Q4: Do you offer guarantee for the products?
A: Yes, we offer 2-3 years warranty to our products.
Q5: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%. Secondly, during the guarantee period, we will send new modules and other parts. For defective batch products,









Our case

Company profile
Shenzhen SCXK Electronic Co.,Ltd has the standard new factory, and about 100 employees. We have outstanding R&D department and after-sell service workers, and separately design ability. Our product mainly included led indoor full color display, led outdoor full color display, led wireless car used screen, transparent screen, poster screen etc. It can be used on the shopping mall, bank, bus station, train station, center of downtown, airport, school, factory, bus, taxi and so on. We adapt many methods and very good after-sell service to sell our product all over the world. Whenever and wherever we are, we always take the principle that is: professional makes good quality, good price product market to price product market to provide perfect product and service for our customers.



Certificate



Packaging:

1.The led display modules are packed in cartons.

2.The cabinets of fixed led screen packed in wooden case.

3.The cabinets of rental led screen packed in flight case.

The inner packing: Bubble wrap used to prevent product scratches and pressure damage.

Shipping:

We have three modes of transport:

1.Express:The most popular mode of transport,space and time of full freedom,flexible,adaptable.

2.Sea transportation:Large transportation capacity,high transport freedom.

3.Air transportation:Fast transport speed,smooth operation,less damage to goods.

Product Features

Exceptionally Lightweight and Ultra-slim
Light weight, easy to install and maintenance, no need steel structure, save installation cost

High Transparency
Reduce the wind drag and improve the ability for self-heat dissipation, make very few influences on indoor brightness

High Protection Class
For the first time, the protection level of IP67 is realized in the industry

All Weather
Working at temperature -30℃ to 60℃ without failure, Pneumatic windproof design can withstand storms and typhoons

Low power consumption
Power consumption would reduce half compared with others due to bright LED light with high conversion rate, and the PFC functional power supply

Without Steel Structure
When installed on the wall of the building, the steel structure can be reduced



To protect the LED screen well during the long transportation :
1) If it's for rental use, we will pack all cabinets by flight cases;
2) If it's for fixed installation, we will pack all cabinets by plywood cases .

Q1. Is GCL a manufacturer or a trading company?
Manufacturer. GCL has been a professional LED screen manufacturer for more than 19 years, since 1999. Our factory covers more than 100,000 square feet and we are staffed with about 300 employees.

Q2. How long is the warranty?
The standard warranty is 3 years. It could be longer upon request.

Q3.What is your payment terms?
Payment terms:30% T/T deposit, 70% T/T before shipment.

Q4. What is the delivery time?
Usually 12-15 working days after payment of deposit. Less than a week for our best sales because we always keep about 500 square meters in stock.

Q5. What technical supports can we offer?
We provide all kinds of technology trainings for free, including the operation and maintenance training of the LED screens in our factory. All operation manuals, software, test reports , CAD drawings of the steel structure and instruction of installing the cabinets and connecting the signal/power cables can be provided for free. If required, GCL can send an engineer team to the country of the customer to instruct the installation.

Q6: What controlling system do you use ?
Our standard controlling system is Novastar which is the most famous and popular system in the market. We can also provide other control systems such as Colorlight, Linsn, Xixun, Onbon, etc.

Q7. Do you provide any free spare parts in each order?

Yes, a certain amount of spare parts will be provided for free, spare parts including module, power cable,signal cable, LED diod, IC, module mask, power supply, receiving card, etc.
