Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | ShenZhen in China |
| Brand Name: | SCXK |
| Certification: | CE/ROHS/FCC/ISO/UL |
| Model Number: | P10.42 |
| Minimum Order Quantity: | 10 sqm |
|---|---|
| Price: | negotiation |
| Packaging Details: | flight case, wooden case, carton, it is up to you. |
| Delivery Time: | 7-10 working days |
| Payment Terms: | Western Union, MoneyGram, D/P, T/T, L/C |
| Supply Ability: | 2500 sqm per month |
| Application:: | Video | Color:: | Full Color |
|---|---|---|---|
| Panel Size:: | 1000mmx1000mm | Pixel Pitch:: | 3.9-7.8/10.42 |
| Module Size::: | 500*250 Mm | Brightness:: | 4000nits |
| Certificate:: | CE ROHS FCC | Cabinet Size:: | 1000x500mm |
| Life Span:: | 100000hours | Pixel Density:: | 65536 Dots/sqm |
| Refresh Rate:: | 3840Hz | Cabinet Material:: | Die Casting Alunimum |
| High Light: | 4000nits Transparent Led Display,P10.42 Transparent Led Display,1R1G1B Wall Mounted Led Display |
||
High brightness P10.42 outdoor waterproof transparent led display screen shop window glass wall mounted led display screen
1. Clear and visible
High brightness create high visibility even under direct sunshine, without any cooling system, energy efficient
2. Light weight and thin
Whole cabinet is only 14kg/sqa light weight and 10mm thick, requires little space for the installation
3. Stable and reliable
Patented technology of inlaying SMD into PCB, the stability is much better than other similar products in the market.
4. Easy maintenance
Repairing single SMD without taking out single module or entire panel
5. Wide applications
Any building with glass window or wall, for example, bank, large shopping mall, theatres, chain stores, hotels, and landmarks etc.
6. Easy and quick installation
Efficient fast lock systems ensure time and labor is saved
7. High transparency 80%
Up to 80% transparenc
♦ Applications
--- Outdoor and indoor advertising, digital billboards, advertising companies
--- Sports halls, fields, playgrounds,school church
--- Airports, bus stations and railway passenger terminals.
--- Facades of shopping malls, department stores, banks and car dealerships.
--- Architecture and social projects, information systems in cities.
--- Show-business, concerts, festivals, motor shows and other public events.
♦ Technical specification
| indoor transparent | |
| Resolution/mm | 10.42 |
| Pixel configuration | 1R1G1B |
| board resolution | 1000*1000 |
| Module size/mm | no specification |
| View distance | 5-300m |
| Single point brightness adjust | Can be added |
| Single point color adjust | Can be added |
| White balance brightness | over than 5500cd/㎡ |
| Color temperature | 6500K-9500K |
| Horizontal view angle | 180(degrees) |
| Vertical view angle | 180(degrees) |
| Signal Process bit | 10 or 16bit |
| Driving mode | Constant driving current |
| Scanning mode | static dring |
| Frame rate | 60Hz |
| Refresh frequency | 3000Hz |
| Control mode | Computer synchronous |
| Brightness adjusted range |
Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
| Out of control point | <1/10000 |
| Working hours | >72hours |
| Mean time Between Failure | >500hours |
| life time | >100000hours |
| Envirornment temperature range | operating temperature range -200c-500c |
| Maximun power :/m2 | -<800w |
| Average power:/m2 | <300w |
| Self-check technolog | LEDspot self-check,communication check,power check,temperature monitor(need customization) |
| Remote monitoring | Remote supervision and control,record potential fault send out warning signs to the operators(need customization) |
| Software environment | windows NT,Windows 1999,Windows XP |
| Input power cable | AC110v to220v |
| Signal input | DVI |
| Warranty | 2years quality warranty ,10 years spare parts support |

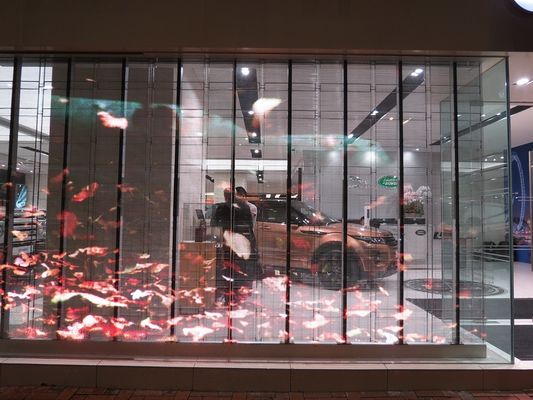

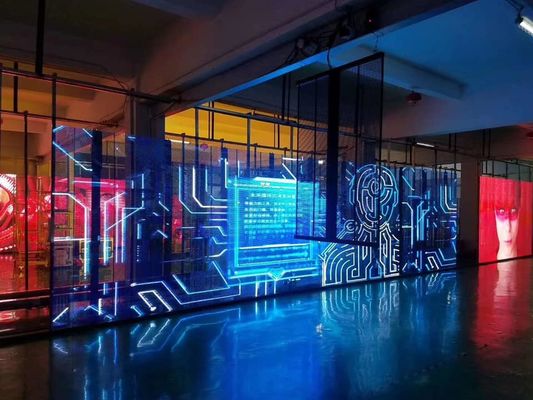

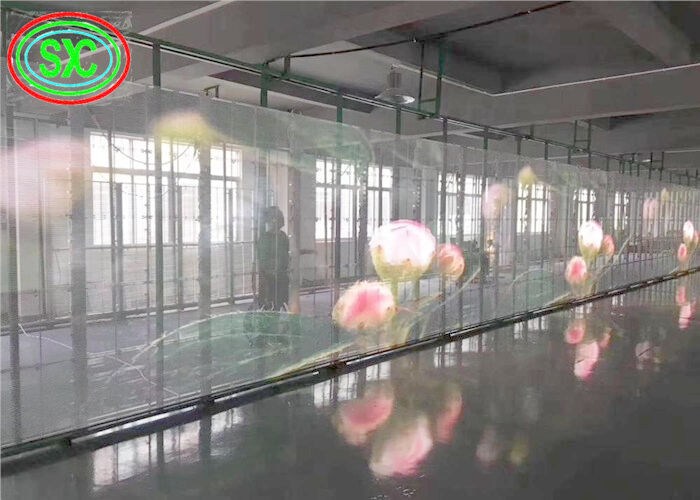

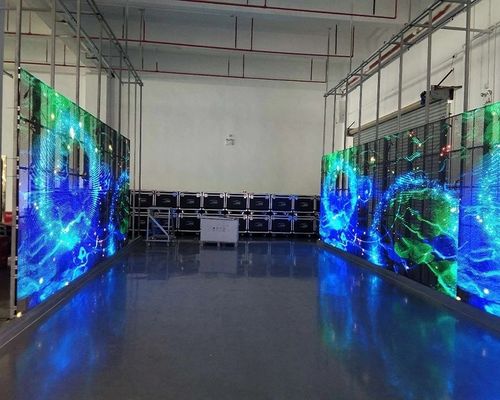

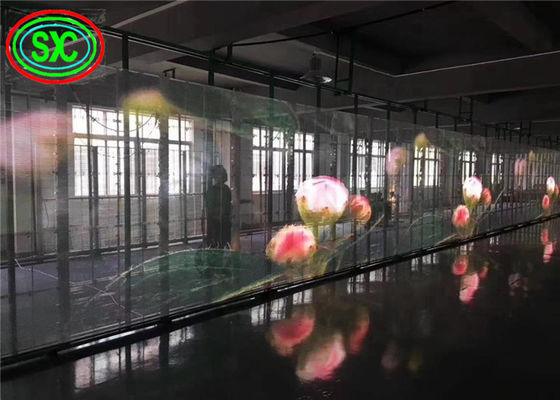

Our case
Services for custom digital signage solutions
We understand that every digital signage project offers a new set of challenges including: the physical environment, timing and budget constraints, learning different technologies, interactive functionality and designing and maintaining a digital display network.
M-shine delivers fully-customized display systems that seamlessly integrate into all your locations and meet any unique business challenge, application or budget. We offer the following services:
Customizing your digital displays
Our technology agnostic design experts can provide optional site surveys and CAD drawings to help you create a fully-integrated and customized display system that includes: hardware, software, content, installation and ongoing support
We deploy pre-staged, tested and technology agnostic displays ensuring trouble-free installation and operation. Our shipping, onsite logistics and installation expertise has been perfected through years of successful customer installations.
Our support helps to safeguard your visual displays and keep them running 24/7/365. You'll be alerted to any issues in advance and experience quick, easy and immediate response times. We offer you 24/7 remote monitoring of your displays, on-site maintenance service, repairs and parts delivery service.
Usually, there are three tyeps of package design.
Firstly, we pack the LED display in the paper carton.
Secondly, we will pack the LED display in the flight case if customer request for frequent movement.
Thirdly, the favorable package method is wooden case package because of its lower cost and instant usage.
Note: It also could mark the brand as clients requirement.
Shipping:
We could provide air shipping, sea shipping and international Express according to clients needs.
FAQ
1. How can I place an order?
Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time. For designing or further discussion, it is better to contact us with Skype/email /phone, in case of any delays.
2. What kind of display we provide?
We have indoor/outdoor/led curtain/mobile LED /rental LED display /LED stage/LED Dance Floor/Irregular LED display for you choose.
3. What about the lead time for order?
Always: 3-20 days, as your order quantity, sometimes we have stock, can delivery within 5 days
4.How about the warranty ?
We have two years warranty.
