Indoor P3.9-7.8 SMD Transparent Led Display Full Color Led Glass Video Wall For Showcase

Indoor P3.9-7.8 SMD Transparent Led Display Full Color Led Glass Video Wall For Showcase

  • Indoor P3.9-7.8 SMD Transparent Led Display Full Color Led Glass Video Wall For Showcase
  • Indoor P3.9-7.8 SMD Transparent Led Display Full Color Led Glass Video Wall For Showcase
  • Indoor P3.9-7.8 SMD Transparent Led Display Full Color Led Glass Video Wall For Showcase
Indoor P3.9-7.8 SMD Transparent Led Display Full Color Led Glass Video Wall For Showcase
Product Details:
Place of Origin: China
Brand Name: SCXK
Certification: CE/ROHS/FCC/SGS/BC
Model Number: CP3.91-7.82
Payment & Shipping Terms:
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: Packed in wooden case and flight case for outer packing
Delivery Time: 5-8 working days after payment received
Payment Terms: T/T or western Union
Supply Ability: 3,000/ Sqm per month
Contact Now
Detailed Product Description
Product Name: Transparent Led Screen Cabinet Size(W * H): 500*1000mm/1000*1000mm
Standard: CE/ROHS/FCC/ISO2001/CCC Tube Chip Color: Full Color
Pixel Pitch: 3.91-7.82mm Module Qty: 1pcs
Type: Free Standing Brightness: 1500cd/m2
High Light:

Indoor Stadium SMD Led Display

,

SMD Transparent Led Display Full Color

,

1500cd/m2 Showcase Led Glass Video Wall

Indoor P3.9-7.8 SMD Transparent led display screen Full color led glass video wall led screen for showcase



♦ Applications
Stage, CBD, Conversation, high-end hotel, 5A level office building, 4S car store, shopping mall, airport, glass elevator, brand chain stores, etc.



Features:
1. Extremely light weight: 14kgs/sqm, can be install onto building glass wall.
2. Fast installation: Average 5-10 seconds to install an individual cabinet.
3. Stability long life time:Low consumption of electricity to increase the lifetime of LEDs.
5. Simple structure: Reduce the cost of steel structure (Average 5 USD per sqm).
6. Labor efficient: Reduce the labor time and cost by 60%.



Resolution/mm 3.91
Pixel configuration 1R1G1B
Pixel density/pixels/m² 32768dots/square meter
Module size/mm 1000x500
View distance 3-60m
Single point brightness adjust Can be added
Single point color adjust Can be added
White balance brightness 250cd/square meter
Color temperature 6500K-9500K
Horizontal view angle 120(degrees)
Vertical view angle 60(degrees)
Signal Process bit 10 or 16bit
Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances Internet cable:100m, multimembrane:500m, monofilm:2km
Driving mode Constant driving current
Scanning mode 1/8
Frame rate 60Hz
Refresh frequency >3000Hz
Control mode Computer synchronous
Brightness adjusted range Manual, automatic operation, stepless continuous adjusted
255 steps. No grey loss
Out of control point <1/10000
Working hours ≥72hours
Mean Time Between Failure >5000hours
Life time 100000hours
Life-all-white(brightness halving) 50000hours
Environment temperature range Operating temperature range: -20-45℃
Maximum power:/square meter <950W
Average power:/square meter <350W
Self-check technology LED spot self-check, communications check, power check,
temperature monitor(need customization)
Remote monitoring Remote supervision and control, record potential fault,
send out warning signs to the operators.(need customization)
Software environment WindowsNT,Windows1999,WindowsXP
Luminous point width between centres Deviation<3%
Brightness uniformity <10%
Color uniformity(chromaticity coordinate) ±0.003
Power supply request AC85-264V(50Hz-60Hz)
Contrast (1000:1)
System protection Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working) working:10-95%
Humidity(storing) storing:10-95%

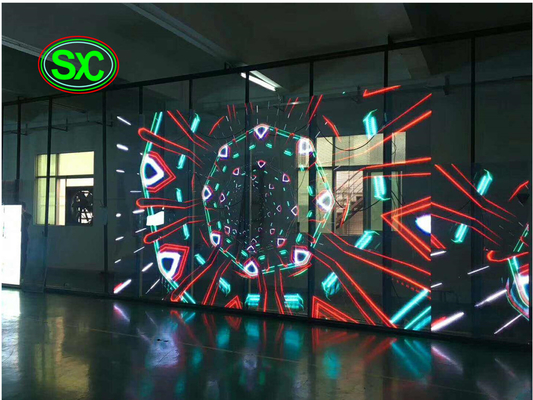

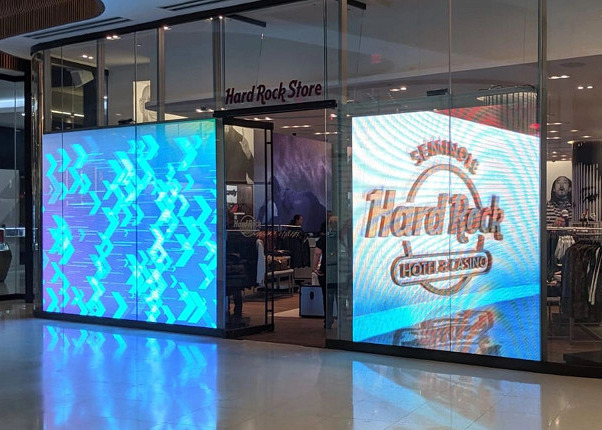

Actual Project



Indoor P3.9-7.8 SMD Transparent Led Display Full Color Led Glass Video Wall For Showcase 0Indoor P3.9-7.8 SMD Transparent Led Display Full Color Led Glass Video Wall For Showcase 1Indoor P3.9-7.8 SMD Transparent Led Display Full Color Led Glass Video Wall For Showcase 2





Factory Equipment


Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue-pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipment.


1.Wide application field & short ROI time:
Commercial advertising LED display screen, Stadium perimeter LED display screen, Mobile trailer LED display screen for mobile media,shopping mall LED display screen for logo showing, bank&stock exchange LED display screen for rates showing, train & bus station LED display screen, air port LED display screen, telecommunication LED display screen system for information showing and instruction .

2. High Contrast ratio: 4000:1
Which is a very high level to ensure a vivid image of our LED display screen system.

3. First-class LED chip:
Supplied by Nichia of Japan & other high strictly selected LED chip to ensure the long lifetime and high brightness of our LED display screen system

4. Clear vivid image quality:
Even in direct, full-on sunlight to ensure you attract more audience to get short ROI of your LED display screen's investment.

Indoor P3.9-7.8 SMD Transparent Led Display Full Color Led Glass Video Wall For Showcase 3Indoor P3.9-7.8 SMD Transparent Led Display Full Color Led Glass Video Wall For Showcase 4

Indoor P3.9-7.8 SMD Transparent Led Display Full Color Led Glass Video Wall For Showcase 5



Shipment


We can receive all kinds of transportation. and the shippment term. FOB and CIF. EXW and so on.
We can choose the best shippment which is convenient to you!
SCXK group can give you the short delivery time and With the large production ability.

Wooden case or flight case package are available.

Shipping by sea,air or DHL,multiple shipping ways for your choice.


A. Flight case Packing
1)150KG Per flight case
2)3 cabinets in one case
3)Flight case size: 1010mm*560mm*1175mm=39inch*22inch*46inch


B. Plywood case
1)180KG per plywood case
2)3 cabinets in one case
3)Plywood case size: 1120mm*585mm*930mm= 44inch*23inch*36inch

C.customized packing is acceptable
D. 20"FT container loading of 100sq.m








♦ Why choose us:



Continues Quality

With more than 10 years experience in led display producing,equipments are updated regularly.What’s

more,unique standardized and module production ensure our products continuous quality.



Competitive Price

With large scale production capacity and professional production technology,our company have built

effective modular production.We always stick to promote the technical innovation and reduce cost to

benefit customers.



Fast Delivery

Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency

inventory will be used to maintain your uninterrupted supply of the products.



Perfect Service

Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to

you.

After-sales:We will track the products usage and then constantly perfect our products.







♦ FAQ



What kind of payment terms you can accept ?

We can accept T/T and Western Union.



What about your Led Display quality ?

Checking in the whole manufacturing process&100% inspection before shipment ensure the quality of

our products continuity.



What is your delivery time ?

Within 7-35 days according to your area and quantity.



Is your LED display competitive ?

Yes,we are led display manufacturer for more than 10 years.Mass and professional production ensure

our led display’s competitiveness.

Indoor P3.9-7.8 SMD Transparent Led Display Full Color Led Glass Video Wall For Showcase 7
