Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China |
| Brand Name: | SCXK |
| Certification: | CE/ROHS/FCC/ISO/UL |
| Model Number: | P8 |
| Minimum Order Quantity: | 10sqm |
|---|---|
| Price: | negotiation |
| Packaging Details: | flight case, wooden case, carton, it is up to you. |
| Delivery Time: | 7-10 working days after receive your payment |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 5000sqm per month |
| Product Name: | Led Perimeter System Solution P8 Stadium Led Display | Pixels: | 8mm |
|---|---|---|---|
| Resolution: | 15625 Dots Per Sqm | Module Resolution: | 32x16 |
| Life Span: | 100000 Hours | Warranty: | 3 Years |
| High Light: | P8 Outdoor Led Screen,IP65 Outdoor Led Screen,FCC Mobile Truck LED Display |
||

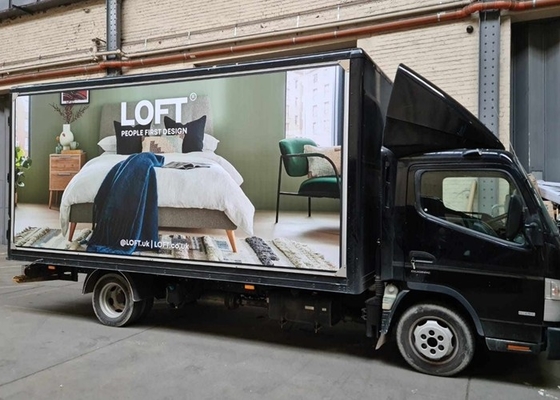

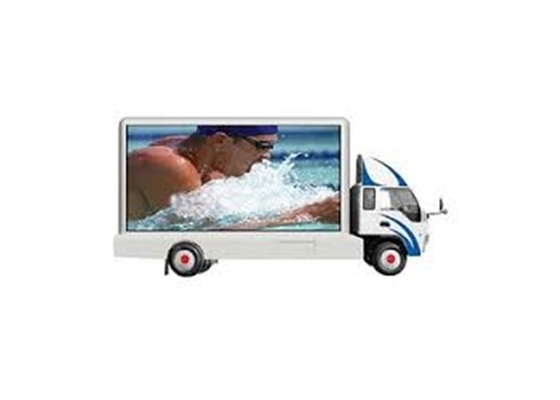

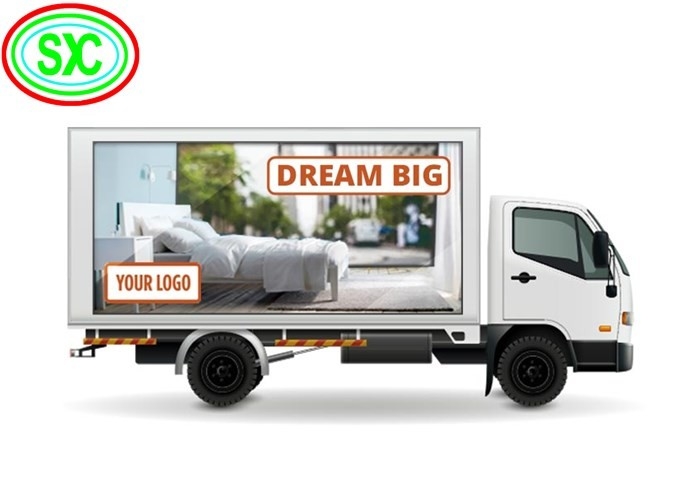

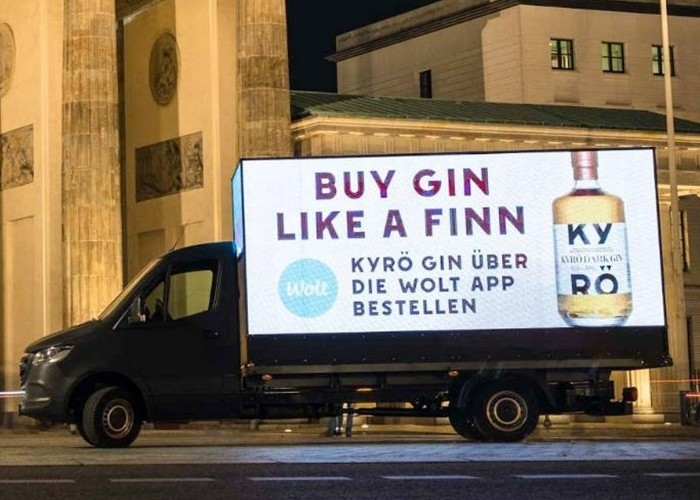

Mobile Smart Outdoor P8 Led Screen Fixed On Vans With IP65 Waterproof
♦ Quick Detail
1. High refresh rate, High contrast ratio, High gray scale, bring you excellent display performance and camera shooting effect, effectively avoids the flickering phenomenon during shooting.
2. Die casting aluminum radiator design, super slim, cooling effect is better.
The design of the top roof protection, the selection of a soft mask and a soft material on the upper cover, can protect the LED lights without causing obvious injuries due to the collision of athletes.
♦ Product specification
| outdoor P8 | ||||||||||||||
| Resolution/mm | 8mm | |||||||||||||
| Pixel configuration | 1R1G1B | |||||||||||||
| Pixel density/pixels/m² | 15625/m² | |||||||||||||
| Module resolution | 32x16 | |||||||||||||
| Module size/mm | 256*128 | |||||||||||||
| View distance | 9-500m | |||||||||||||
| Single point brightness adjust | Can be added | |||||||||||||
| Single point color adjust | Can be added | |||||||||||||
| White balance brightness | >8000cd/㎡ | |||||||||||||
| Color temperature | 6500K-9500K | |||||||||||||
| Horizontal view angle | 120(degrees) | |||||||||||||
| Vertical view angle | 60(degrees) | |||||||||||||
| Signal Process bit | 10 or 16bit | |||||||||||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | |||||||||||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | |||||||||||||
| Driving mode | Constant driving current | |||||||||||||
| Scanning mode | (1/4) | |||||||||||||
| Frame rate | 60Hz | |||||||||||||
| Refresh frequency | >3000Hz | |||||||||||||
| Control mode | Computer synchronous | |||||||||||||
| Brightness adjusted range |
Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
|||||||||||||
| Out of control point | <1/10000 | |||||||||||||
| Working hours | ≥72hours | |||||||||||||
| Mean Time Between Failure | >5000hours | |||||||||||||
| Life time | 100000hours | |||||||||||||
| Life-all-white(brightness halving) | 50000hours | |||||||||||||
| Environment temperature range | Operating temperature range: -20-45℃ | |||||||||||||
| Maximum power:/㎡ | <750W | |||||||||||||
| Average power:/㎡ | <250W | |||||||||||||
| Self-check technology |
LED spot self-check, communications check, power check, temperature monitor(need customization) |
|||||||||||||
| Remote monitoring |
Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
|||||||||||||
| Software environment | WindowsNT,Windows1999,WindowsXP | |||||||||||||
| Luminous point width between centres | Deviation<3% | |||||||||||||
| Brightness uniformity | <10% | |||||||||||||
| Color uniformity(chromaticity coordinate) | ±0.003 | |||||||||||||
| Power supply request | AC85-264V(50Hz-60Hz) | |||||||||||||
| Contrast | (1000:1) | |||||||||||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | |||||||||||||
| Humidity(working) | working:10-95% | |||||||||||||
| Humidity(storing) | storing:10-95% | |||||||||||||
♦ Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing
♦ Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
♦ Methods for Quality Assurance
a. Aging
1) 100% fully test
2) Condition: 72 hours with 256 grey level
b. Vibration Testing
Condition: 3-5 mins up and down in 5mm range
♦ Why choose us:
Continues Quality
With more than 12 years experience in led display producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products continuous quality.
Competitive Price
With large scale production capacity and professional production technology,our company have built
effective modular production.We always stick to promote the technical innovation and reduce cost to
benefit customers.
Fast Delivery
Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the products.
Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to
you.
After-sales:We will track the products usage and then constantly perfect our products.
Our team will be forever here to offer you full supports !!!
Contact Person: Alice Zhi
Tel: +8618026962937
