P5 LED Video Screen - High Resolution Full Color Lightweight Hanging LED Display for Digital Advertising

Brand Name:	SCXK
Model Number:	P5
MOQ:	negotiation
Price:	negotiation
Payment Terms:	T/T or western Union
Supply Ability:	5000sqm per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE/ROHS/FCC/ISO/UL

Pixel Pitch:

5mm

Module Size:

160mm X 160mm

Module Resolution:

32x32 Dots

White Balance Brightness:

7000 Cd/㎡

Viewing Angle:

120° Horizontal, 60° Vertical

Power Consumption:

<700W Max, <200W Avg

Packaging Details:

flight case, wooden case, carton, it is up to you.

Highlight:

led information display

full color led screen

Product Description

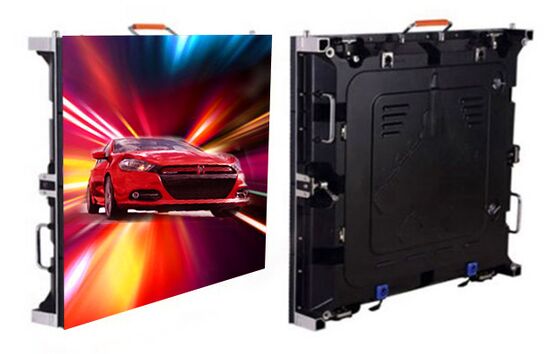

Exterior P5 LED Video Screen Digital Advertising LED Display Screen HD High Resolution

Exterior P5 LED Video Screen Digital HD high resolution hanging LED display

Product Specifications

Lightweight design for convenient transportation and installation, reducing labor costs and suitable for mobile shows
Attractive appearance with simple structural design
Tool-free installation and disassembly by a single person
User-friendly operating interface with diagnostic indicator lights for easy maintenance
High brightness adjustment capability without gray scale degradation, ensuring excellent image quality

Specification	Value
Resolution	5mm
Pixel Configuration	1R1G1B
Pixel Density	40,000 pixels/m²
Module Resolution	32×32
Module Size	160×160mm
Viewing Distance	3-150m
White Balance Brightness	7,000 cd/m²
Color Temperature	6,500K-9,500K
Horizontal Viewing Angle	120°
Vertical Viewing Angle	60°
Signal Processing	10 or 16-bit
Failure Rate	<1/10,000
Operating Hours	≥72 hours
Operating Temperature	-20°C to 45°C
Maximum Power Consumption	<700W/m²
Average Power Consumption	<200W/m²
Luminous Point Center Deviation	<3%
Brightness Uniformity	<10%
Color Uniformity	±0.003

Production Process

Incoming Inspection
SMD (Surface Mount Device)
Plug-in
Wave Soldering
Post-Welding Inspection
Testing
Semi-Finished Aging
Module Assembly
Gluing
Finished Aging
Final Detection and Warehousing

Packaging and Shipping

Wooden case or flight case packaging options available. Shipping by sea, air, or DHL with multiple shipping methods to choose from.

A. Flight Case Packaging

150kg per flight case
3 cabinets per case
Case dimensions: 1010mm × 560mm × 1175mm (39" × 22" × 46")

B. Plywood Case Packaging

180kg per plywood case
3 cabinets per case
Case dimensions: 1120mm × 585mm × 930mm (44" × 23" × 36")

C. Customized Packaging

Customized packaging solutions available upon request

D. Container Loading

20-foot container capacity: 100 square meters

Why Choose Our LED Displays

Consistent Quality

With over 10 years of LED display manufacturing experience, regularly updated equipment, and unique standardized modular production ensuring continuous product quality.

Competitive Pricing

Large-scale production capacity and professional manufacturing technology with efficient modular production. Continuous technical innovation and cost reduction to benefit customers.

What about your LED display quality?

Comprehensive quality control throughout the manufacturing process and 100% inspection before shipment ensure consistent product quality.

What is your delivery time?

7-10 days delivery time depending on destination and order quantity.

Is your LED display competitive?

Yes, as an LED display manufacturer with over 10 years of experience, our mass production and professional expertise ensure product competitiveness.
