Indoor Outdoor P3.91-7.82 Transparent LED Screen 1000x500mm Full Color 2000cd/Sqm

Name: Indoor Outdoor P3.91-7.82 Transparent LED Screen 1000x500mm Full Color 2000cd/Sqm
Brand: Shenzhen ShiXin Display Technology Co.,Ltd
SKU: P3.91-7.82
Price: 10000 USD
Availability: InStock

Brand Name:	SCXK
Model Number:	P3.91-7.82
MOQ:	6 sqm
Price:	negotiation
Payment Terms:	T/T, Western Union, MoneyGram, L/C
Supply Ability:	3500 sqm per month

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen in China

Certification:

CE/ROHS/FCC/ISO/CB/UL

Pixels:

P3.91-7.82

Cabinet Size:

500mm*1000mm/ 1000*1000mm

Frame Frequency:

>=60HZ

Average NO Failure:

>=10000hours

Transmiiting Distance:

Internet Cable <100m

Refresh Rate:

>=1920HZ

Maximum Power:

600m2

Scan Mode:

8 Scan

Brightness:

Over Than 2000 Cd/sqm

Packaging Details:

flight case/wooden case/carton

Highlight:

1000mm*500mm Transparent Led Screen

1000mm*1000mm Transparent Led Screen

Glass Windows Transparent Led Screen

Product Description

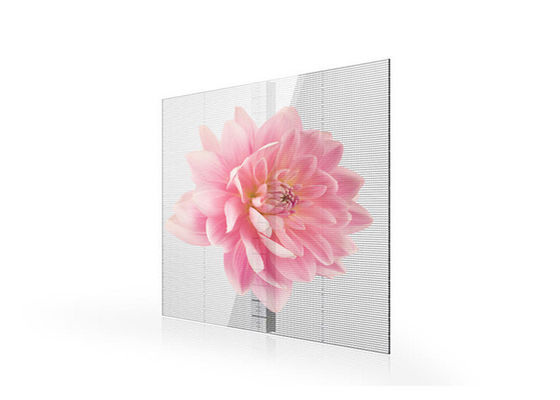

Full Color Transparent LED Screen P3.91-7.82

Large Building Glass Curtain Wall Advertisement HD LED Transparent Display Screen 3.9mm

LED Transparent Features

Also called LED glass curtain wall screen; unit modules can be hoisted, stacked, and spliced into large areas according to installation location size
New product developed from traditional LED displays, consisting of single LED strips
High transparency (60%-80%) with minimal effect on building lighting
Excellent heat dissipation performance and lightweight design
Ideal for building facades and installation in front of glass curtain walls
Lightweight, ultra-thin design for convenient installation and maintenance
Optional front or rear maintenance increases installation adaptability

Applications

Widely used in glass curtain walls, shop windows, shopping malls, terminal buildings, automobile exhibition halls, exhibition halls, business halls, 4S shops, and office glass curtain walls.

Technical Parameters

Product Name	Transparent Advertising Display
Pixel Pitch	3.91-7.82mm
Module Size	1000mm*1000mm
Density	32768(dot/m²)
Cabinet Size	Customized
LED Standard	SMD2525
Brightness	≥1500CD
Pixel Configuration	1R1G1B
Refresh Rate	1200HZ
Protection Level	IP43
Driving Method	1/8 scan
View Angle	H:±150° V:±210°
Best View Distance	8-100m
Power Consumption	900W/m²
Screen Lifespan	≥100,000 hours
MTBF	≥5,000 hours
Blind Spot Rate	<1/50000
Power Supply Mode	AC220±10% 50Hz/AC110±10% 60Hz
Environment Temperature	-20°C to +60°C
Humidity	10%-90% RH
Display Content	Video, DVD, VCD, TV, picture, cartoon, graphics, text, etc.
Transmission Distance	Multi mode fiber <500m, single mode fiber <30km, internet cable <100m
Certificate	CE, ROHS, FCC, CB, ISO, UL
