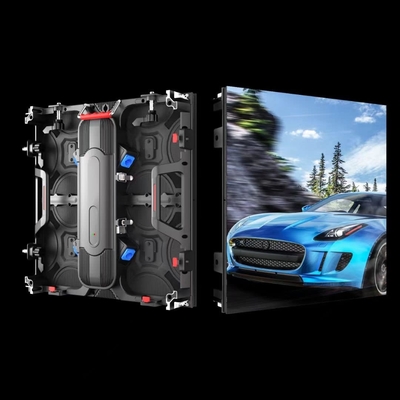

Waterproof Die-Cast Aluminum Led Screen, P4.81 HD LED Video Wall Panel 250*250mm Module IP65 Scan 1/13

Waterproof Die-Cast Aluminum Led Screen, P4.81 HD LED Video Wall Panel 250*250mm Module IP65 Scan 1/13

  • Waterproof Die-Cast Aluminum Led Screen, P4.81 HD LED Video Wall Panel 250*250mm Module IP65 Scan 1/13
  • Waterproof Die-Cast Aluminum Led Screen, P4.81 HD LED Video Wall Panel 250*250mm Module IP65 Scan 1/13
  • Waterproof Die-Cast Aluminum Led Screen, P4.81 HD LED Video Wall Panel 250*250mm Module IP65 Scan 1/13
  • Waterproof Die-Cast Aluminum Led Screen, P4.81 HD LED Video Wall Panel 250*250mm Module IP65 Scan 1/13
Waterproof Die-Cast Aluminum Led Screen, P4.81 HD LED Video Wall Panel 250*250mm Module IP65 Scan 1/13
Product Details:
Place of Origin: China(Mainland)
Brand Name: SCXK
Certification: CE,RoHS,FCC,CCC,SAA,TUV,UL
Model Number: SCXK-P4.81
Payment & Shipping Terms:
Minimum Order Quantity: Negotiations
Price: Negotiations
Packaging Details: Wooden and flight cases,it's up to you.
Delivery Time: 7 working days after payment
Payment Terms: T/T, Western Union
Supply Ability: 5000sqs/month
Contact Now
Detailed Product Description
Pitch: 4.81mm Color: Full Color,RGB 3In1
LED Chip: Epistar System: LSN
Module Size: 250*250mm Brightness: 43222dots/sq
Certification: CE,RoHS,FCC,CCC,SAA,TUV,UL Warranty: 3-5 Years
Highlight:

Waterproof Die-Cast Aluminum Led Screen

,

IP65 Die-Cast Aluminum Led Screen

,

P4.81 HD LED Video Wall Panel

Outdoor P4.81 SMD LED Screen HD 250*250mm Module IP65 Scan 1/13


ph4.81 flexible displays

Specifications:

Good quality, creative, favorable price

P8mm Flexible led display-new

Largest SMD OEM/ODM manufacturer in China

- Can bent into irregular shapes flexibly

- Can be round, arc, waving,,, and other shapes

- Color your stage and make more choice except standard screens

- Avaiable pitch 6mm, 8mm, 10mm



Physical pixel pitch:4.81mm
Pixel configuration: 1R1G1B   Chip Wave Brightness Packing
R Opto 620-623nm 400mcd SMD-3528
G Silan 520+/_1nm 1000mcd SMD-3528
B Silan 470+/_1nm 200mcd SMD-3528
Module resolution: 52x52pixels
Module size: 250x 250mm
Brightness: 7500cd/sq
Brightness adjusted: 100 grade by software, or by Auto-optic induced
Color processing: 14bit
Display color: 4.4 trillion
Color temperature(k): 5000 — 9500 (choice by user)
Physical density: 43222pixels/m2
Whole display flatness: ≤ 1mm juncture
Best view distance: ≥ 7m
Best view angle: Horizontal ±80°, Vertical ±80°
Storage temperature: -35°C~ +85°CWorking temperature: -20°C~ +50°C
Driving method: Constant driving current Scan: 1/13

Short description

1.SMD LED with Best Color Uniformity and High Brightness.

2.High Refresh Rate and High Grey Grade with Reliable Driving IC.

3.Best Power Supply of Meanwell PSU of CE,UL Approved.

4.Waterproof IP65 LED Cabinet Can be Customized accroding to your LED Display Size.



Waterproof Die-Cast Aluminum Led Screen, P4.81 HD LED Video Wall Panel 250*250mm Module IP65 Scan 1/13 0

Waterproof Die-Cast Aluminum Led Screen, P4.81 HD LED Video Wall Panel 250*250mm Module IP65 Scan 1/13 1



1. Clear picture, no flicker and no mosaic.

2. support a variety of file formats, such as VGA, Video, AVI, MOV, MPG, DAT, VOB and so on.

3. low power consumption, stable performance, durability, IP65 waterproof rating

4. Brightness up to 6000 nits or more, wide viewing angle, brightness can be automatically or manually adjusted. 5.

5. 2-year warranty, easy to install and maintain 6. CE, ROHS and FCC certified



Waterproof Die-Cast Aluminum Led Screen, P4.81 HD LED Video Wall Panel 250*250mm Module IP65 Scan 1/13 2Waterproof Die-Cast Aluminum Led Screen, P4.81 HD LED Video Wall Panel 250*250mm Module IP65 Scan 1/13 3

Waterproof Die-Cast Aluminum Led Screen, P4.81 HD LED Video Wall Panel 250*250mm Module IP65 Scan 1/13 4

Waterproof Die-Cast Aluminum Led Screen, P4.81 HD LED Video Wall Panel 250*250mm Module IP65 Scan 1/13 5Waterproof Die-Cast Aluminum Led Screen, P4.81 HD LED Video Wall Panel 250*250mm Module IP65 Scan 1/13 6

Payment remarks:





1. Payment terms: 30% of TT in advance and 70% before delivery.

2. Delivery time (lead time): 12-15 working days after receiving the deposit.

3.Packing: Wooden case and flight case, as you decide.

4. Warranty: Warranty period: Free maintenance within 2 years after delivery.

5. Free Training: You can send engineers with electronic knowledge to our factory for training. We will provide free training on how to operate, maintain and repair the LED display.

6. Technical support: We can send engineers to your country for guidance, but you must help us to apply for visas and pay the related costs, such as round-trip air tickets, hotels, meals, etc. after the engineers arrive in your country.



Our company has been in LED Display field for more than 10 years,has a professional team and a series of equipment,can accept all size customized.Also,we are searching for more business cooperation,if you have interest,please contact us and let's talk more details!







You can visit our website to know more info about us!(www.rgbleddisplays.com)
