Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China(Mainland) |
| Brand Name: | SCXK |
| Certification: | ISO,CE,FCC,UL |
| Model Number: | SCXK-P5 |
| Minimum Order Quantity: | 5 sqms |
|---|---|
| Price: | 500-600USD/sqm |
| Packaging Details: | Wooden and flight cases,it's up to you. |
| Delivery Time: | 12-15 working days after receiving your down payment. |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000 sqms/month |
| Pixel Pitch: | 5mm | Control System: | Nova |
|---|---|---|---|
| Type Of Cabinet: | Die-cast Aluminum/Iron | Working Voltage: | DC5V |
| Outdoor Options: | P3.91,P4,P4.81,P5,P5.95,P6,P6.67,P8,P10 | Payment: | T/T,Western Union |
| Certifications: | CE,ISO,FCC,UL. | Application Places: | Shopping Mall,Stations,Airports，Commercial Centure... |
| Highlight: | HD Rental Soft Module,P2.5 P3 P4 P5 Soft Module |
||

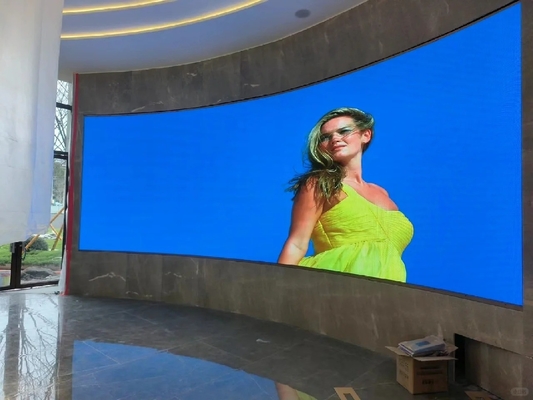

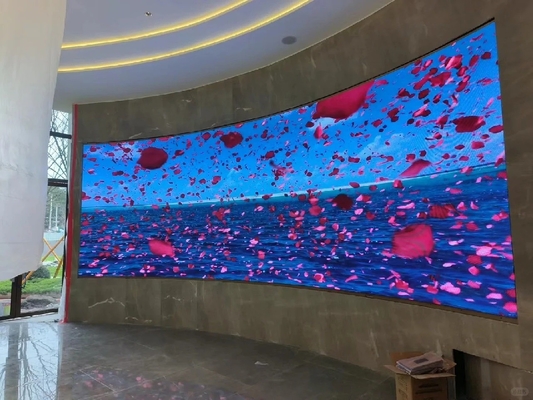

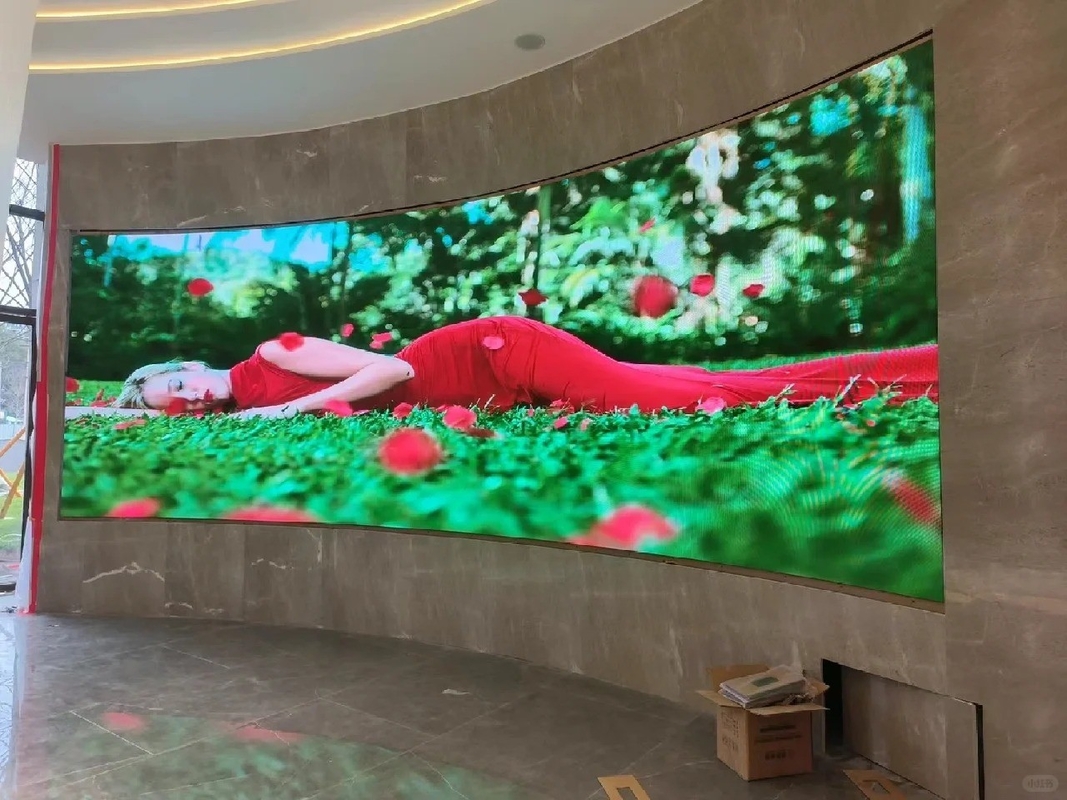

Full color HD P2.5 P3 P4 P5 indoor Fixed LED flexible Cylindrical Video Display 360 LED Screen
Other options :outdoor LED Display series
1. Automatic brightness control, super processing power, strong color reproduction.
2. Support various interfaces and signal sources.
3. Advanced digital control technology, excellent effect.
4. High brightness, even in direct sunlight, ensures you attract more audiences, thus quickly recovering your full-color outdoor LED display investment.
5. Anti-corrosion and durable, can be used outdoors in various weather conditions.
The LED module has a simple and easy-to-use installation interface and user-friendly software to ensure a user-friendly interface for the LED display system.
Full aluminum alloy structure, light weight, waterproof,
The SCX outdoor LED display is a perfect external multimedia LED display system designed for changeable and harsh outdoor environments.
Specifications of products:
| SMD LED Screen Indoor P5 | |||||
| Resolution/mm | 5 | ||||
| Pixel configuration | 1R1G1B | ||||
| Pixel density/pixels/m² | 40000/square meter | ||||
| Module resolution | 64*32mm | ||||
| Module size/mm | 320*160mm | ||||
| View distance | 5-300m | ||||
| Single point brightness adjust | Can be added | ||||
| Single point color adjust | Can be added | ||||
| White balance brightness | >8000cd/square meter | ||||
| Color temperature | 6500K-9500K | ||||
| Horizontal view angle | 120(degrees) | ||||
| Vertical view angle | 60(degrees) | ||||
| Signal Process bit | 10 or 16bit | ||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | ||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | ||||
| Driving mode | alternating driving current | ||||
| Scanning mode | 1/16 | ||||
| Fresh rate | 60Hz | ||||
| Refresh frequency | >3000Hz | ||||
| Control mode | Asynchronous,3G,4G,Wifi | ||||
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted | ||||
| 255 steps. No grey loss | |||||
| Out of control point | <1/10000 | ||||
| Aging hours | ≥72hours | ||||
| Mean Time Between Failure | >5000hours | ||||
| Life time | 100000hours | ||||
| Life-all-white(brightness halving) | 50000hours | ||||
| Environment temperature range | Operating temperature range: -20-45℃ | ||||
| Self-check technology | LED spot self-check, communications check, power check, | ||||
| temperature monitor(need customization) | |||||
| Remote monitoring | Remote supervision and control, record potential fault, | ||||
| send out warning signs to the operators.(need customization) | |||||
| Software environment | WindowsNT,Windows1999,WindowsXP | ||||
| Luminous point width between centres | Deviation<3% | ||||
| Brightness uniformity | <10% | ||||
| Waterproof | Ip43 | ||||
| Color uniformity(chromaticity coordinate) | ±0.003 | ||||
| Power supply request | AC85-264V(50Hz-60Hz) | ||||
| Contrast | (1000:1) | ||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | ||||
| Humidity(working) | working:10-95% | ||||
| Humidity(storing) | storing:10-95% | ||||
Quick description
1. Eliminate color spots or screen shadows by adjusting the brightness and color of each pixel individually
2. Use self-developed steel structure and special kit to maintain good flatness and smoothness.
3. Pass the strict waterproof test of Ip65.
4. Automatically adjust the brightness according to environmental changes to save energy.
5. Use special PVC kit to prevent corrosion according to coastal weather.
6. Automatically adjust the brightness according to environmental changes to save energy
7. Automatically turn on and off, unattended
Our service:
1. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
2. Warranty: 24 months.
3. Free technician training.
4. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
____________________________________FAQ_________________________________________
1.Except this model, are there any other models?
---yes, For indoor led screen we have p1.25,p1.56,p1.67,p1.87,p2, p2.5 p3 ,p3.91, p4 ,p4.81, p5 ,p6,p8,p10
For outdoor led screen we have p3,p3.91,p4,p4.81,p5, p5.95,p6,p6.67,p8, p10
2.Are you factory? and your warranty?
yes we are 10 years factory, 2 years warranty and lifetime maintenance
3.What's the function of your led screen?
It supports videos, flash, WAV/MIDI, PPT, images and so on
4.What's your delivery time?
Wthin 15-25 days after receiving deposit
5.What's your package and shipping way?
Goods are packed with wooden case or flight case; delivered by air or sea
Welcome to visit our website and inquire us more info,waiting for you all the time!!!
Contact Person: Lillian seori
Tel: +8619386814677
