Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China ,Guang Dong |
| Brand Name: | Shichuangxinke |
| Certification: | CE RoHS FCC CCC TUV UL |
| Model Number: | SCXK-P3.91 |
| Minimum Order Quantity: | 1 square meters |
|---|---|
| Price: | USD 1800-2700 per square meters |
| Packaging Details: | wooden box flight case, wooden case, carton, it is up to you. |
| Delivery Time: | 7-10 working days after deposit payment received |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 5000sqm per month |
| Resolution/mm: | 3.91 | Pixel Configuration: | 1R1G1B |
|---|---|---|---|
| Scanning Mode: | 1/8 Scanning | Module Size: | 250x250MM |
| Cabinet Size: | 500x1000MM | Material: | Aluminum |
| Warranty: | 3-5 Years | Certificates: | CE RoHS FCC CCC UL |
| Application: | Stadium,airport,shopping Mall,street Advertising | ||
| Highlight: | P3.91 Outdoor Rental Stage Backdrop,Outdoor Rental Stage Backdrop LED Display,Waterproof SMD Full Color LED Display |
||

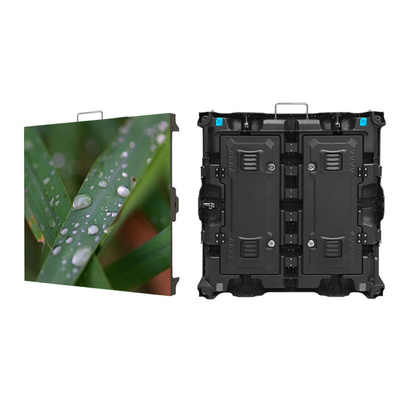

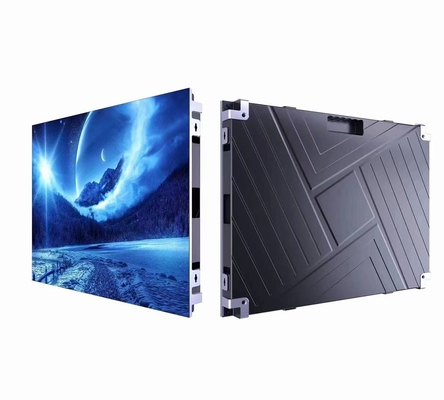

P3.91 Outdoor Rental LED Stage Backdrop Panel Display Stage Outdoor Waterproof SMD Full Color Led Display
Outdoor Stage Features:
1. Product features: ultra-thin, ultra-clear, ultra-bright, ultra-light:
2. Die-casting aluminum case, precision less than 0.1mm.
3. Simple installation, assembly and disassembly in 10 seconds;
4.Adopt Nova / Linsn / Mooncell system, high refresh rate, good display on camera, cell phone or TV;
5. Even under low brightness conditions, it can present almost perfect grayscale with rich layers and vivid colors;
6. Suitable for any indoor or outdoor, fixed or rental applications;
Outdoor Stage Description:
1, P3.91 SMD LED display with high resolution, suitable for outdoor LED screen;
2, Large viewing angle, 140 degrees both horizontally and vertically;
3, the use of electronic digital signage P3.91 is increasing because the trend of LED screen is high resolution.
4, Clear and vivid advertising images and videos;
5, 1000:1 high contrast ratio, presenting real and natural LED screen color;
6, IP65 waterproof rating, suitable for outdoor use;
Outdoor Stage Applications:
Airport Full Color Indoor LED displays advertising
Train station Indoor Full Color LED Displays
Entertainment Bar Indoor Full Color LED Screen
Stadium Indoor Full Color LED Display
Museum Full Color Indoor LED display
Car exhibition LED display
Conference room Indoor Full Color LED Video Display
Shopping Mall Indoor Full Color LED display
Outdoor Stage Specifications :
| outdoor Stage DIP P3.91 | |||||
| Resolution/mm | 3.91 | ||||
| Pixel configuration | 1R1G1B | ||||
| Pixel density/pixels/m² | 65410/m² | ||||
| Module resolution | 64x64 | ||||
| Module size/mm | 250x250MM | ||||
| View distance | 14-300m | ||||
| Single point brightness adjust | Can be added | ||||
| Single point color adjust | Can be added | ||||
| White balance brightness | >7500cd/㎡ | ||||
| Color temperature | 6500K-9500K | ||||
| Horizontal view angle | 120(degrees) | ||||
| Vertical view angle | 60(degrees) | ||||
| Signal Process bit | 10 or 16bit | ||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | ||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | ||||
| Driving mode | Constant driving current | ||||
| Scanning mode | 1/8 SCANNING | ||||
| Frame rate | 60Hz | ||||
| Refresh frequency | >3000Hz | ||||
| Control mode | Computer synchronous | ||||
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted | ||||
| 255 steps. No grey loss | |||||
| Out of control point | <1/10000 | ||||
| Working hours | ≥72hours | ||||
| Mean Time Between Failure | >5000hours | ||||
| Life time | 100000hours | ||||
| Life-all-white(brightness halving) | 50000hours | ||||
| Environment temperature range | Operating temperature range: -20-45℃ | ||||
| Self-check technology | LED spot self-check, communications check, power check, | ||||
| temperature monitor(need customization) | |||||
| Remote monitoring | Remote supervision and control, record potential fault, | ||||
| send out warning signs to the operators.(need customization) | |||||
| Software environment | WindowsNT,Windows1999,WindowsXP | ||||
| Luminous point width between centres | Deviation<3% | ||||
| Brightness uniformity | <10% | ||||
| Color uniformity(chromaticity coordinate) | ±0.003 | ||||
| Power supply request | AC85-264V(50Hz-60Hz) | ||||
| Contrast | (1000:1) | ||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | ||||
| Humidity(working) | working:10-95% | ||||
| Humidity(storing) | storing:10-95% | ||||
