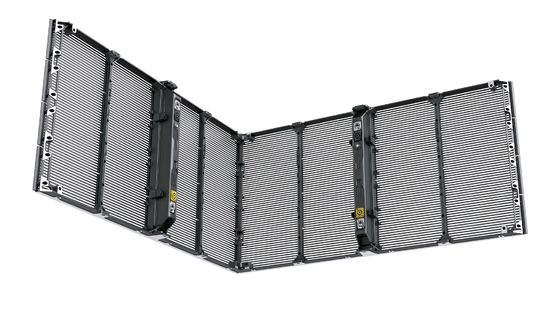

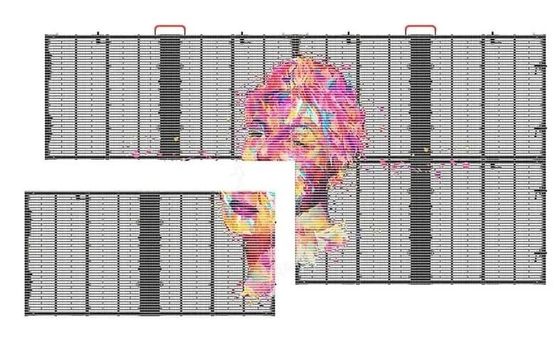

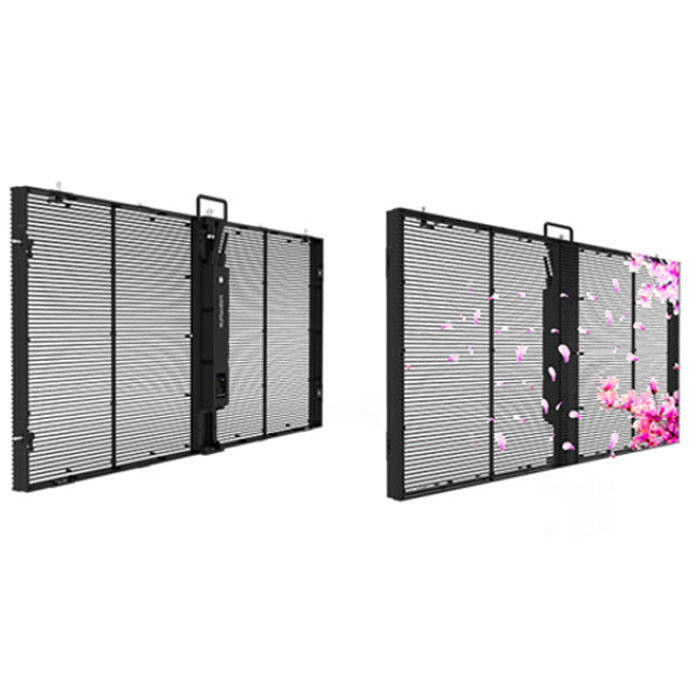

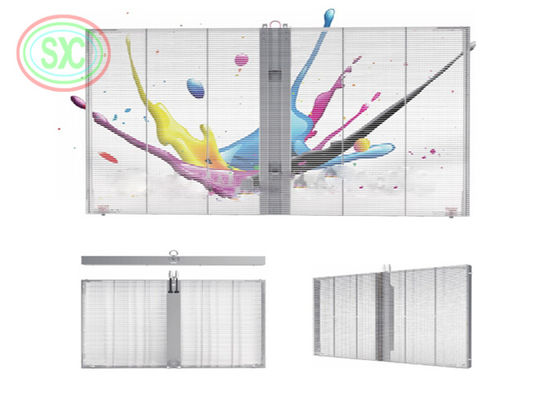

Transparent LED Screen Ultra Clear Large Stage Screen Full Color P3.91 High Refresh Rate 3840HZ

Transparent LED Screen Ultra Clear Large Stage Screen Full Color P3.91 High Refresh Rate 3840HZ

  • Transparent LED Screen Ultra Clear Large Stage Screen Full Color P3.91 High Refresh Rate 3840HZ
  • Transparent LED Screen Ultra Clear Large Stage Screen Full Color P3.91 High Refresh Rate 3840HZ
  • Transparent LED Screen Ultra Clear Large Stage Screen Full Color P3.91 High Refresh Rate 3840HZ
  • Transparent LED Screen Ultra Clear Large Stage Screen Full Color P3.91 High Refresh Rate 3840HZ
Transparent LED Screen Ultra Clear Large Stage Screen Full Color P3.91 High Refresh Rate 3840HZ
Product Details:
Place of Origin: China(Mainland)
Brand Name: SCX
Certification: FCC,UL,CE,ISO
Model Number: SCX-P3.91
Payment & Shipping Terms:
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: Carton,wooden and flight cases.
Delivery Time: 12-15 working days.
Payment Terms: Western Union, T/T, L/C, D/A, D/P, MoneyGram
Supply Ability: 5000sqm/month
Contact Now
Detailed Product Description
Pixel Pitch: 3.91mm Cabinet Size: 1000*500mm
Waterproof: IP43 Refresh Rate: 3840HZ
Brightness: 2500nits Drive Mode: 1/8
Installation: Indoor Warranty: 2 Years
Highlight:

Full Color Transparent LED Screen

,

3840HZ Transparent LED Screen

,

Ultra Clear Transparent LED Screen

Full Color P3.91 Transparent Screen High Refresh Rate 3840HZ 1000*500mm

Transparent LED Screen Ultra Clear Large Stage Screen Full Color P3.91 High Refresh Rate 3840HZ 0
 Transparent LED Screen Ultra Clear Large Stage Screen Full Color P3.91 High Refresh Rate 3840HZ 1Transparent LED Screen Ultra Clear Large Stage Screen Full Color P3.91 High Refresh Rate 3840HZ 2Transparent LED Screen Ultra Clear Large Stage Screen Full Color P3.91 High Refresh Rate 3840HZ 3
Transparent LED Screen Ultra Clear Large Stage Screen Full Color P3.91 High Refresh Rate 3840HZ 4Transparent LED Screen Ultra Clear Large Stage Screen Full Color P3.91 High Refresh Rate 3840HZ 5
Parameter description:


Resolution/mm3.91
Pixel configuration1R1G1B
Pixel density/pixels/m²32768dots/square meter
Module size/mm1000x500
View distance4-50m
Single point brightness adjustCan be added
Single point color adjustCan be added
White balance brightness2500cd/square meter
Color temperature6500K-9500K
Horizontal view angle120(degrees)
Vertical view angle60(degrees)
Signal Process bit10 or 16bit
Grey process1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distancesInternet cable:100m, multimembrane:500m, monofilm:2km
Driving modeConstant driving current
Scanning mode1/8
Frame rate60Hz
Refresh frequency3840Hz
Control modeComputer synchronous
Brightness adjusted rangeManual, automatic operation, stepless continuous adjusted
255 steps. No grey loss
Out of control point<1/10000
Working hours≥72hours
Mean Time Between Failure>5000hours
Life time100000hours
Life-all-white(brightness halving)50000hours
Environment temperature rangeOperating temperature range: -20-45℃
Maximum power:/square meter<950W
Average power:/square meter<350W
Self-check technologyLED spot self-check, communications check, power check,
temperature monitor(need customization)
Remote monitoringRemote supervision and control, record potential fault,
send out warning signs to the operators.(need customization)
Software environmentWindowsNT,Windows1999,WindowsXP
Luminous point width between centresDeviation<3%
Brightness uniformity<10%
Color uniformity(chromaticity coordinate)±0.003
Power supply requestAC85-264V(50Hz-60Hz)
Contrast(1000:1)
System protectionMoistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working)working:10-95%
Humidity(storing)storing:10-95%


Why choose us?

1.Rich experience for more than 10 years;

2.Strict control quality and supervision;

3.Good price for high quality products;

4.Quick delivery time-after receiving your down payment we will make the delivery right soon;

5.Satisfied after sales service-we will reply you all the questions in 3 hours;

6.We will provide you the free technical supply;



Advantage

1. We have the advantage of a full range of LED display production
2: Goods supply from indoor and outdoor P10, P8, P6, P4,P3,P3.91, P4.81, P2, P2.5, P1.976 have sufficient inventory, at the same time has high quality, let you buy at ease, use at ease
3. We have round-the-clock online customers to help customers and give customers product performance introduction, as
wellasproduct advantage analysis; According to the actual situation and the use of the situation, for the customer
evaluation,choosethe most reasonable scheme
4: At the same time, we can provide customers with professional training on the operation and maintenance of the led display
system Display troubleshooting
