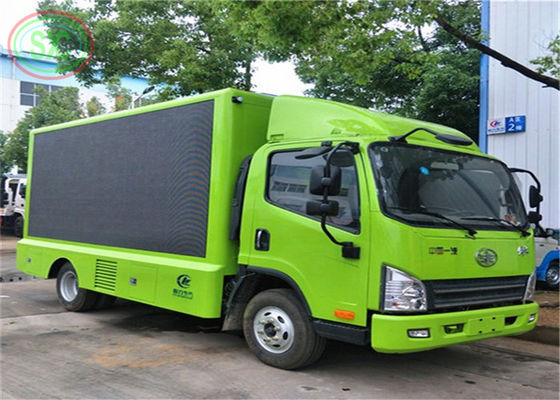

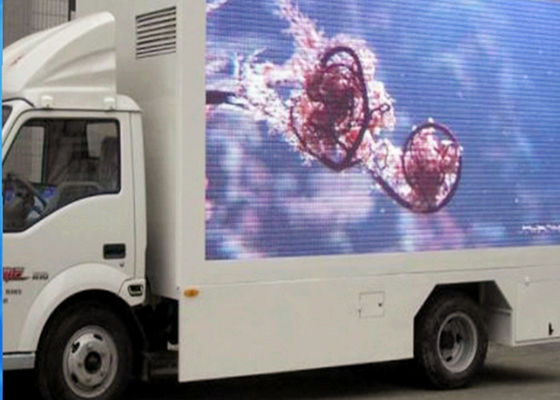

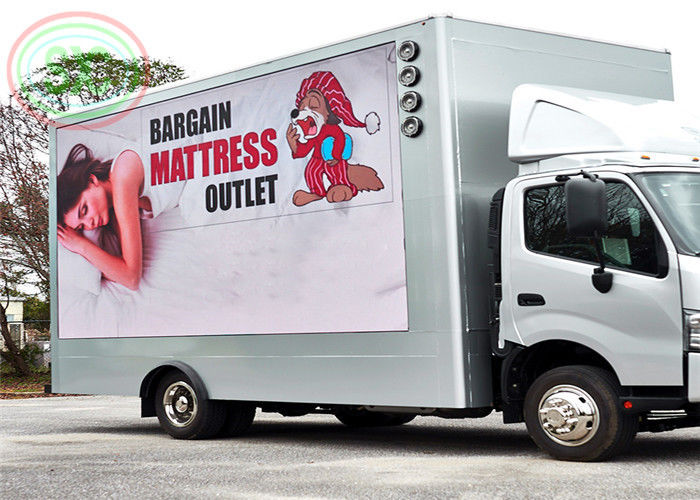

Name: IP65 Waterproof 10mm Truck LED Display SMD 3535
Brand: Shenzhen ShiXin Display Technology Co.,Ltd
SKU: P10
Price: 1,629.00 USD
Availability: InStock

Home Products Mobile Truck LED Display

IP65 Waterproof 10mm Truck LED Display SMD 3535

Product Details:

Place of Origin:	ShenZhen in China
Brand Name:	SCXK
Certification:	CE/ROHS/FCC/ISO/UL
Model Number:	P10

Payment & Shipping Terms:

Minimum Order Quantity:	2 sqm
Price:	negotiation
Packaging Details:	flight case, wooden case, carton, it is up to you.
Delivery Time:	7-10 working days after receive your payment
Payment Terms:	Western Union,MoneyGram,D/P,T/T,L/C
Supply Ability:	5000sqm per month

Contact Now

Detailed Product Description

Pixels:	10mm	Led Type:	SMD 3535
Display Function:	Video	Waterproof:	IP65
Frame Frequency:	>=60HZ	Average NO Failure:	>=1000hours
Transmiiting Distance:	Internet Cable <100m	Refresh Rate:	>=1920HZ
Maximum Power:	600m2	Module:	320*160mm
Cabinet Size:	960*960mm
Highlight:	IP65 Truck Mounted Led Display , Full Color Truck Mounted Led Display

IP65 Video Digital Truck Mounted LED Display Full Color 10mm Pixel Pitch

Product Specifications

Attribute	Value
Pixels	10mm
LED Type	SMD 3535
Display Function	Video
Waterproof	IP65
Frame Frequency	>=60HZ
Average NO Failure	>=1000hours
Transmitting distance	Internet cable <100m
Refresh Rate	>=1920HZ
Maximum power	600m²
Module	320*160mm
Cabinet size	960*960mm

Product Features

LED Screen: Uses imported EPISTAR chips with high illumination, long lifespan, high refresh frequency, and easy maintenance
Generator Set: Specially designed for this model with lower noise and stable operation
Lifting System: Uses electric puts with synchronization error of only 1mm
Vehicle Air-Conditioner: Cools LED screen, generator, and carriage while providing comfortable environment for staff
Multi-Media Control System: Integrated control cabinet with industrial computer, amplifier, and operation buttons

Applications

Outdoor and indoor advertising, digital billboards
Sports halls, fields, playgrounds, schools, churches
Airports, bus stations, and railway passenger terminals
Facades of shopping malls, department stores, banks, and car dealerships
Architecture and social projects, urban information systems
Show-business, concerts, festivals, motor shows, and public events

Technical Specifications

Model	Outdoor SMD P10
Resolution	10mm
Pixel Configuration	1R1G1B
Pixel Density	10000 pixels/m²
Module Resolution	32*16
Module Size	320*160mm
View Distance	12-300m
White Balance Brightness	>8000cd/㎡
Color Temperature	6500K-9500K
Viewing Angles	120° horizontal, 60° vertical
Frame Rate	60Hz
Refresh Frequency	3000Hz
Working Temperature	-20°C to +50°C
Maximum Power	<800W/m²
Average Power	<300W/m²
Warranty	2 years quality warranty, 10 years spare parts support
