3.91mm Transparent Full Color LED Screen Panel For Glass Curtain Walls

3.91mm Transparent Full Color LED Screen Panel For Glass Curtain Walls

Brand Name:	SCXK
Model Number:	P3.91-7.82
MOQ:	2 sqm
Price:	negotiation
Payment Terms:	T/T, Western Union
Supply Ability:	5000sqm per month

Detail Information

Product Description

Detail Information

Place of Origin:

ShenZhen in China

Certification:

CE/ROHS/FCC/ISO/UL

Pixels:

3.91-7.82mm

Tube Chip Color:

Full Color

Display Function:

Video/Text/Image

Cabinet Size:

500mm*1000mm/ 1000*1000mm

Frame Frequency:

>=60HZ

Average NO Failure:

>=1000hours

Transmiiting Distance:

Internet Cable <100m

Refresh Rate:

>=1920HZ

Maximum Power:

600m2

The Optimum:

200w/m2

Install Style:

Hoisting Fixed Installation

Packaging Details:

flight case, wooden case, carton, it is up to you.

Highlight:

P3.91mm-7.82mm Transparent LED Screen Panels

High Brightness Transparent LED Screen Panels

P3.91mm Transparent LED Screen

Product Description

P3.91mm-7.82mm Transparent LED Screen Panels High Brightness Full Color

Product Specifications

Attribute	Value
Pixels	3.91-7.82mm
Tube Chip Color	Full color
Display Function	Video/Text/Image
Cabinet Size	500mm1000mm/ 10001000mm
Frame Frequency	>=60HZ
Average NO Failure	>=1000hours
Transmitting distance	Internet cable <100m
Refresh Rate	>=1920HZ
Maximum power	600m²
The Optimum	200w/m²
Install style	Hoisting fixed installation

Product Description

Large Building Glass Curtain Wall Advertisement HD LED Transparent Display Screen 3.91mm

LED Transparent Features

The transparent LED screen is also called the LED glass curtain wall screen; the transparent screen unit modules can be hoisted, stacked, and can be spliced into a large area according to the size of the installation location.
It is a new product developed based on the traditional LED display, which consists of a single LED strip.
High transparency; the transparency is 60%～80%, the transparency is high, and it has little effect on the lighting of the building.
Good heat dissipation performance and light weight.
Suitable for building facades, suitable for installation in front of glass curtain walls.
Light weight, ultra-thin, convenient installation and maintenance, no structure, cost saving and efficiency improvement.
Optional maintenance before or after the screen increases the adaptability to installation conditions.

Applications

Widely used in glass curtain walls, shop windows, shopping malls, terminal buildings, automobile exhibition halls, exhibition halls, business halls, 4S shops, office glass curtain walls, etc.

Technical Parameters

Parameter	Value
Product Name	Transparent Advertising Display
Pixel Pitch	3.91-7.82mm
Module Size	1000mm*1000mm
Density	16384(dot/m²)
Cabinet Size	Customized
Led Standard	SMD2525
Brightness	≥4500CD
Pixel configuration	1R1G1B
Refresh Rate	1200HZ
Protection Level	IP43
Driving method	1/4 scan
View Angle	H:±150 degree V:±210 degree
Best View distance	8-100m
Power Consumption	900W/m²
Screen Life-span	≥100,000 hours
MTBF	≥5,000 hours
Blind Spot Rate	<1/50000
Power Supply Mode	AC220±10% 50Hz/AC110±10% 60Hz
Environment Temperature	-20°C~+60°C
Humidity	10%~90% RH
Display Content	Video, DVD, VCD, TV, picture, cartoon, graphics, texts, etc.
Transmission Distance	Multi mode fiber <500m, single mode fiber <30km, internet cable <100m
Certificate	CE, ROHS, FCC

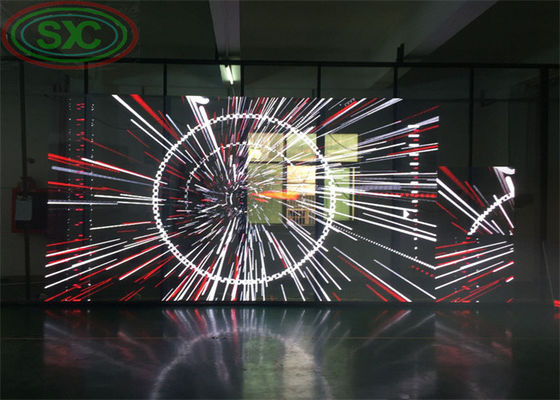

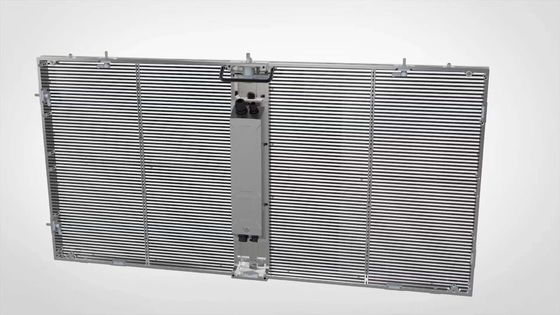

Product Images

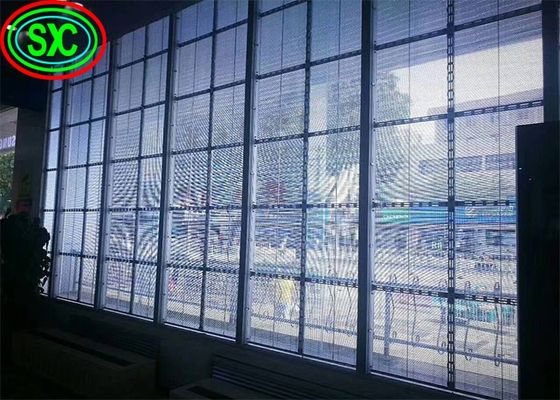

Installation of Transparent LED Screen

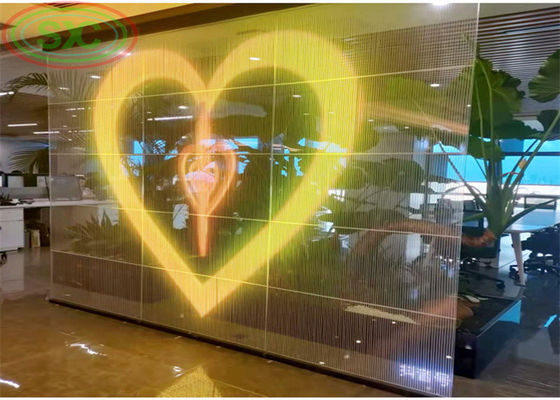

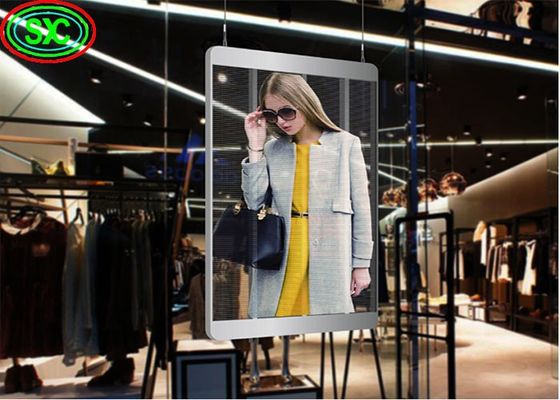

Project Case

Certificate

Package

Frequently Asked Questions

Q1. How could I buy the products I need if there is no price in the website?

You can send your inquiry to us about the products you need, our sales will reply you within 24 hours to help you make the order.

Q2. How long could I get reply of my inquiry?

You will get a reply within 24 hours.

Q3. What kind of warranty do you offer?

Different product offer different time frame warranty, but all product here we offer 1 year at least warranty.

Q4. How is the after sales service?

We have a professional team which is in charge of after-sales service, also a service hot-line dealing with your complains and feedback. We also offer 24-hour online service to help you solving problems.

Q5. What kind of payment methods do you have As a manufacturer?

We take T/T, Western union, L/C and Cash as payment terms.

Q6. How long will it take to deliver goods?

We will start preparing goods when we get your bank receipt. The package will be shipped out in 1-2 working days after we get your payment.

Q7. What kind of packaging you offer?

During the packaging process, preventive measures will be taken by us to assure that the goods are in a good condition during storage and delivery.
