New Popular Waterproof GOB LED Screen Indoor Fixed Video Wall For Studio led display

New Popular Waterproof GOB LED Screen Indoor Fixed Video Wall For Studio led display

Brand Name: SCX
Model Number: P1.667
MOQ: Negotiation
Price: negotiation
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram, L/C
Supply Ability: 3000 sqm per month
Detail Information
Place of Origin:
CHINA
Certification:
CE/ROHS/FCC/ISO/UL
Pixels:
1.667mm
Led Type:
SMD1515
Module Size:
200*150mm
Module Resolution:
120*90
Waterproof:
IP43
Cabinet Material:
Aluminum
Packaging Details:
flight case, wooden case, carton, it is up to you.
Highlight:

rgb led curtain

,

led curtain screen

Product Description

2020 New Popular Waterproof GOB Led Screen Indoor Fixed LED Video Wall for TV Studio



GOB Led Screen Features



1) Good brightness consistency, no mosaic

2) Can play different formats of picture files, flash, WAV/MIDI, TV video signals, video signals, etc.

3) Can freely switch different video frequencies at the same time, and the image can be enlarged and reduced

4) High refresh rate, adjustable to meet customer needs of changing environments

5) Waterproof






GOB Led Screen Parameters

Technical Parameters:
Item No./Model PH1.667
Pixel Composition: 1R1G1B
Pixel Pitch(mm) 1.667
Pixel Density(dots/m2) 360000
Brightness(cd/m2) 1000
Viewing Distance(m) ≥1.667
View Angle H:140°,V:10°
Gray Scale(level) 4096
Display Card DVI card
Control Mode  Synchronous
Drive Mode Static constant current
Refresh Rage Rate(HZ) 600
Working Temperature(°C) -25-- +85°C(for working)
Working Humidity 10%-95%RH
Model Size(mm) 200*150
Cabinet Size(mm): 400*300
Cabinet Weight(KG) 6
Cabinet Resolution(dots) 240*180
Cabinet Material Aluminum
Lifespan 100,000 hours

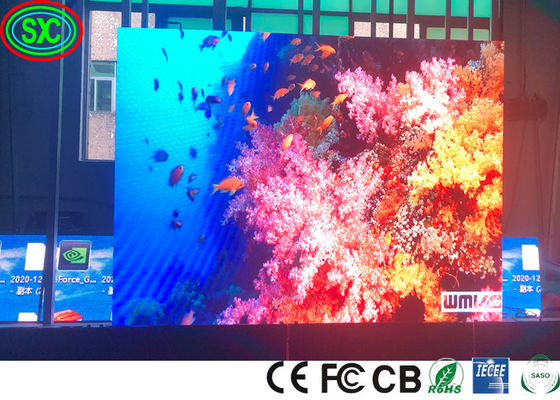

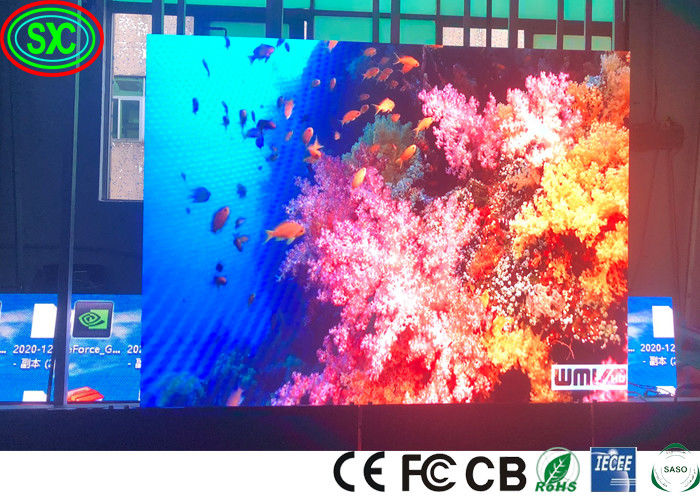

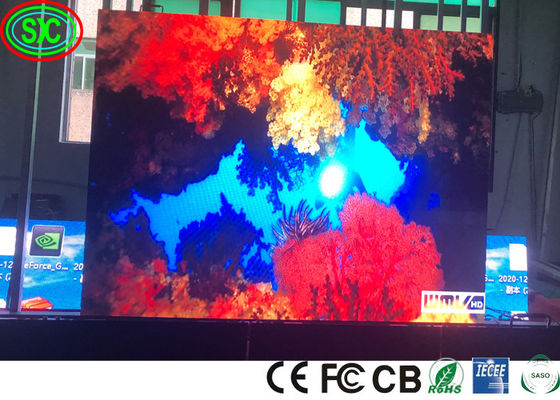

GOB LED Screen Pictures

New Popular Waterproof GOB LED Screen Indoor Fixed Video Wall For Studio led display 0






GOB LED Screen Production process

1)Incoming Inspection→2)SMD→3)Plug-in
→4)Wave Soldering→5)After Welding→6)Testing
→7)Semi Finished Aging→8)Module Assembly
→9)Gluing→10)Finished Aging→11)Detection Finishing Warehousing
