products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Transparent LED Screen
Created with Pixso.

G3.91-7.82mm Transparent LED Screen 500x1000mm Indoor Advertising Display

G3.91-7.82mm Transparent LED Screen 500x1000mm Indoor Advertising Display

Brand Name: SCXK
Model Number: P3.91
MOQ: 3 sqm
Price: 360-585$/sqm
Payment Terms: T/T, Western Union
Supply Ability: 5000sqm per month
Detail Information
Product Description
Detail Information
Place of Origin:
ShenZhen in China
Certification:
CE/ROHS/FCC/ISO/CB
Pixel Pitch:
3.91-7.82mm
Display Function:
Video/Text/Image
Cabinet Size:
500*1000mm
Frame Frequency:
>=60HZ
Average NO Failure:
>=1000hours
Transmiiting Distance:
Internet Cable <100m
Refresh Rate:
>=1920HZ
The Optimum:
200w/m2
Scan Mode:
1/16 Scan
Install Style:
Hoisting Fixed Installation
Packaging Details:
flight case/wooden case/carton
Highlight:

transparent led panel

,

transparent led display

Product Description
HD Full Color Video Advertising LED Screen G3.91-7.82 Indoor Window Glass Transparent LED Display
Product Specifications
Attribute Value
Pixel Pitch 3.91-7.82mm
Display Function Video/Text/Image
Cabinet Size 500*1000mm
Frame Frequency >=60HZ
Average NO Failure >=1000hours
Transmitting distance Internet cable <100m
Refresh Rate >=1920HZ
The Optimum 200w/m2
Scan Mode 1/16 scan
Install Style Hoisting fixed installation
High Brightness Transparent Glass Window Clear LED Screen Board Size 1000*500
Transparent LED Screen Advantages
  • Nice appearance and simple structures
  • Lightweight design for convenient transportation and installation, saving labor costs
  • Humanized operating interface with breakdown indicator lights for easy maintenance
  • Designed for quick installation and dismounting by one person without tools

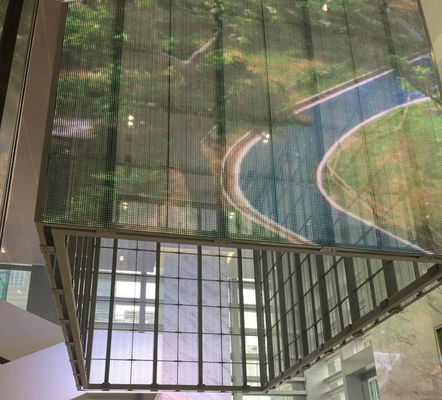

G3.91-7.82mm Transparent LED Screen 500x1000mm Indoor Advertising Display 0
Transparent LED Screen Applications
  • Outdoor and indoor advertising, digital billboards
  • Airports, bus stations and railway passenger terminals
  • Architecture and social projects, urban information systems
  • Show-business, concerts, festivals, motor shows and public events
  • Sports halls, fields, playgrounds, schools and churches
  • Facades of shopping malls, department stores, banks and car dealerships

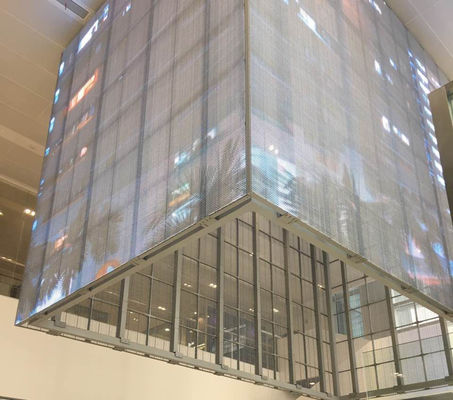

G3.91-7.82mm Transparent LED Screen 500x1000mm Indoor Advertising Display 1
Technical Specifications
Item Specifications
LED Module Color configuration: SMD2121/1921 1R1G1B 3 in 1
Pixel Pitch(mm) 3.91x7.81mm | 7.81*7.81mm
Module Size(mm) 500(W)×125(H)
Module Weight(kg) 0.35
Module Max Power(W) 25
Module Quantity(W×H) 2×4
Cabinet Resolution(W×H) 256×64 | 128×64
Cabinet Size(mm) 1000(W)×500(H)×80(D)
Cabinet Weight(kg) ≤6
Pixel Density(Dot/m2) 16384
Transparency 55%-72%
Cabinet Material Die Casting Aluminum
Brightness Control Level 256 degree by software
Brightness Control Mode Automatically/Manual Operation
Brightness at White(nits) ≥800, can be adjusted
Viewing Angel(H/V°) 140/140
Max. Power(W/㎡) 380
Ave.Power(W/㎡) 190
AC Input AC110~220V10%, 50~60Hz
Drive Mode 1/16Scan | 1/8Scan
Grey Scale 16bits
Refresh rate ≥3840Hz/s, can be adjusted
Life Span >100,000H
Working Temperature,Humidity -20℃~+50℃
Screen Display

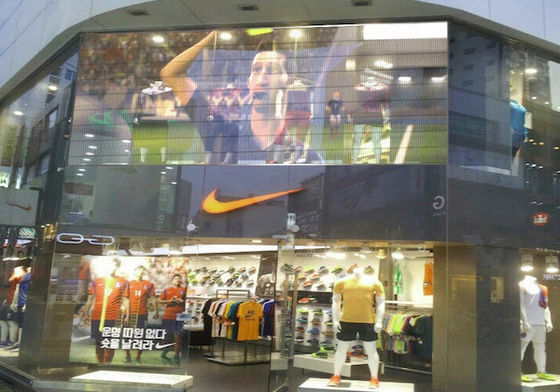

G3.91-7.82mm Transparent LED Screen 500x1000mm Indoor Advertising Display 2
Packaging and Shipping
  • Wooden case or flight case package
  • Shipping by sea, air or DHL with multiple shipping options
Production Process
  1. Incoming Inspection
  2. SMD
  3. Plug-in
  4. Wave Soldering
  5. After Welding
  6. Testing
  7. Semi Finished Aging
  8. Module Assembly
  9. Gluing
  10. Finished Aging
  11. Detection Finishing Warehousing
Customer Support

Our professional team provides comprehensive support for all your needs.
