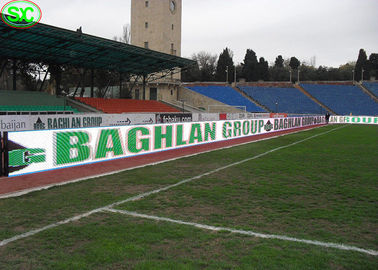

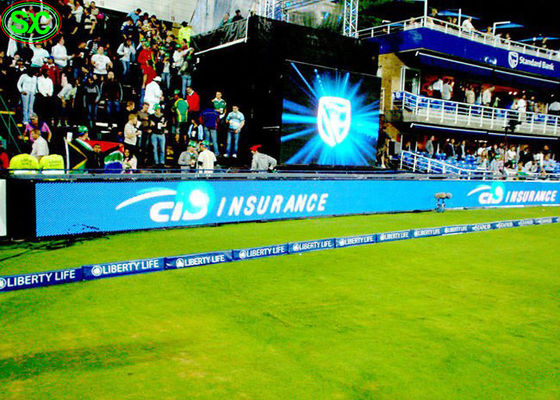

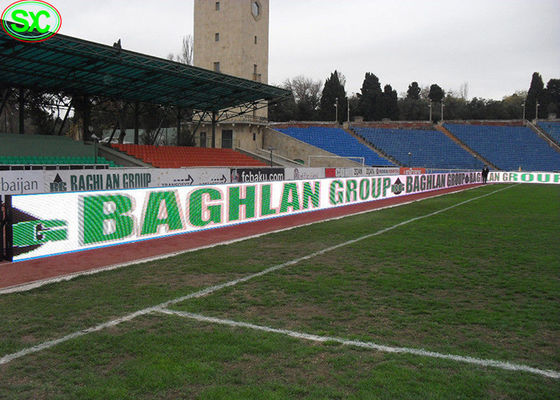

P10 RGB Football Stadium LED Display , 5000hz High refresh rate 5 year warranty

P10 RGB Football Stadium LED Display , 5000hz High refresh rate 5 year warranty

P10 RGB Football Stadium LED Display , 5000hz High refresh rate 5 year warranty
P10 RGB Football Stadium LED Display , 5000hz High refresh rate 5 year warranty
P10 RGB Football Stadium LED Display , 5000hz High refresh rate 5 year warranty
Product Details:
Place of Origin: China
Brand Name: SCXK
Certification: CE/ROHS/FCC/ISO/UL
Model Number: p10
Payment & Shipping Terms:
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: flight case, wooden case, carton, it is up to you.
Delivery Time: 7-10 working days after receive your payment
Payment Terms: T/T, Western Union
Supply Ability: 5000sqm per month
Contact Now
Detailed Product Description
Brand Name: SCXK OR OEM Model Number:: P10
LED Chip:: Taiwan Epistar Module Size: 320x160, 160x160
Color: RGB Warranty: 5 Years OR 3 Years For Choose
High Light:

perimeter led display

,

led perimeter advertising boards

P10 RGB Football Stadium LED Display , 5000hz High refresh rate 5 year warranty



♦ Description:

It's the sweet 10mm LED large screen system you've been looking for. It produces vivid, color rich images in any lighting condition from wide viewing angles.From even modest distances, viewers will get the feeling they are watching TV at their homes. Configure it the way you want it –in virtually any shape or size and see your content come alive like never before.



♦ Technical specification



outdoor  SMD P10
Resolution/mm 10
Pixel configuration 1R1G1B
Pixel density/pixels/m² 10000/m²
Module resolution 16x16
Module size/mm 160x160
View distance 9-500m
Single point brightness adjust Can be added
Single point color adjust Can be added
White balance brightness >8000cd/㎡
Color temperature 6500K-9500K
Horizontal view angle 120(degrees)
Vertical view angle 60(degrees)
Signal Process bit 10 or 16bit
Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances Internet cable:100m, multimembrane:500m, monofilm:2km
Driving mode Constant driving current
Scanning mode (1/4)
Frame rate 60Hz
Refresh frequency >4200Hz
Control mode Computer synchronous
Brightness adjusted range

Manual, automatic operation, stepless continuous adjusted

255 steps. No grey loss

Out of control point <1/10000
Working hours ≥72hours
Mean Time Between Failure >5000hours
Life time 100000hours
Life-all-white(brightness halving) 50000hours
Environment temperature range Operating temperature range: -20-45℃
Maximum power:/㎡ <950W
Average power:/㎡ <350W
Self-check technology

LED spot self-check, communications check, power check,

temperature monitor(need customization)

Remote monitoring

Remote supervision and control, record potential fault,

send out warning signs to the operators.(need customization)

Software environment WindowsNT,Windows1999,WindowsXP
Luminous point width between centres Deviation<3%
Brightness uniformity <10%
Color uniformity(chromaticity coordinate) ±0.003
Power supply request AC85-264V(50Hz-60Hz)
Contrast  (1000:1)
System protection Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working) working:10-95%
Humidity(storing) storing:10-95%



♦ Production process



1) Incoming Inspection→2)SMD→3)Plug-in

→4) Wave Soldering→5)After Welding→6)Testing

→7) Semi Finished Aging→8)Module Assembly

→9) Gluing→10)Finished Aging→11)Detection Finishing Warehousing



♦ p10 Module waterproof IP65

P10 RGB Football Stadium LED Display , 5000hz High refresh rate 5 year warranty 0

♦ Packaging and shipping



Wooden case or flight case package are available.

Shipping by sea,air or DHL,multiple shipping ways for your choice.



♦ Applications



 --- Outdoor and indoor advertising, digital billboards, advertising companies
 --- Sports halls, fields, playgrounds,school church
 --- Airports, bus stations and railway passenger terminals.
 --- Facades of shopping malls, department stores, banks and car dealerships.
 --- Architecture and social projects, information systems in cities.
 --- Show-business, concerts, festivals, motor shows and other public events.



♦ Why choose us



Continues Quality

With more than 10 years experience in led display producing,equipments are updated regularly.What’s

more,unique standardized and module production ensure our products continuous quality.



Competitive Price

With large scale production capacity and professional production technology,our company have built

effective modular production.We always stick to promote the technical innovation and reduce cost to

benefit customers.



Fast Delivery

Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency

inventory will be used to maintain your uninterrupted supply of the products.



Perfect Service

Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to

you.

After-sales:We will track the products usage and then constantly perfect our products.



P10 RGB Football Stadium LED Display , 5000hz High refresh rate 5 year warranty 1
