Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.

|
| Place of Origin: | ShenZhen in China |
| Brand Name: | SCXK |
| Certification: | CE/ROHS/FCC/ISO/CB |
| Model Number: | P3.91 |
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | flight case, wooden case, carton, it is up to you. |
| Delivery Time: | 7-10 working days after receive your payment |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000sqm per month |
| Pixels: | 3.91mm | Tube Chip Color: | Full Color |
|---|---|---|---|
| Led Type: | SMD2121 | Display Function: | Video/Text/Image |
| Waterproof: | IP43 | MBI: | 5024 |
| Viewing Angle: | H:160 V:140 | Optimal Viewing Distance: | >=4m |
| Voltage: | DC5V | Brightness: | 1000cd/㎡ |
| Pixel Composing: | 1 R1G1B | LED Parameter: | R:625-630nm |
| Module: | 250*250mm | ||
| Highlight: | led full color screen,indoor led display screen |
||
1R1G1B Rental Indoor Led Display Screen P3.91 Die Casting Aluminum for meeting room TV stadiuo
♦ Product specification
| Indoor SMD P3.91 | ||||||||||||||
| Lamp size | 2121/1921 | |||||||||||||
| Resolution/mm | 3.91 | |||||||||||||
| Pixel configuration | RGB 3 in 1 | |||||||||||||
| Pixel density/pixels/m² | 65140/m² | |||||||||||||
| Module resolution | 64x64 | |||||||||||||
| Module size/mm | 250x250 | |||||||||||||
| View distance | ≥3m | |||||||||||||
| Single point brightness adjust | Can be added | |||||||||||||
| Single point color adjust | Can be added | |||||||||||||
| White balance brightness | >1000cd/㎡ | |||||||||||||
| Color temperature | 6500K-9500K | |||||||||||||
| Horizontal view angle | 120(degrees) | |||||||||||||
| Vertical view angle | 60(degrees) | |||||||||||||
| Signal Process bit | 10 or 14 bit | |||||||||||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | |||||||||||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:5km | |||||||||||||
| Driving mode | Constant driving current | |||||||||||||
| Scanning mode | 1/16 | |||||||||||||
| Frame rate | 60Hz | |||||||||||||
| Refresh frequency | >3000Hz | |||||||||||||
| Control mode | Computer synchronous | |||||||||||||
| Brightness adjusted range |
Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
|||||||||||||
| Out of control point | <1/10000 | |||||||||||||
| Working hours | ≥72hours | |||||||||||||
| Mean Time Between Failure | >5000hours | |||||||||||||
| Life time | 100000hours | |||||||||||||
| Life-all-white(brightness halving) | 50000hours | |||||||||||||
| Environment temperature range | Operating temperature range: -20-45℃ Storing temperature range: -30-65℃ | |||||||||||||
| Maximum power:/㎡ | <1100W | |||||||||||||
| Average power:/㎡ | <280W | |||||||||||||
| Self-check technology |
LED spot self-check, communications check, power check, temperature monitor(need customization) |
|||||||||||||
| Remote monitoring |
Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
|||||||||||||
| Software environment | WindowsNT,Windows1999,WindowsXP | |||||||||||||
| Luminous point width between centres | Deviation<3% | |||||||||||||
| Brightness uniformity | <10% | |||||||||||||
| Color uniformity(chromaticity coordinate) | ±0.003 | |||||||||||||
| Power supply request | AC85-264V(50Hz-60Hz) | |||||||||||||
| Contrast | (1000:1) | |||||||||||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | |||||||||||||
| Humidity(working) | working:10-95% | |||||||||||||
| Humidity(storing) | storing:10-95% | |||||||||||||
High definition Indoor Full Color LED Display video wall panel P2 P2.5 P3 P4 P5 P6
|
Technicial Parameters
|
|
|
Brand
|
SCX
|
|
Module Size
|
250*250mm
|
|
Cabinet Size
|
500*1000mm
|
|
Brightness
|
about 1,100nits
|
|
Refresh Rate
|
1920Hz
|
|
Weight
|
about 12.5kg/cabinet
|
|
Life Span
|
>100,000 hours
|
|
Material
|

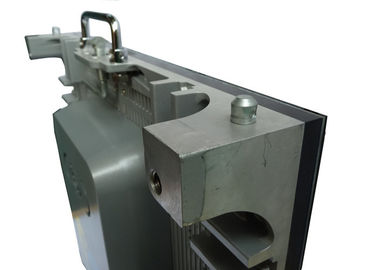

Die-Casting Aluminum Cabinet
|
|
|
||
| Our Company | ||
|
SCXK has been specialized in LED field since 2005. We are a leading manufacturer an provider of technical solution of full color indoor an outdoor ledisplay,rental LED display, led modules where in Shenzhen ctiy,Guangdong province,China. in Shenzhen China is a real factory who making LED sign /display /billboard |
Our Service
Quality is a soul of an enterprise; Service is a purpose of an enterprise.
Our goal is to provide our customers with the highest value of the service and professional solutions.
Pre-sales service
our team design and make solutions based on different requirements from different customers, any special design we can do, what you can think is what we can do.
After-sales services
1. We provide customer service through Skype, phone or email, provide video or drawing to solve customer's problem.
2. We provide remote control service through internet to achieve real time service, which will short the customer problem solving.
3. We provide one professional engineer only for you for fast reply.
Installation Services
1. We provide detailed CAD drawing to customer to prepare metal structure.
2. We could dispatch our engineer to your place help for guide installation and free training.
3. Special designs have special solutions, we will satisfy all customer requirements to make perfect solutions.
