| Place of Origin: | China |
| Brand Name: | SCX |
| Certification: | CE,ROHS,FCC,SASO |
| Model Number: | P8 |
| Minimum Order Quantity: | 3 SQM |
|---|---|
| Price: | USD 1000-10000 |
| Packaging Details: | Wooden Case , Size: 60x62x50cm, Wooden Case, Size:70x65x55cm |
| Delivery Time: | 7 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 3000 sqm per month |
| Led Cabinet: | 1024*1024mm | Screen Refresh Frequency: | ≥3840Hz |
|---|---|---|---|
| Single-point Brightness Correction: | Available | Viewing Distance: | ≥8m |
| Brightness Adjustment: | 0-100% 8 Levels | Gamma Correction: | (-0.5—5.0) |
| Warranty: | 3 Years,1 Year,5 Years,3~5 Years,2-3 Years | Color: | Full Color,1R1G1B,1R,Full-color,1B |
| Working Voltage: | DC5V,5V | ||
| Highlight: | full color outdoor led display,outdoor full color led screen |
||
Pantallas LEDs gigantes full color de exterior DIP / SMD HD P3 P4 P8 P10 P12 P16 outdoor led display/ led screen
Description
P8 SMD outdoor full color LED display screen adopts physical SMT technology which makes the picture more clear and vivid, no flicker and blind dots. The screen is manufactured in a waterproof and dustproof design so it can work very well in rain and sunshine.
It characterized by perfect vivid image, super brightness, high refresh rate, long life span and stable work, and waterproof, etc.
It is widely used in advertising, sports, industrial enterprise, transportation, stations, terminals, airports, construction, education system and other public places.
Features
1: Adopting Taiwan Epistar big LED chip, the brightness is over 7500nits;
2: High colour output: 16-bit colour, the image is vivid and lively, attracting the viewers' eyes and making your advertisement very effective.
3: High refresh rate above 3840HZ/S; no scan lines when you take photos or videos.
4 HIGH WATERPROOF FUNCTION: The back door of our cabinet has a special cover, no need for extra frame to protect the back side from water.
Technical Parameters
| Pixel Pitch | 8mm |
| Pixel Density | 15625dots/sqm |
| Color Configuration | 1R1G1B |
| LED Package | SMD3535 |
| Module Size | 256mm x 128mm |
| Module Resolution | 32dots x 16dots |
| Drive Mode | 1/4Scan, Constant Current |
| Brightness | 6500cd/sqm |
| Viewing Distance | 8m-200m |
| Interface Port | HUB-75 |
| Module Weight | 0.3KG/pcs |
| Viewing Angle | H: 140°; V:140° |
| Refresh Rate | 3840HZ |
| Standard Cabinet Size | 1024m x 1024mm |
| Cabinet Weight | 40G/pcs |
| Frame Rate | 120frame/sec |
| Grey Scale | 16.7M colors(Synchronized) |
| Power Input | AC110V/ 220V ±10%, 50HZ |
| Max Power Consumption | 650W/sqm |
| Ave. Power Consumption | 250W/sqm |
| Working Temperature | -20℃~+50℃ |
| Blind Spot Rate | <1/10000 |
| Life Span | >100,000 Hours |
| Waterproof | IP65 |
| Operating Humidity | 10%~95% |
| Control Method | Synchronous, 4G, WIFI, USB |
| Control PC | With DVI Graphic card |
| Operating System |
Win 98, Win2000, XP, Win7, Win8 , Win10 etc |

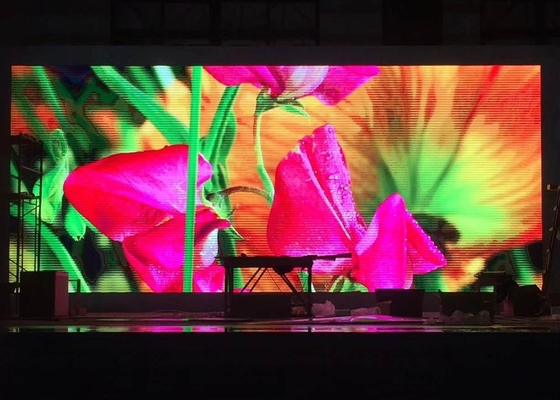

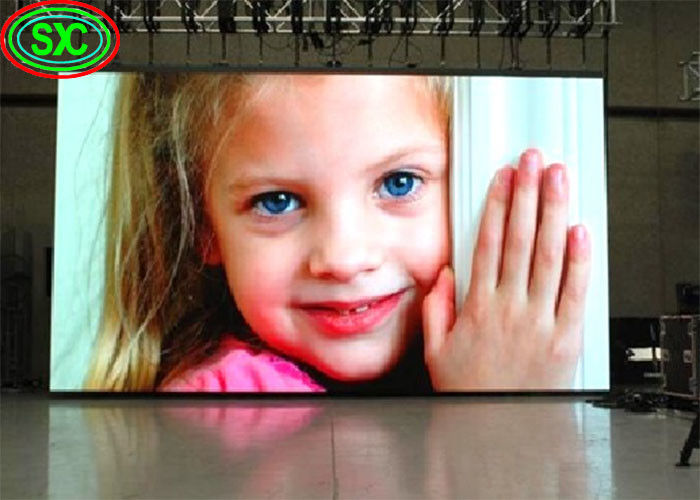

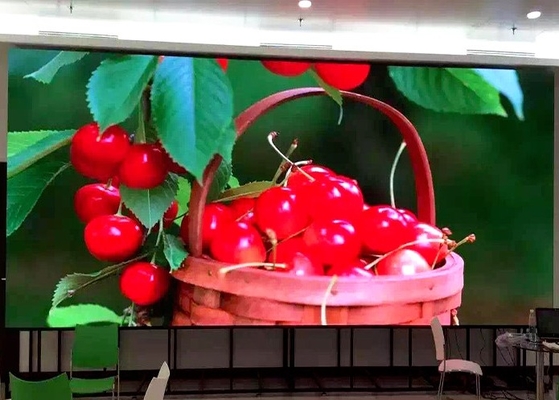

Cases
Our Service
Pre-sale service
1. Reply enquiries in 24 hours.
2. Market research and forecast for customer.
3. Provide professional solutions based on customer's requirement.
4. Offer sample and all document as customers required.
5. Other services, such as factory visiting and so on.
In-sale service
1. Tracking report of production.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.
After-sale service
1. Lifetime maintenance and software upgrade.
2. Complaint respond period not exceed 24 hours, maintenance guidance and problem solution supplied in 48 hours.
3. Free technician training.
4. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
5. Engineer guide installation onsite if needed.
