|Place of Origin:||CHINA|
|Model Number:||SMD P2.5|
|Minimum Order Quantity:||1 sqm|
|Packaging Details:||flight case, wooden case, carton, it is up to you.|
|Delivery Time:||7-10 working days|
|Payment Terms:||L/C, T/T, Western Union, MoneyGram|
|Supply Ability:||5000 sqm month|
|Pixel Configuration:||RGB 3 In 1||Pixel Density/pixels/m²:||160000/m²|
|Module Size/mm:||160*160||Scanning Mode:||1/16|
|Refresh Frequency:||>4200Hz||Led Chip:||Epistar|
P2.5 HD digital indoor full color LED display, RGB 3 IN 1, pixel intensive 160000/m2

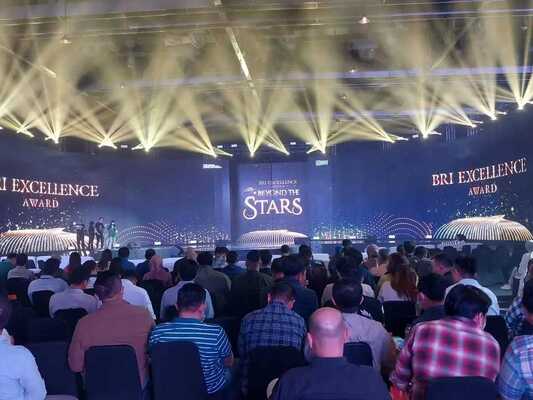

P2.5 Led display widely used in indoor stadiums, business applications, banking, securities, postal services, terminals, shopping malls, railway stations, postal services, telecommunications, agencies, monitoring, schools, restaurants, hotels, entertainment, businesses and other places of different indoor advertising.
♦ Product specification
|indoor SMD P2.5|
|Pixel configuration||RGB 3 in 1|
|Single point brightness adjust||Can be added|
|Single point color adjust||Can be added|
|White balance brightness||>2500cd/㎡|
|Horizontal view angle||120(degrees)|
|Vertical view angle||60(degrees)|
|Signal Process bit||10 or 14 bit|
|Grey process||1024x1024x1024 16834x16834x16834 65536x65536x65536|
|Control distances||Internet cable:100m, multimembrane:500m, monofilm:5km|
|Driving mode||Constant driving current|
|Control mode||Computer synchronous|
|Brightness adjusted range||
Manual, automatic operation, stepless continuous adjusted
255 steps. No grey loss
|Out of control point||<1/10000|
|Mean Time Between Failure||>5000hours|
|Environment temperature range||Operating temperature range: -20-45℃ Storing temperature range: -30-65℃|
LED spot self-check, communications check, power check,
temperature monitor(need customization)
Remote supervision and control, record potential fault,
send out warning signs to the operators.(need customization)
|Luminous point width between centres||Deviation<3%|
|Color uniformity(chromaticity coordinate)||±0.003|
|Power supply request||AC85-264V(50Hz-60Hz)|
|System protection||Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration|
|Items||Indoor Led display:
p1.5, P2, P2.5, P3, P3.91, P4,P4.81, P5, P6, P7.62, P10
Outdoor Led display:
P4, P4.81, P5, P6, P8, P10, P12, P16,P20,P25,P31.25
|Material||steel,aluminum ,die casting aluminum|
|30% deposit before production, 70% balance before shipping|
|Packing:||Standard Export Carton with fully Polyfoam or Pearl Wool|
|Anti-shaking wooden case|
|Shipping:||5 to 7 working days upon receiving deposit payment|
|After-Sales-Service:||Lifetime with professional engineer support for free.|
|Within 5 year, supply spare parts for free if has quality problem
( not by man-made damage)
|Using Range||Shopping mall,bank,bus station, train station,
center of downtown, airport, school, factory, bus, taxi,and so on.
♦ Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing
♦ Our advantages
Professional Manufacturer of led display
1. OEM service,No MOQ
2. Easy installation,regular items in Stocks
3. Offering free design drawing as requested.
4. Remote controlling and adjusting are available.
5. Wooden case or flight case,you are the boss.
6. Your reply will be replied within 24 hours.
7. Fast delivery: Usually 6-8 working days
8. Excellent R&D team,factory Price and assure you quality goods.
♦ Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
♦ Methods for Quality Assurance
1) 100% fully test
2) Condition: 72 hours with 256 grey level
b. Vibration Testing
Condition: 3-5 mins up and down in 5mm range
♦ Our workshop
♦ Why choose us:
With more than 12 years experience in led display producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products continuous quality.
With large scale production capacity and professional production technology,our company have built
effective modular production.We always stick to promote the technical innovation and reduce cost to
Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the products.
Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to
After-sales:We will track the products usage and then constantly perfect our products.
