Place of Origin: | CHINA |
Brand Name: | SCXK |
Certification: | CE/ROHS/FCC/ISO/UL |
Model Number: | P10 |
Minimum Order Quantity: | 13 sqm |
---|---|
Price: | negotiation |
Packaging Details: | flight case, wooden case, carton, it is up to you. |
Delivery Time: | 3-12 workin days |
Payment Terms: | L/C, T/T, Western Union, MoneyGram |
Supply Ability: | 4600 sqm month |
Application:: | Outdoor Advertising | Color:: | RGB |
---|---|---|---|
Panel Size:: | 320x160mm | Product Name:: | P10 Outdoor Led Display |
LED Chip:: | Epistar | Brightness:: | 5500cd/sqm |
Power Supply:: | Meanwell | Life Span:: | 100000hours |
Warranty:: | 2 Years | Certificate:: | CE ROHS FCC CCC ISO9001 |
High Light: | full color led signs outdoor,full color outdoor led display |
SCX LED P10 outdoor LED Display Screen LED full Color High definition RGB HD fixed led display
Future:
1.Classic module design, superior product performance, stability.
2.Uniform color, high contrast, beautiful natural picture.
3.New perspective optimization design, covering the mainstream audience.
4.Anti UV, anti deformation module suite to protect the screen body deformation.
5.Patent design with unique color mask processing, showing the industry leading ultra high contrast.
6.Multiple waterproof casing design, single box full inspection factory, the protection level IP65 mature signal transmission architecture, equipped with the upgraded version of power management technology, the use of more secure and reliable.
7.Patent design with unique color mask processing, showing the industry leading ultra high contrast.
8.Ultra low temperature free fan design, low temperature rise, small attenuation, long service life.
♦ Product specification
outdoor SMD P10 | ||||||||||||||
Resolution/mm | 10 | |||||||||||||
Pixel configuration | 1R1G1B | |||||||||||||
Pixel density/pixels/m² | 10000/m² | |||||||||||||
Module resolution | 32*16 | |||||||||||||
Module size/mm | 320*160 | |||||||||||||
View distance | 9-400m | |||||||||||||
Single point brightness adjust | Can be added | |||||||||||||
Single point color adjust | Can be added | |||||||||||||
White balance brightness | >8000cd/㎡ | |||||||||||||
Color temperature | 6500K-9500K | |||||||||||||
Horizontal view angle | 120(degrees) | |||||||||||||
Vertical view angle | 60(degrees) | |||||||||||||
Signal Process bit | 10 or 16bit | |||||||||||||
Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | |||||||||||||
Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | |||||||||||||
Driving mode | Constant driving current | |||||||||||||
Scanning mode | (1/4) | |||||||||||||
Frame rate | 60Hz | |||||||||||||
Refresh frequency | >3500Hz | |||||||||||||
Control mode | Computer synchronous | |||||||||||||
Brightness adjusted range |
Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
|||||||||||||
Out of control point | <1/10000 | |||||||||||||
Working hours | ≥72hours | |||||||||||||
Mean Time Between Failure | >5000hours | |||||||||||||
Life time | 100000hours | |||||||||||||
Life-all-white(brightness halving) | 50000hours | |||||||||||||
Environment temperature range | Operating temperature range: -20-45℃ | |||||||||||||
Maximum power:/㎡ | <900W | |||||||||||||
Average power:/㎡ | <350W | |||||||||||||
Self-check technology |
LED spot self-check, communications check, power check, temperature monitor(need customization) |
|||||||||||||
Remote monitoring |
Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
|||||||||||||
Software environment | WindowsNT,Windows1999,WindowsXP | |||||||||||||
Luminous point width between centres | Deviation<3% | |||||||||||||
Brightness uniformity | <10% | |||||||||||||
Color uniformity(chromaticity coordinate) | ±0.003 | |||||||||||||
Power supply request | AC85-264V(50Hz-60Hz) | |||||||||||||
Contrast | (1000:1) | |||||||||||||
System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | |||||||||||||
Humidity(working) | working:10-95% | |||||||||||||
Humidity(storing) | storing:10-95% |
Product overviews | |
Items | Indoor Led display: P1.5 P2, P2.5, P3, P3.91, P4,P4.81, P5, P6, P7.62, P10 Outdoor Led display: P4, P4.81, P5, P6, P8, P10, P12, P16,P20,P25,P31.25 Dance floor led display DJ led screen Transparent led display |
Material | steel,aluminum ,die casting aluminum |
Certificates | CE, FCC,RoHS, CCC, UL |
Payment terms |
30% deposit before production, 70% balance before shipping |
T/T | |
Western Union | |
Packing: | Standard Export Carton with fully Polyfoam or Pearl Wool |
Flight case; | |
Anti-shaking wooden case | |
Shipping: | 5 to 7 working days upon receiving deposit payment |
After-Sales-Service: | Lifetime with professional engineer support for free. |
Within 5 year, supply spare parts for free if has quality problem ( not by man-made damage) |
|
Using Range | Shopping mall,bank,bus station, train station, center of downtown, airport, school, factory, bus, taxi,and so on. |

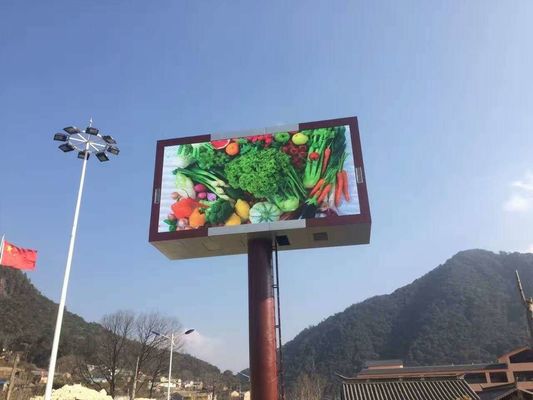

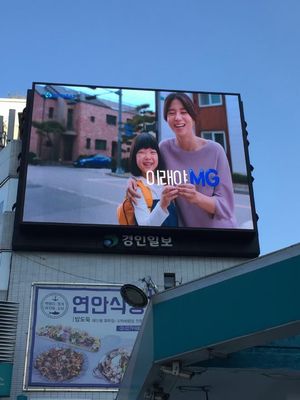

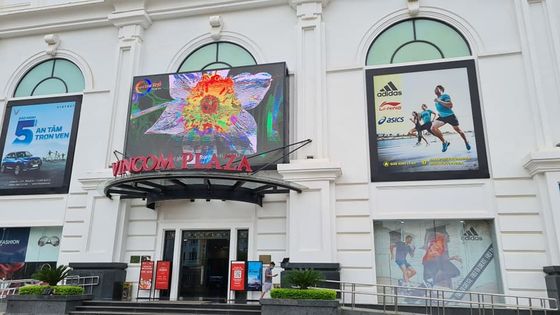

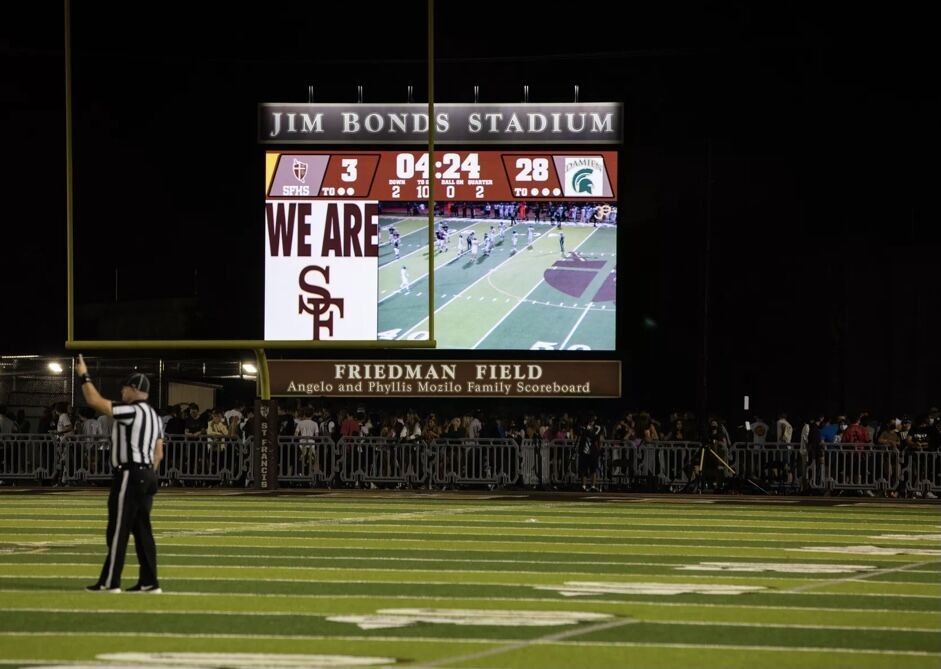

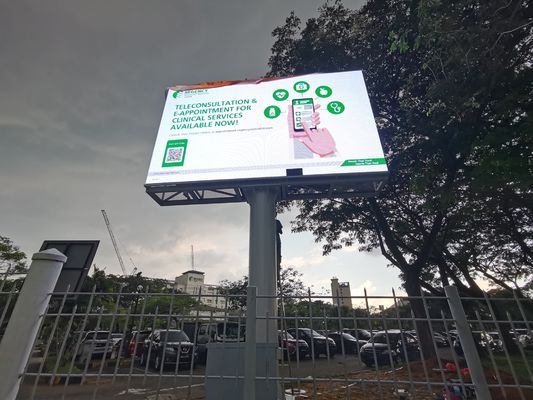

Our case
♦ Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing
♦ Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
♦ Description:
•With sensitive control system, it can adjust screen brightness automatically according to the lighting change of indoor and outdoor, saving energy to reduce your operating costs greatly.
•High refresh rate and high gray make the picture more realistic, which meets the demand of high visual quality of commercial usage.
•The advertising contents can be changed at any time, for different customers and various advertisements.
•you can know the display operation anytime, anywhere.
• it can turn on and turn off the screen by software timing or manually at any time, achieving unattended function.
FAQ
indoor vs outdoor
Indoor signs are bright enough to be seen inside a building under commercial lighting, but not bright enough to be seen in direct sunlight. Outdoor signs can be seen in full-on, mid-day sunlight, and are weatherproof to withstand the harsh environmental conditions.
Viewing Distance
How far away is your viewing audience? Are they in their car driving fast on the freeway, or are they strolling casually past your store sipping a latte?
Text vs. Graphics
If you are looking for a simple, easy-to-program, text-only sign, there are plenty of scrolling monochrome and full color models to choose from. If you want full motion graphic animations in addition to scrolling text, then you have to have some method to create the animated content for your display
Color vs. Monochrome
How many colors do you need? Monochrome signs come in red or amber, and can display up to 256 shades of one color (see Nova). High definition RGB displays are capable of displaying up to 4.4 trillion colors!
Viewing Angle vs. Brightness
Viewing Angle is measured in degrees. The wider the angle, the wider the area is that a viewer can read the sign.
