P6 outdoor led display 960x960mm screen advertising fixed digital board programmable led display

P6 outdoor led display 960x960mm screen advertising fixed digital board programmable led display

  • P6 outdoor led display  960x960mm screen advertising fixed digital board programmable led display
  • P6 outdoor led display  960x960mm screen advertising fixed digital board programmable led display
  • P6 outdoor led display  960x960mm screen advertising fixed digital board programmable led display
  • P6 outdoor led display  960x960mm screen advertising fixed digital board programmable led display
  • P6 outdoor led display  960x960mm screen advertising fixed digital board programmable led display
P6 outdoor led display  960x960mm screen advertising fixed digital board programmable led display
Product Details:
Place of Origin: CHINA
Brand Name: SCXK
Certification: CB,CE,ROHS,FCC,SASO
Model Number: SMD-P6
Payment & Shipping Terms:
Minimum Order Quantity: 16 sqm
Price: negotiation
Packaging Details: wooden case,flight case,it is up to you.
Delivery Time: 7-18 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 4600 sqm month
Contact Now
Detailed Product Description
Application:: Outdoor Color:: Full Color
Panel Size:: 192*192MM Pixel Density:: 27777dots/sqm
Usage:: Outdoor Advertising MAX.Consumption:: 650W/m2
Brightness:: 6500cd/sqm Driving Mode:: 1/8Scan Constant Current
Viewing Angle:: H120 V120 Life Span:: 100000hours
High Light:

full color outdoor led display

,

outdoor full color led screen

SCX LED P6 Outdoor LED Display Advertising Wall P6 Fixed LED Advertising Wall Video Display Billboard





♦ Product specification

outdoor SMD P6
Lamp size 3535
Resolution/mm 6
Pixel configuration RGB 3 in 1
Pixel density/pixels/m² 62500/m²
Module resolution 32x32
Module size/mm 192x192
View distance ≥4m
Single point brightness adjust Can be added
Single point color adjust Can be added
White balance brightness >1800cd/㎡
Color temperature 6500K-9500K
Horizontal view angle 120(degrees)
Vertical view angle 120(degrees)
Signal Process bit 10 or 14 bit
Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances Internet cable:100m, multimembrane:500m, monofilm:5km
Driving mode Constant driving current
Scanning mode 1/16
Frame rate 60Hz
Refresh frequency >1200Hz
Control mode Computer synchronous
Brightness adjusted range

Manual, automatic operation, stepless continuous adjusted

255 steps. No grey loss

Out of control point <1/10000
Working hours ≥72hours
Mean Time Between Failure >5000hours
Life time 100000hours
Life-all-white(brightness halving) 50000hours
Environment temperature range Operating temperature range: -20-45℃ Storing temperature range: -30-65℃
Maximum power:/㎡ <1100W
Average power:/㎡ <280W
Self-check technology

LED spot self-check, communications check, power check,

temperature monitor(need customization)

Remote monitoring

Remote supervision and control, record potential fault,

send out warning signs to the operators.(need customization)

Software environment WindowsNT,Windows1999,WindowsXP
Luminous point width between centres Deviation<3%
Brightness uniformity <10%
Color uniformity(chromaticity coordinate) ±0.003
Power supply request AC85-264V(50Hz-60Hz)
Contrast (1000:1)
System protection Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working) working:10-95%
Humidity(storing) storing:10-95%

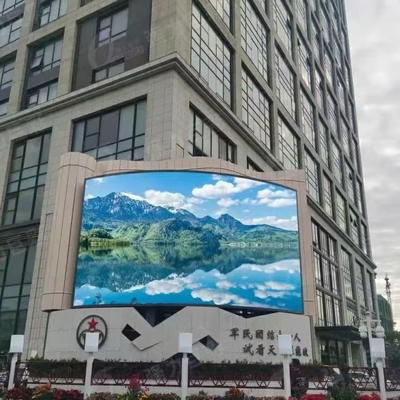

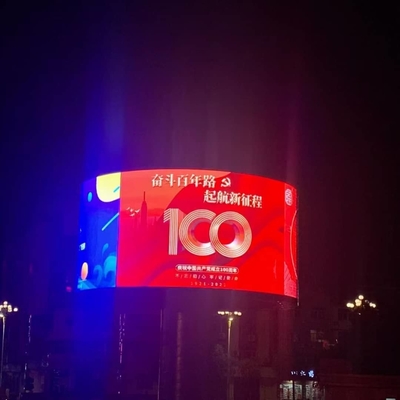

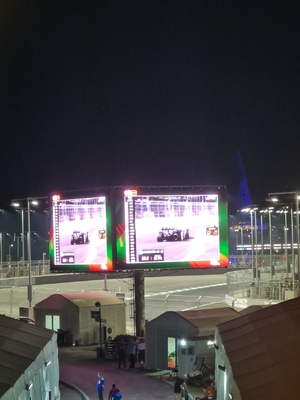

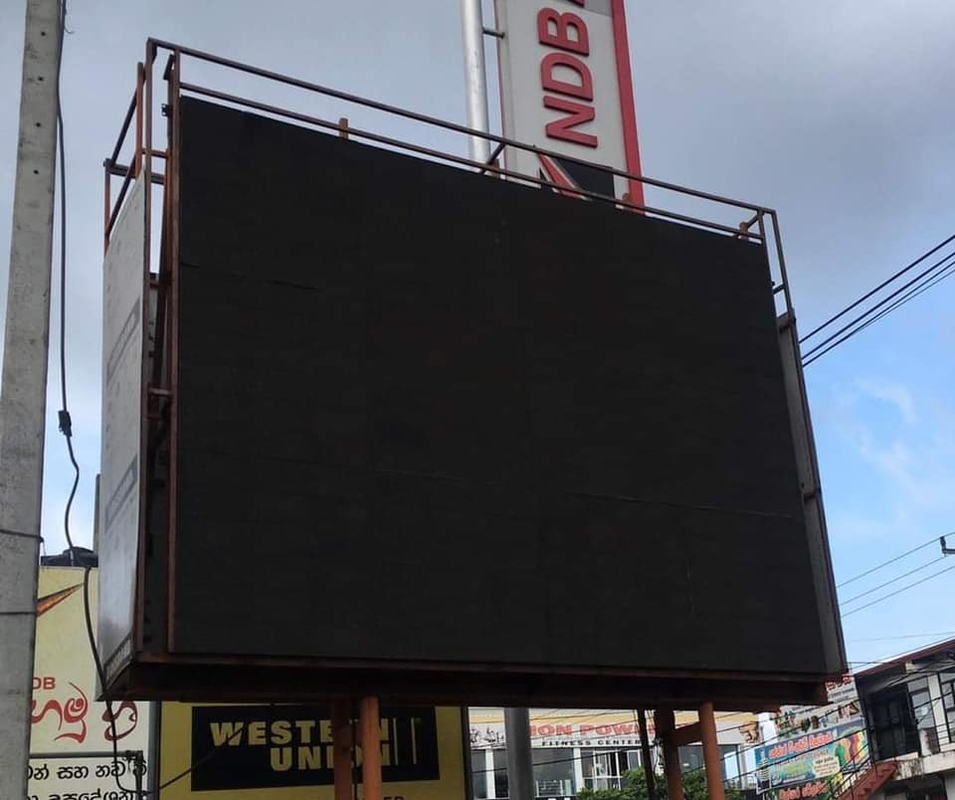

Our case

P6 outdoor led display  960x960mm screen advertising fixed digital board programmable led display 0P6 outdoor led display  960x960mm screen advertising fixed digital board programmable led display 1

♦ Packaging and shipping

Wooden case or flight case package are available.

Shipping by sea,air or DHL,multiple shipping ways for your choice.



♦ Why choose us:

Continues Quality

With more than 10 years experience in led display producing,equipments are updated regularly.What’s

more,unique standardized and module production ensure our products continuous quality.



Competitive Price

With large scale production capacity and professional production technology,our company have built

effective modular production.We always stick to promote the technical innovation and reduce cost to

benefit customers.

P6 outdoor led display  960x960mm screen advertising fixed digital board programmable led display 2

Fast Delivery

Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency

inventory will be used to maintain your uninterrupted supply of the products.



Perfect Service

Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to

you.

After-sales:We will track the products usage and then constantly perfect our products.



FAQ

1. Why choose SCX LED company?
We have 10 years’ experience in this field, we know how to choose products, and keep the good quality, and we can get much lower
price than other supplier with more good quality.
2.What is the after-sale service of Source of light company?
During warranty with full spare parts and if after warranty, we also provide lifelong support, on time products service survey.
Our spare parts are more than other factory in this market, same cost,
customer get more good service.
3.What is the delivery time for order?
Most standard products has stock, other custom manufacture can be 20-35 days, the more time for custom products, we have more time
for confirm all the details in manufacture.
4. How to make sure customer get good quality?
We can accept trade assurance in Alibaba for protect you get good quality products.
5.Can accept L/C?
We can accept L/Welcome talk detail with us.
6.Can I visit your factory?
Welcome to visit, you can find my contact information in this page.
7. If I broad the market, can I be your agents?
Yes, we want to build relationship with all local powerful distributor service is good for support you do long time local service
to win customer. Our price and quality can give our customer more profit.
