Place of Origin: | CHINA |
Brand Name: | SCXK |
Certification: | CB/CE/ROHS/FCC/ISO/UL |
Model Number: | SMD P6 |
Minimum Order Quantity: | 12 sqm |
---|---|
Price: | negotiation |
Packaging Details: | flight case, wooden case, carton, it is up to you. |
Delivery Time: | 7-13 working days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 4300 sqm month |
Application:: | Outdoor Advertising/stage Background | Color:: | Full Color |
---|---|---|---|
Panel Size:: | 192*192 Mm | Pixel Pitch:: | 6 Mm |
Brightness:: | 5000- 6500 Cd/sqm | IP Grade:: | IP 65 |
Use Voltage:: | AC 220V/110V±10% | Certificate:: | CE RoHS FCC Certifications |
Warranty:: | 2~5 Years | Refresh Rate:: | 1920 -3840 Hz |
Life Span:: | 100000hours | ||
High Light: | full color outdoor led display,outdoor full color led screen |
♦ Product characteristics:
High level of protection.
Outdoor wide viewing angle.
Best color mixture and long life time.
High brightness and waterproof for outdoro advertising.
Lowest cost outdoor led display solution
♦ Product specification
outdoor SMD P6 | ||||||||||||||
Lamp size | 3535 | |||||||||||||
Resolution/mm | 6 | |||||||||||||
Pixel configuration | RGB 3 in 1 | |||||||||||||
Pixel density/pixels/m² | 62500/m² | |||||||||||||
Module resolution | 32x32 | |||||||||||||
Module size/mm | 128x128 | |||||||||||||
View distance | ≥4m | |||||||||||||
Single point brightness adjust | Can be added | |||||||||||||
Single point color adjust | Can be added | |||||||||||||
White balance brightness | >1800cd/㎡ | |||||||||||||
Color temperature | 6500K-9500K | |||||||||||||
Horizontal view angle | 120(degrees) | |||||||||||||
Vertical view angle | 120(degrees) | |||||||||||||
Signal Process bit | 10 or 14 bit | |||||||||||||
Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | |||||||||||||
Control distances | Internet cable:100m, multimembrane:500m, monofilm:5km | |||||||||||||
Driving mode | Constant driving current | |||||||||||||
Scanning mode | 1/16 | |||||||||||||
Frame rate | 60Hz | |||||||||||||
Refresh frequency | >1200Hz | |||||||||||||
Control mode | Computer synchronous | |||||||||||||
Brightness adjusted range |
Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
|||||||||||||
Out of control point | <1/10000 | |||||||||||||
Working hours | ≥72hours | |||||||||||||
Mean Time Between Failure | >5000hours | |||||||||||||
Life time | 100000hours | |||||||||||||
Life-all-white(brightness halving) | 50000hours | |||||||||||||
Environment temperature range | Operating temperature range: -20-45℃ Storing temperature range: -30-65℃ | |||||||||||||
Maximum power:/㎡ | <1100W | |||||||||||||
Average power:/㎡ | <280W | |||||||||||||
Self-check technology |
LED spot self-check, communications check, power check, temperature monitor(need customization) |
|||||||||||||
Remote monitoring |
Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
|||||||||||||
Software environment | WindowsNT,Windows1999,WindowsXP | |||||||||||||
Luminous point width between centres | Deviation<3% | |||||||||||||
Brightness uniformity | <10% | |||||||||||||
Color uniformity(chromaticity coordinate) | ±0.003 | |||||||||||||
Power supply request | AC85-264V(50Hz-60Hz) | |||||||||||||
Contrast | (1000:1) | |||||||||||||
System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | |||||||||||||
Humidity(working) | working:10-95% | |||||||||||||
Humidity(storing) | storing:10-95% |

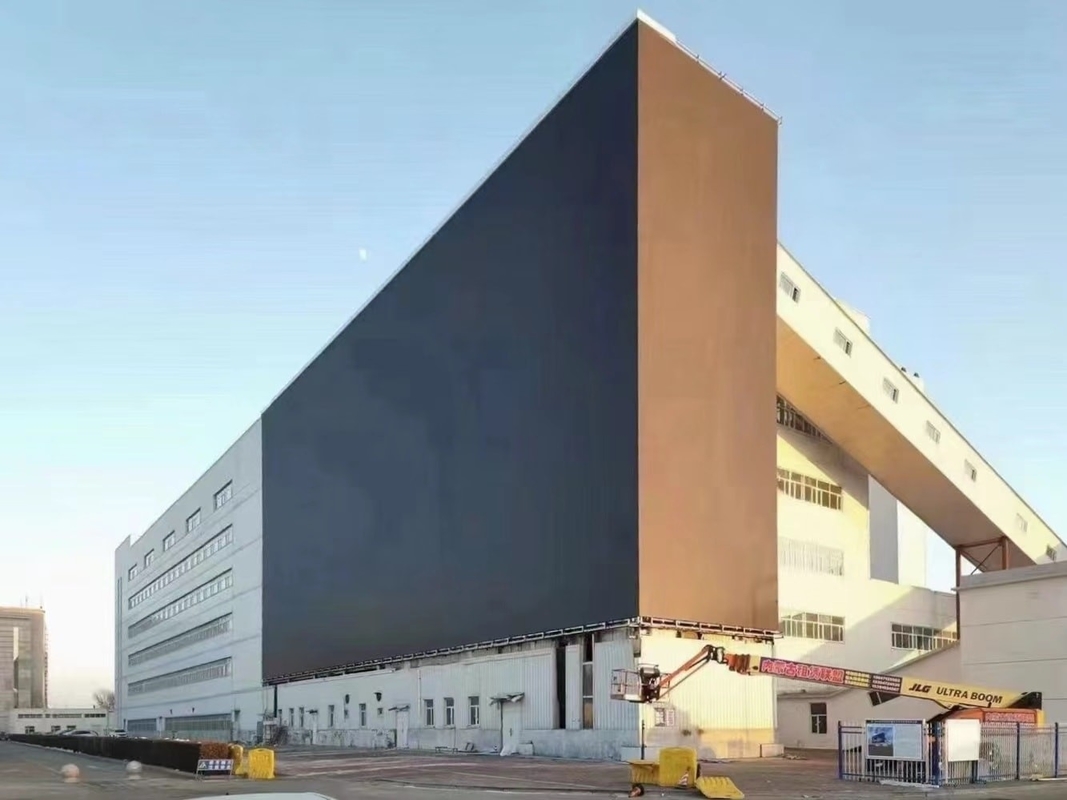

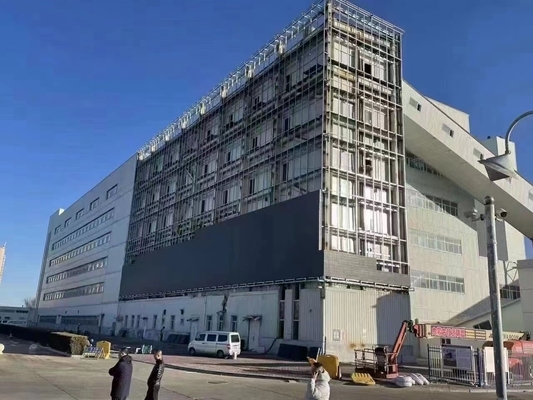

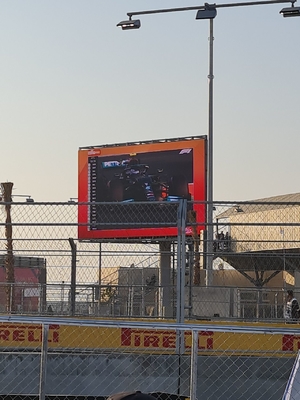

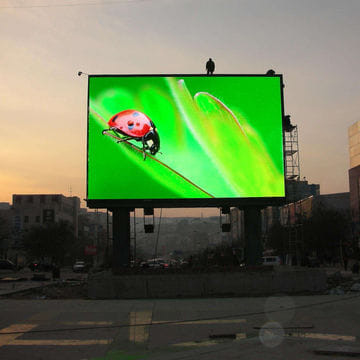

Our case
♦ Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing
♦ Quick Detail
1. Super lighter and thinner;
2. Easy to connection and uninstall;
3. It can display,words,texts,graphics and videos.
4. High resolution and high frequency dynamic image.
♦ Applications
LED display can be widely used in advertising,multi-media,stadium,stage,rental show,transit directions,etc.
♦ Our advantages
Professional Manufacturer of led display
1. OEM service,No MOQ
2. Easy installation,regular items in Stocks
3. Offering free design drawing as requested.
4. Remote controlling and adjusting are available.
5. Wooden case or flight case,you are the boss.
6. Your reply will be replied within 24 hours.
♦ Why choose us:
Continues Quality
With more than 10 years experience in led display producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products continuous quality.
Competitive Price
With large scale production capacity and professional production technology,our company have built
effective modular production.We always stick to promote the technical innovation and reduce cost to
benefit customers.
FAQ
Q1: Are you the manufacturer or trading company? and where is your factory?
A: we are professional manufacturer devote in producing Led outdoor, Led indoor display, rental display, stadium screen, advertising screen and stage screen etc. You are warmly welcome to visit our factory to learn the technical and maintenance skills and everything you need in our factory.
Q2:May be we will need some samples, what is the lead time of samples and lead time of order?
A2:We will arrange your sample of the charges within 1-2 days and arrange your order within 5-12 days after receiving your salary.
Q3:How could us arrange order?
A:pls send your inquiry to us--click the "send" in below, then let us confirm all details, you can click "start order" in above, or we send you order link for your payment.
Q4:Which payment method does your company accept?
A:We support T/T or Trade Assurance. For more payment methods, please contact our customer service.
Q5:If have quality problems, how do you solve them?
A:Please provide relevant videos and photos within one month of receipt of the shipment. We will verify it at first. If it is really quality problem, we will work with the engineer to assist you in solving the problem. If we cannot solve it, we will give you a refund or resend you new one for free, but we will not bear the freight.
