576*576mm die casting aluminum cabinet full color P3 led commercial advertising display screen

Product Details:

Place of Origin:	CHINA
Brand Name:	SCXK
Certification:	CB/CE/ROHS/FCC/ISO/UL
Model Number:	smd -p3

Payment & Shipping Terms:

Minimum Order Quantity:	16 sqm
Price:	negotiation
Packaging Details:	wooden case，flight case，it is up to you.
Delivery Time:	7-16 working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	5600 sqm month

Contact Now

Detailed Product Description

Display Function::	Video	Usage::	Indoor
Pixels::	3.91mm	Screen Dimension::	As Your Reqirment
Product Name::	Indoor P3 Led Screen For Rental Use	LED Type::	SMD2020 3in1
Module Size::	192mm*192mm	Module Resolution::	64*64dots
Cabinet Material::	Die-casting Alumium	Refresh Rate::	1920Hz-3840Hz
Brightness::	800-1000cd/sqm	Warranty::	1-3 Years
High Light:	led full color screen , indoor led display screen

SCX LED High resolution screen full color p3 smd indoor led module smd p3 led screen display

576x576mm portable aluminum panel high definition P3 SMD 2020 full color indoor stage led concert screens
1. Error detection and monitoring:it can monitor the inner temoerature,voltage,cooling fans etc and error detection automatically.

2. Energy saving:low electric current,high-brigh lamps,equipped with PFC swithing power supply,save 30% electricity.

3. Color correction:support dot-to-dot correction,guarantee the consistence of LED color and brightness,No chromatic aberration for new screens3..

4.. Good LEDs:use DIP346 LEDs,it has excellent performance in antistatic ability and UV protection;Waterproof grade IP65,all weather available.

5. Dual back-up:both power supply and system dual back-up are optional,reliable performance.

6. High refresh rate,high gray level:it can reach 16bit by using PWM driving IC,refresh rate is more than 1000HZ,

the gray level is still high even under the condition of low brightness

♦ Product specification

			indoor SMD P3

			Lamp size
			2121

			Resolution/mm
			3

			Pixel configuration
			RGB 3 in 1

			Pixel density/pixels/m²
			111111/m²

			Module resolution
			64x64

			Module size/mm
			192x192mm

			View distance
			≥3m

			Single point brightness adjust
			Can be added

			Single point color adjust
			Can be added

			White balance brightness
			>2000cd/㎡

			Color temperature
			6500K-9500K

			Horizontal view angle
			120(degrees)

			Vertical view angle
			60(degrees)

			Signal Process bit
			10 or 14 bit

			Grey process
			1024x1024x1024 16834x16834x16834 65536x65536x65536

			Control distances
			Internet cable:100m, multimembrane:500m, monofilm:5km

			Driving mode
			Constant driving current

			Scanning mode
			1/8

			Frame rate
			60Hz

			Refresh frequency
			>3000Hz

			Control mode
			Computer synchronous

			Brightness adjusted range
			Manual, automatic operation, stepless continuous adjusted

			255 steps. No grey loss

			Out of control point
			<1/10000

			Working hours
			≥72hours

			Mean Time Between Failure
			>5000hours

			Life time
			100000hours

			Life-all-white(brightness halving)
			50000hours

			Environment temperature range
			Operating temperature range: -20-45℃ Storing temperature range: -30-65℃

			Maximum power:/㎡
			<900W

			Average power:/㎡
			<300W

			Self-check technology
			LED spot self-check, communications check, power check,

			temperature monitor(need customization)

			Remote monitoring
			Remote supervision and control, record potential fault,

			send out warning signs to the operators.(need customization)

			Software environment
			WindowsNT,Windows1999,WindowsXP

			Luminous point width between centres
			Deviation<3%

			Brightness uniformity
			<10%

			Color uniformity(chromaticity coordinate)
			±0.003

			Power supply request
			AC85-264V(50Hz-60Hz)

			Contrast
			(1000:1)

			System protection
			Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration

			Humidity(working)
			working:10-95%

			Humidity(storing)
			storing:10-95%

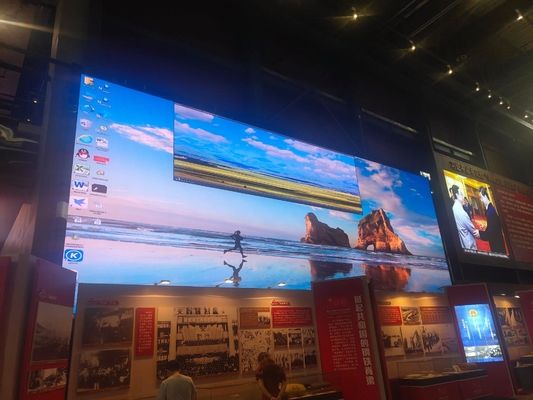

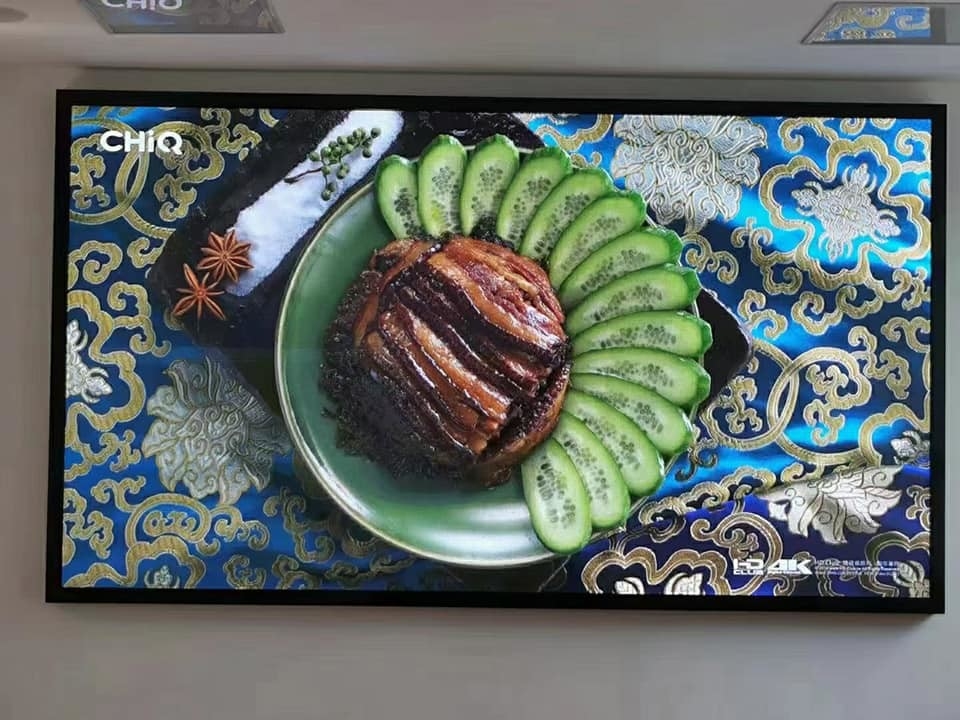

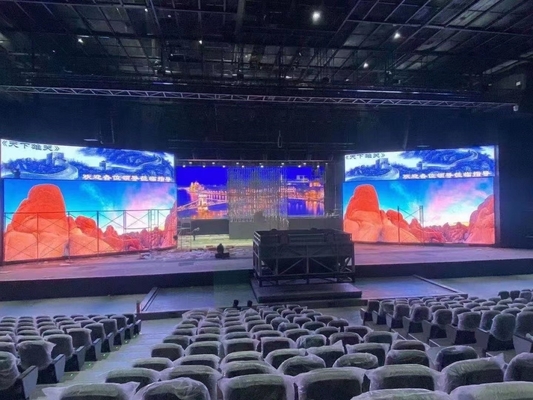

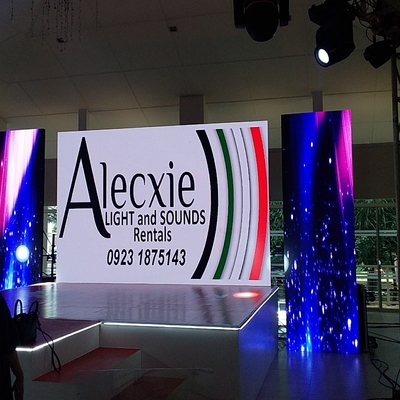

Our case

♦ Production process:

1) Incoming Inspection→2) SMD→3) Plug-in

→4) Wave Soldering→5) After Welding→6) Testing

→7) Semi Finished Aging→8) Module Assembly

→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing

♦ Packaging and shipping

Wooden case or flight case package are available.

Shipping by sea,air or DHL,multiple shipping ways for your choice.

♦ Why choose us:

Continues Quality

With more than 10 years experience in led display producing,equipments are updated regularly.What’s

more,unique standardized and module production ensure our products continuous quality.

Competitive Price

With large scale production capacity and professional production technology,our company have built

effective modular production.We always stick to promote the technical innovation and reduce cost to

benefit customers.

Fast Delivery

Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency

inventory will be used to maintain your uninterrupted supply of the products.

Perfect Service

Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to

you.

After-sales:We will track the products usage and then constantly perfect our products.

FAQ

Q1: Are you a trading company or manufacturer?
A1: Focus Bell is a professional LED display manufacturer, we have our factory and based on the High-tech Park. We have more than 5 years experience in LED display industry.
Q2: What is your control system? Is it easy to use?
A2: We use Novastar controlling system. Support APP/Phone/Wifi/PC/Cloud and other types of terminals to control videos. And we will choose the best processor and system for the screen to make it easier and convenient.
Q3: What is your service? How could we get a screen?
A3: 1. Getting your requests and find the best solution for you.
2. Arrange fast delivery and track the order.
3. Guide you how to install the screen and software.
4. Track your after-sale use and supply the best service for you.

Q4: How about the delivery time?
A4: Commonly 10-25 days after we receiving your advanced payment. If there is special delivery time, it must be the special quantity and items. We will inform you in advance.
