Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | CHINA |
| Brand Name: | SCXK |
| Certification: | CE/ROHS/FCC/ISO/CB |
| Model Number: | P3.91 |
| Minimum Order Quantity: | 10 sqm |
|---|---|
| Price: | negotiation |
| Packaging Details: | flight case, wooden case, carton, it is up to you. |
| Delivery Time: | 7-15 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 5200 sqm month |
| Application:: | Stage Rental LED Video Wall Display, Stage Rental | Color: | Full Color |
|---|---|---|---|
| Panel Size:: | 500x500mm | Pixel Pitch:: | 3.91mm |
| Product Name:: | Led Video Wall Display Screen | Brightness:: | 2000cd/sqm |
| Function:: | Video, Animation, Picture, Text, Image | Refresh Rate:: | 1920/3840Hz |
| Viewing Angle:: | 140/140 Degree | ||
| High Light: | led full color screen,indoor led billboard |
||
SCX LED High Quality HD P3.91 Rental LED Screen 500X500mm Indoor Full Color SMD LED Display Panels
♦ Quick Detail
Slim and Light Weight Cabinet Design
Die cast aluminum cabinet, perfect splicing without gaps. Weight only 8kg, easy to handle. Fast locking makes assembly and disassembly extremely easy. High-quality plugs ensure reliability.
Front Service Magnetic Module For Quick and Easy Maintenance
Rear control box uses snap-in design, maintenance and installation is more efficient and convenient.
Absolute 4K HD Display Visual Effects
High contrast 3000:1 and ultra-high-definition perfect picture quality, bring you absolute visual enjoyment.
easily attract attention, greatly enhance the value of advertising.
Quick Setup and Disassebmly
Unique brake lock design, the upper and lower cabinet connection can be completed in only one second, use the method to watch the video below.
Adjustable Angle Lock
The cabinet can be arc-shaped connected, with its own angle adjustment device, can achieve concave and convex 10 degrees of adjustment to meet the different arc connection requirements.
Specifications
| Item | Parameter | |||
| Module specifications | Mode | p2.604 | p3.91(have stock) | p3.91 |
| Module size | 250*250 | 250*250 | 250*250 | |
| Module pixel | 96*96 | 64*64 | 64*64 | |
| scan | 1/32 | 1/16 | 1/16 | |
| Pixel configuration | 1R1G1B | 1R1G1B | 1R1G1B | |
| LEDs | SMD1515 | SMD2121 | SMD2121 | |
| Max power consumption (W/piece) | 40W | 40W | 40W | |
| Mask | have | have | have | |
| Main Specifications | Cabinet size | 500*500 | 500*500 | 500*1000 |
| Cabinet pixel | 192*192 | 128*128 | 128*256 | |
| Density (dot/m2) | 147456 | 65536 | 65536 | |
| Brightness(cd/m2) | 700-1000 | 700-1000 | 700-1000 | |
| Max power consumption (W/piece) | 160W | 160W | 320W | |
| Avg power consumption (W/piece) | 50W | 50W | 10W | |
| Cabinet weight(KG) | 6KG | 6KG | 11KG | |
| Cabinet material | Die-cast magnesium aluminum box | |||
| IP grade | IP45 | IP45 | IP45 | |
| Gray level | 16 bit | 16 bit | 16 bit | |
| Fresh rate | 3840HZ | 3840HZ | 3840HZ | |
| Best viewing distance | 2.6M | 4M | 4M | |
| Power(V) | AC110-220V | |||
| Working temperature | -20℃-50℃ | |||
New rental screen in the design
1, Pluggable power box
2, High Precision Aluminum Cabinet
3, Signal Operation Design
4, High Strength Corner Protector
5, Two Size Supporting Mix Splicing
6, Creative Internal Curved Design
7, TUV Certificated Hanging Bar
8, High Stength Flightcase
♦ Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing

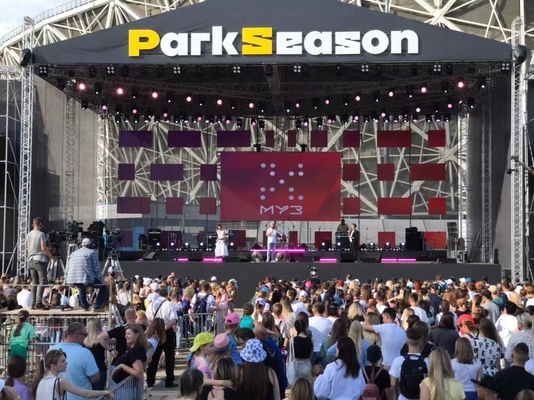

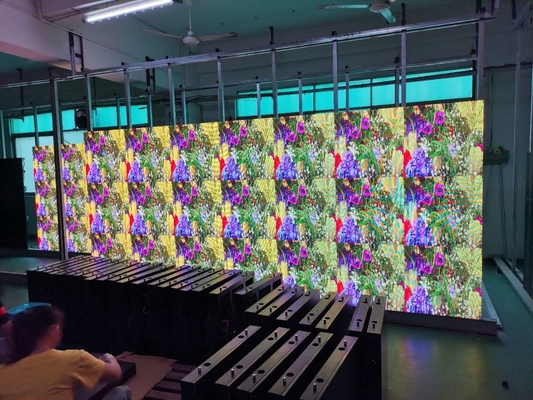

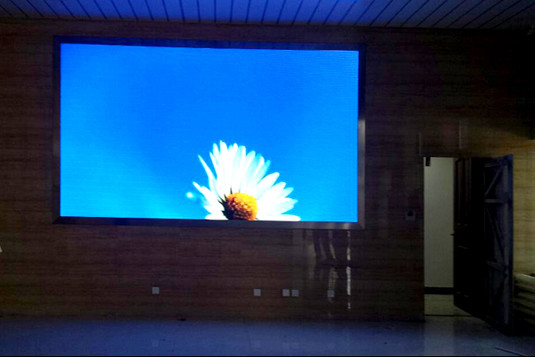

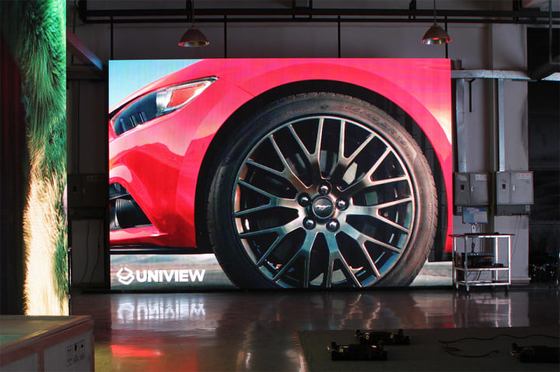

Our case
♦ Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
♦ Why choose us:
Continues Quality
With more than 10 years experience in led display producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products continuous quality.
Competitive Price
With large scale production capacity and professional production technology,our company have built
effective modular production.We always stick to promote the technical innovation and reduce cost to
benefit customers.
Fast Delivery
Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the products.
Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to
you.
After-sales:We will track the products usage and then constantly perfect our products.
FAQ
Q1: What's the warranty of your LED Display Screen ?
A1: We have a 3-year warranty for our led display screen, and 100,000 hours life span of the led lamps.
Q2: What about your Pre-sale service and After-sale service?
A2: For Pre-sale service: We have a professional sales team and professional technical team who are willing to answer your question 24 hours on line. We can offer a set of solution for your project!
For After-sale service: We can instruct you how to use, adjust the screens, and common maintenance with spare parts.
Also, we can send engineers to your country if you need.
Q3: What’s your payment term? How long it takes to delivery?
A3: We accept T/T and L/C, For both T/T and L/C, At least 30% deposit in advance, and the rest 70% before delivery.
Production time would be about 15-25 days according to your order quantity.
Q4: What's the control system?
A4: For synchronous control system: We use Nova, Linsn or Colorlight control system.
For asynchronous control system: We use Onbon or Xixun control system.
Q5: How can you ensure the led display product quality?
A5: We have nearly 10-year experience in producing Led Display with good reputation in this industry.
We would do 24 hours ageing to promise 100% non-dead chips before shipment.
