Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | CHINA |
| Brand Name: | SCXK |
| Certification: | CB/CE/ROHS/FCC/ISO/UL |
| Model Number: | smd -indoor p3 |
| Minimum Order Quantity: | 10 sqm |
|---|---|
| Price: | negotiation |
| Packaging Details: | wooden case，flight case，it is up to you. |
| Delivery Time: | 7-15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5500 sqm month |
| Application:: | For Advertising Led Video Wall | Color:: | Full Color Video And Map |
|---|---|---|---|
| Refresh Rate:: | 3840Hz | Brightness Indoor:: | 1300nits |
| Name:: | P3 Led Advertising Screen | Cabinet Dimension:: | 576x576mm Or Customized. |
| Module Size:: | 192*192mm | Module Resolution:: | 128*64dots |
| Resolution:: | 111111 Pixels/sqm | Function: | Advertising Led Video Wall |
| Ic Ship:: | MBI 5124ic Or Customized | ||
| High Light: | led full color screen,indoor led display screen |
||
♦ Description:
1. High quality LED chip and high anti-static electricity capacity.
2. Large viewing angle and smooth displaying provide excellent visual effect from every angle.
3. The integration of lamp and driving IC,together with with the multi-circuit structure,achievs evenly-distributed current,low power consumption and fast heat dissipation.
4. Ultra high brightness,low attenuation,high reliability and weather ability.
5. High contrast ratio.Adopting black lamps can improve the contrast ratio by 50%.
6. High refresh rate,high gray scale,ghost-canceling,low power consumption,low EMI,anti-creeping,multi-route redundancy backup-supporting,and dot-by-dot-calibration.
P3 Indoor High Resolution LED Screen Panel 576x576mm Panel Feature:
1.Fast installation and dismantle with vertical and horizontal locks for the screen.
2.High contrast ratio 1:3000, refresh rate reaches to 3840Hz/s, high gray scale could provide stunning visual effect.
3.Ultra thin cabinet design, light weight, convenient to carrying on the stage rental event.
4.Uniformity display with precision metal structure, to achieve high-quality seamless effect.
P3 Indoor High Resolution LED Screen Panel 576x576mm Panel Application:
1. Indoor high definition LED Display
2. Indoor HD Rental LED Display Screen
3. Indoor HD Advertising LED Sign
♦ Product specification
| indoor SMD P3 | ||||||||||||||
| Lamp size | 2121 | |||||||||||||
| Resolution/mm | 3 | |||||||||||||
| Pixel configuration | RGB 3 in 1 | |||||||||||||
| Pixel density/pixels/m² | 111111/m² | |||||||||||||
| Module resolution | 64x64 | |||||||||||||
| Module size/mm | 192x192mm | |||||||||||||
| View distance | ≥3m | |||||||||||||
| Single point brightness adjust | Can be added | |||||||||||||
| Single point color adjust | Can be added | |||||||||||||
| White balance brightness | >2000cd/㎡ | |||||||||||||
| Color temperature | 6500K-9500K | |||||||||||||
| Horizontal view angle | 120(degrees) | |||||||||||||
| Vertical view angle | 60(degrees) | |||||||||||||
| Signal Process bit | 10 or 14 bit | |||||||||||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | |||||||||||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:5km | |||||||||||||
| Driving mode | Constant driving current | |||||||||||||
| Scanning mode | 1/8 | |||||||||||||
| Frame rate | 60Hz | |||||||||||||
| Refresh frequency | >3000Hz | |||||||||||||
| Control mode | Computer synchronous | |||||||||||||
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
|||||||||||||
| Out of control point | <1/10000 | |||||||||||||
| Working hours | ≥72hours | |||||||||||||
| Mean Time Between Failure | >5000hours | |||||||||||||
| Life time | 100000hours | |||||||||||||
| Life-all-white(brightness halving) | 50000hours | |||||||||||||
| Environment temperature range | Operating temperature range: -20-45℃ Storing temperature range: -30-65℃ | |||||||||||||
| Maximum power:/㎡ | <900W | |||||||||||||
| Average power:/㎡ | <300W | |||||||||||||
| Self-check technology | LED spot self-check, communications check, power check, temperature monitor(need customization) |
|||||||||||||
| Remote monitoring | Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
|||||||||||||
| Software environment | WindowsNT,Windows1999,WindowsXP | |||||||||||||
| Luminous point width between centres | Deviation<3% | |||||||||||||
| Brightness uniformity | <10% | |||||||||||||
| Color uniformity(chromaticity coordinate) | ±0.003 | |||||||||||||
| Power supply request | AC85-264V(50Hz-60Hz) | |||||||||||||
| Contrast | (1000:1) | |||||||||||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | |||||||||||||
| Humidity(working) | working:10-95% | |||||||||||||
| Humidity(storing) | storing:10-95% | |||||||||||||

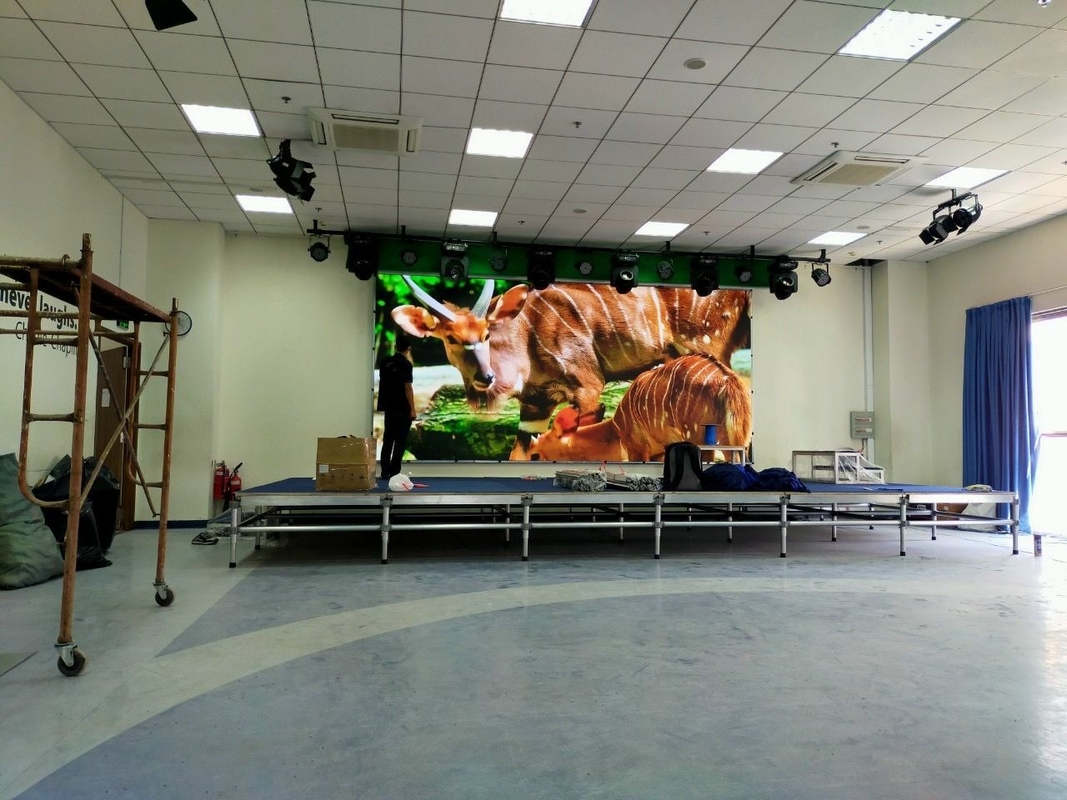

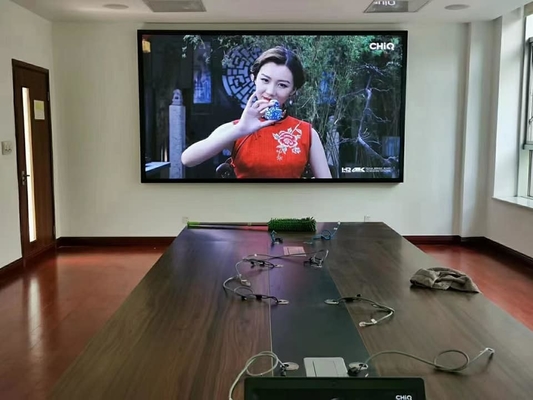

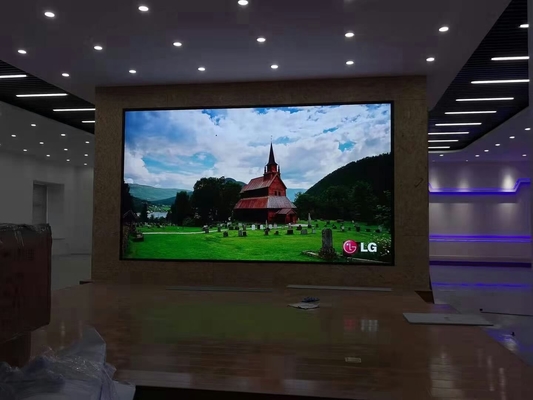

Our case
♦ Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing
♦ Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
♦ Why choose us:
Continues Quality
With more than 10 years experience in led display producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products continuous quality.
Competitive Price
With large scale production capacity and professional production technology,our company have built
effective modular production.We always stick to promote the technical innovation and reduce cost to
benefit customers.
Fast Delivery
Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the products.
Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to
you.
After-sales:We will track the products usage and then constantly perfect our products.
FAQ
Q1: Are you trading company or manufacturer ?
A: Scree is a professional LED display manufacturer, having been enrolled in led display industry with professional R&D team and
skilled QC team for 11 years
Q2: What is the control system? How is it?
A: We use Novastar/Colorlight/Linsn control system. Support cluster play and management. Support APP/ Phone/ WIFI/ Ipad/ Laptop/
PC/ Cloud control.
It’s very easy and convenient to control the screen.
Q3: What is your best service?
A: One to one sales engineer to customer responsibility system. We will do:
1. Know your project and provide the best solution for it;
2. Track your order and let you know each step and detail of it;
3. Teach you how to install and use the screen;
4. Care the subsequent use of your screen and ensure your after - sales service be well,
5…6…etc.
Q4. How about your delivery time?
A: Standard module we have stock ,Can send out after 7 hours aging testing .The specific delivery time depends on the items and
the quantity of your order.
Q5:How about your Warranty Term?
A: 1-3-year warranty. Structure design, installation problem, program the screen, how to use the screen…don’t worry, we have
professional after-sale team to solve your any questions after you placed an order. And your exclusive sales engineer will also
help you get over any problems.
