Outdoor Waterproof P3 P3.91 P4.81 P3 Stage LED Screens

Outdoor Waterproof P3 P3.91 P4.81 P3 Stage LED Screens

  • Outdoor Waterproof P3 P3.91 P4.81 P3 Stage LED Screens
  • Outdoor Waterproof P3 P3.91 P4.81 P3 Stage LED Screens
  • Outdoor Waterproof P3 P3.91 P4.81 P3 Stage LED Screens
  • Outdoor Waterproof P3 P3.91 P4.81 P3 Stage LED Screens
Outdoor Waterproof P3 P3.91 P4.81 P3 Stage LED Screens
Product Details:
Place of Origin: CHINA
Brand Name: SCXK
Certification: CB/CE/ROHS/FCC/ISO/UL
Model Number: smd -p3.91
Payment & Shipping Terms:
Minimum Order Quantity: 3 sqm
Price: negotiation
Packaging Details: wooden case,flight case,it is up to you.
Delivery Time: 4-11working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 6500 sqm month
Contact Now
Detailed Product Description
Application:: Outdoor, Outdoor Advertising Led Color:: Full Color
Panel Size:: 250*250mm Pixel Pitch:: 3.91mm
Life Span:: 100000hours Cabinet Size:: 500x500mm
Refresh Rate:: 1920Hz Function:: Play Video
High Light:

P3.91 led stage display screen

,

P4.81 stage led video wall

p3 p3.91 p4.81 Outdoor Waterproof video wall P3 Led Advertising Rental Display led screen



♦ Small Pixel LED Screen for Clearer Pictures



The Small Pixel LED Display features small pixel modules which presents clearer and vivid images even in low brightness and dark days. The display is suitable for various applications including security monitoring center, scheduling command platform, smart city, television studio and high-end meetings.



♦ Product specification

indoor SMD P3.91
Lamp size 2121
Resolution/mm 3.91
Pixel configuration RGB 3 in 1
Pixel density/pixels/m² 65410/m²
Module resolution 64x64
Module size/mm 250x250
View distance ≥2m
Single point brightness adjust Can be added
Single point color adjust Can be added
White balance brightness >2500cd/㎡
Color temperature 6500K-9500K
Horizontal view angle 120(degrees)
Vertical view angle 60(degrees)
Signal Process bit 10 or 14 bit
Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances Internet cable:100m, multimembrane:500m, monofilm:5km
Driving mode Constant driving current
Scanning mode 1/16
Frame rate 60Hz
Refresh frequency >3000Hz
Control mode Computer synchronous
Brightness adjusted range

Manual, automatic operation, stepless continuous adjusted

255 steps. No grey loss

Out of control point <1/10000
Working hours ≥72hours
Mean Time Between Failure >5000hours
Life time 100000hours
Life-all-white(brightness halving) 50000hours
Environment temperature range Operating temperature range: -20-45℃ Storing temperature range: -30-65℃
Maximum power:/㎡ <1100W
Average power:/㎡ <280W
Self-check technology

LED spot self-check, communications check, power check,

temperature monitor(need customization)

Remote monitoring

Remote supervision and control, record potential fault,

send out warning signs to the operators.(need customization)

Software environment WindowsNT,Windows1999,WindowsXP
Luminous point width between centres Deviation<3%
Brightness uniformity <10%
Color uniformity(chromaticity coordinate) ±0.003
Power supply request AC85-264V(50Hz-60Hz)
Contrast (1000:1)
System protection Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working) working:10-95%
Humidity(storing) storing:10-95%

Outdoor Waterproof P3 P3.91 P4.81 P3 Stage LED Screens 0

♦ Production process:

1) Incoming Inspection→2) SMD→3) Plug-in

→4) Wave Soldering→5) After Welding→6) Testing

→7) Semi Finished Aging→8) Module Assembly

→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing

Outdoor Waterproof P3 P3.91 P4.81 P3 Stage LED Screens 1

About us:

Established in 2005, clients cover more than 50 cuntries, Mainly USA, Europe, dubai, north and mid america, south america, asia. As a high-tech enterprise integrated with scientific research, design, production, maintenance, sales and system integration, we have a professional high-quality technical R & D team,rich experienced engineers and professional product development and design engineers,excellent marketing team, pre and after-sales 24 hours service. Even face with harshest environment,we can carefully choose different suitable materials and make the best offer.

Outdoor Waterproof P3 P3.91 P4.81 P3 Stage LED Screens 2



Parameters

Item P2.604 P2.97 P3.91 PH3.91 PH4.81
Pixel Pitch (mm) 2.604 2.97 3.91 3.91 4.81
Pixel Configuration 1R1G1B 1R1G1B 1R1G1B 1R1G1B 1R1G1B
LED Type SMD1515 SMD1515 SMD2121 SMD1921 SMD1921
Pixel Density (dot/m²) 147456 112896 65536 65536 43264
Module Size (W×H×D)(mm) 250x250 250x250 250x250 250x250 250x250
Module Resolution (W×H) dot 96x96 84x84 64x64 64x64 52x52
Cabinet Size(W×H×D)(mm) 500x500 500x500 500x500/500x1000 500x500/500x1000 500x500/500x1000
Cabinet Material Die-casting Aluminum Die-casting Aluminum Die-casting Aluminum Die-casting Aluminum Die-casting Aluminum
Driving Method 1/32 1/28 1/16 1/16 1/13
Flatness (mm) ≤0.10 ≤0.10 ≤0.10 ≤0.10 ≤0.10
Gray Scale (Bit) 14 14 14 14 14
Use Environment Indoor Indoor Indoor Outdoor Outdoor
Waterproof Level IP45 IP45 IP45 IP65 IP65
Maintenance Mode Front rear Front rear Front rear Rear Maintenance Rear Maintenance
Brightness 700-900 700-900 800-1000 1000-3300 1000-3300
Framing Frequency 50/60Hz
Refresh Frequency 3840 HZ
Supply Voltage 4.2 V low voltage power supply, low heat, stable white balance, good picture reduction; low power consumption, more energy saving

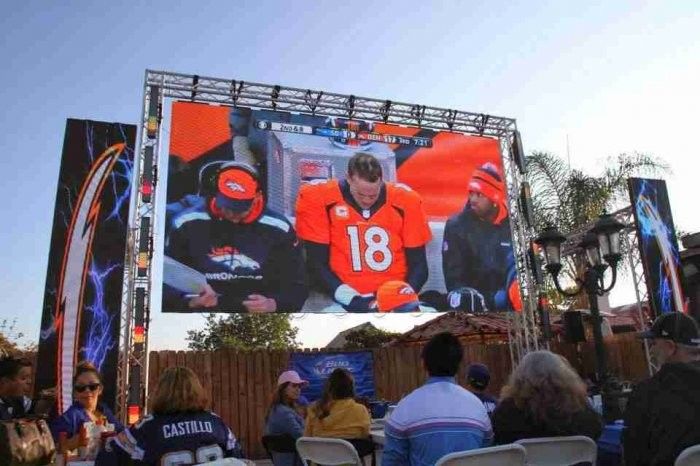

Rental LED Project

MPLED LED display have been exported to more than 100 countries and districts with more than 3000 successful projects, such as USA, CANADA,GERMANY,RUSSIA,UKRAINE,TURKEY, MIDDLE EAST, THAILAND,SINGAPORE,INDONESIA, SOUTH KOREA,MEXICO,ARGENTINA etc.
MPLED outdoor rental led display mainly used for commercial promotion,exhibition, concert, wedding ceremony
and other outdoor events.

Outdoor Waterproof P3 P3.91 P4.81 P3 Stage LED Screens 3Outdoor Waterproof P3 P3.91 P4.81 P3 Stage LED Screens 4

♦ Packaging and shipping

Wooden case or flight case package are available.

Shipping by sea,air or DHL,multiple shipping ways for your choice.

Outdoor Waterproof P3 P3.91 P4.81 P3 Stage LED Screens 5

♦ Why choose us:

Continues Quality

With more than 10 years experience in led display producing,equipments are updated regularly.What’s

more,unique standardized and module production ensure our products continuous quality.



Competitive Price

With large scale production capacity and professional production technology,our company have built

effective modular production.We always stick to promote the technical innovation and reduce cost to

benefit customers.



Fast Delivery

Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency

inventory will be used to maintain your uninterrupted supply of the products.



Perfect Service

Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to

you.

After-sales:We will track the products usage and then constantly perfect our products.

Outdoor Waterproof P3 P3.91 P4.81 P3 Stage LED Screens 6
