Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China |
| Brand Name: | SCX |
| Certification: | CE,ROHS,FCC,SASO,BIS,ISO-9001 |
| Model Number: | P6 |
| Minimum Order Quantity: | negotiation |
|---|---|
| Price: | negotiation |
| Packaging Details: | Flight Case , 700*700*380mm |
| Delivery Time: | 7 Working Days |
| Payment Terms: | Western Union,, T/T, L/C, D/A, D/P, MoneyGram |
| Supply Ability: | 3,000 sqm per Month |
| Module Size: | 192x1692mm | Pixel Pitch: | 6mm |
|---|---|---|---|
| Module Resolution: | 32x32 | Driving Mode: | 1/8 |
| Brightness: | ≥6000cd | Color Temperature Condition: | 3500K～9500K,(can Be Adjustable) |
| Number Of Colors: | 16.7 Trillion | Viewing Angle: | Horizontal 140° Vertical 120° |
| Led Lamp: | NationStar | ||
| Highlight: | P6 led panel full color,Movable led outdoor display board |
||
Super Light P6 Outdoor Led Screen For Fixed Rental Use Movable Led Display For Concert Background
Features
◆3 times aging process.
◆Salt spray test, high voltage test, variable temperature test, waterproof test, vibration test.
◆Adopt dual-channel heat dissipation, long service life and low attenuation.
◆Adopt patented mask design, with waterproof and dustproof functions, and protection level reaches IP66.
◆Use anti-UV module mask, it will not deform under the sun, and anti-oxidation module frame can prevent deformation.
◆Energy-saving outdoor fixed LED display
◆Able to work in all-weather outdoor environment. High protection level IP65 is suitable for winter and cold areas such as Nordic countries and Russia, as well as high temperature areas such as KSA, Oman, UAE, etc.
◆Ultra-light p6 outdoor LED screen for rental, mobile LED display for concert background
◆Nightclubs, entertainment events, new product press conferences, stadiums, stage backgrounds, TV shows, concerts, TV studios, etc.
Specification
| Pixel Pitch | 6mm |
| Pixel Density | 27777dots/sqm |
| Color Configuration | 1R1G1B |
| LED Package | SMD3535/ SMD2727 |
| Module Resolution | 32dots x 32dots |
| Drive Mode | 1/8 Scan, Constant Current |
| Viewing Angle | H: 140°; V:140° |
| Refresh Rate | 1920HZ-3840hZ |
| Frame Rate | 120frame/sec |
| Grey Scale | 16.7M colors(Synchronized) |
| Color Temperature | R.G.B brightness 256 level adjustable |
| Power Input | AC110V/ 220V ±10%, 50HZ |
| Max Power Consumption | 900W/sqm |
| Ave. Power Consumption | 300W/sqm |
| Working Temperature | -20℃~+65℃ |
| Blind Spot Rate | <1/10000 |
| Life Span | >100,000 Hours |
| Waterproof | Front: IP65 Rear: IP54 |
| Operating Humidity | 10%~95% |
| Operating System | Win 98, Win2000, XP, Win7 ,Win8, Win10.etc |
| Certificate | CE, RoHS,CB,IECEE |

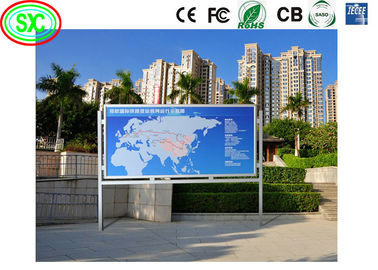

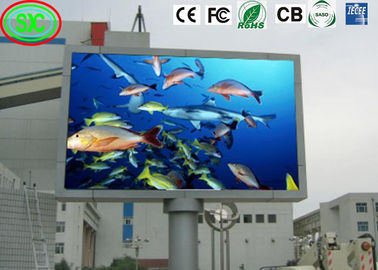

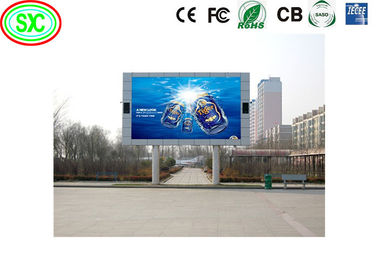

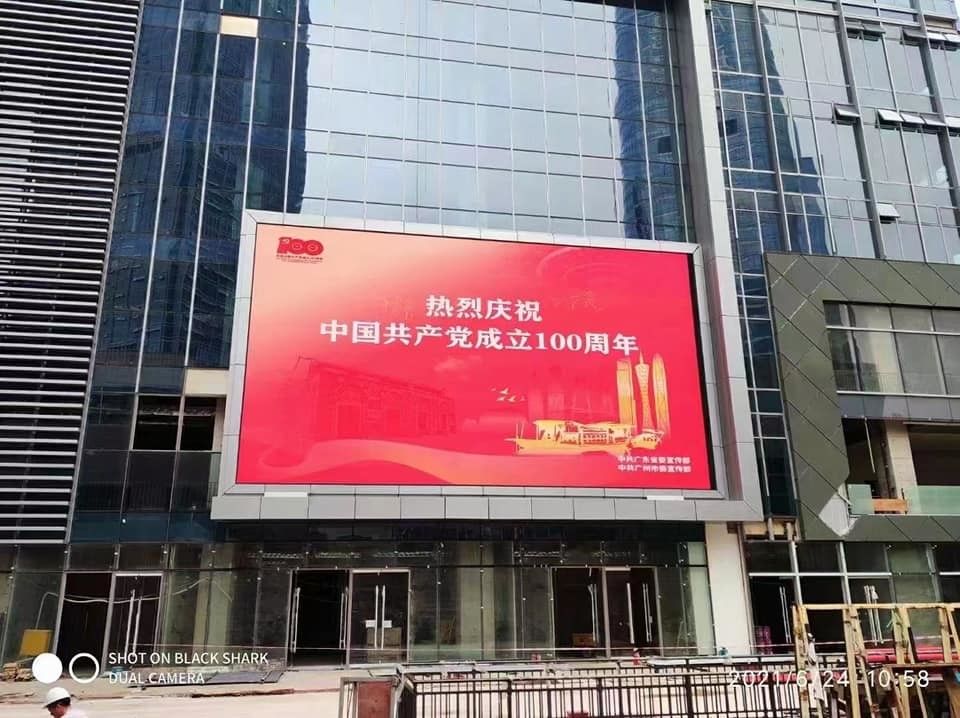

Product Picture
How to Control
Various Shaped LED Display
Cylinder LED display, Curved LED display, 90 degrees LED display, Round LED display, LED ball.
LEDFUL supply more design and more solutions.
Our Service
1)Your inquiry related to our products or price will be replied in 24hrs
2)OEM&ODM,any your customized lightings we can help you to design and put into product
3)Distributoership are offered for your unique design and some our current models
4)Protection of your sales area,ideas of design and all your private information
5)Top Quality+Reasonable Price+Responsible After Service=Successful & Win
Trade Terms
1.Payment:T/T,30% deposits before production,70% balance to be paid before dleiverying
2.Shipping freight are quoted under your requests
3.Shipping port:ShenZhen,Mainland China
4.MOQ:1sqm
