Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | CHINA |
| Brand Name: | SCXK |
| Certification: | CB,CE,ROHS,FCC,SASO |
| Model Number: | SMD-P10 |
| Minimum Order Quantity: | 9 sqm |
|---|---|
| Price: | negotiation |
| Packaging Details: | wooden case，flight case，it is up to you. |
| Delivery Time: | 7-13 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 3800 Sqm month |
| Application:: | Outdoor | Color:: | Full Color |
|---|---|---|---|
| Panel Size:: | 960mm X960mm | Pixel Pitch:: | 10mm |
| Display Function:: | Video | Certificate:: | CE ROHS FCC ISO9001 |
| Brightness:: | 6500cd/sqm | Pixel Density:: | 10,000pixels/m2 |
| Cabinet Size:: | 640*640mm/960*960mm/1024*1024mm | Best View Angle:: | Horizontal:120°, Vertical:120° |
| Module Resolution::: | 32 * 16 Pixels | Installation:: | Fixed Steel Structure |
| High Light: | 3535 p10 led display,1R1G1b led full color display |
||
SCX LED Full Color Waterproof Fixed Outdoor P10 LED Advertising Display Screen Board
Feature
High brightness and good quality by adopting high quality leds.
. Modular design, flexible cabinet size to meet up with different requests.
. High polymer flexible mask, no mosaic phenomenon ,better contract ratio.
. Great uniformity and screen flatness.
. Anti-UV module mask, Anti-Oxidation module frame with protection from deformation.
♦ Product specification
| SMD P10 | ||||||||||||||
| Lamp size | 3535 | |||||||||||||
| Resolution/mm | 10 | |||||||||||||
| Pixel configuration | RGB 3 in 1 | |||||||||||||
| Pixel density/pixels/sqm | 10000sqm | |||||||||||||
| Module resolution | 32x16 | |||||||||||||
| Module size/mm | 320x160 | |||||||||||||
| View distance | ≥10m | |||||||||||||
| Single point brightness adjust | Can be added | |||||||||||||
| Single point color adjust | Can be added | |||||||||||||
| White balance brightness | >7000cd/㎡ | |||||||||||||
| Color temperature | 6500K-9500K | |||||||||||||
| Horizontal view angle | 120(degrees) | |||||||||||||
| Vertical view angle | 120(degrees) | |||||||||||||
| Signal Process bit | 10 or 14 bit | |||||||||||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | |||||||||||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:5km | |||||||||||||
| Driving mode | Constant driving current | |||||||||||||
| Scanning mode | 1/4 | |||||||||||||
| Frame rate | 60Hz | |||||||||||||
| Refresh frequency | >1920Hz | |||||||||||||
| Control mode | Computer synchronous | |||||||||||||
| Brightness adjusted range |
Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
|||||||||||||
| Out of control point | <1/10000 | |||||||||||||
| Working hours | ≥72hours | |||||||||||||
| Mean Time Between Failure | >5000hours | |||||||||||||
| Life time | 100000hours | |||||||||||||
| Life-all-white(brightness halving) | 50000hours | |||||||||||||
| Environment temperature range | Operating temperature range: -20-45℃ Storing temperature range: -30-65℃ | |||||||||||||
| Maximum power:/㎡ | <1100W | |||||||||||||
| Average power:/㎡ | <280W | |||||||||||||
| Self-check technology |
LED spot self-check, communications check, power check, temperature monitor(need customization) |
|||||||||||||
| Remote monitoring |
Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
|||||||||||||
| Software environment | WindowsNT,Windows1999,WindowsXP | |||||||||||||
| Luminous point width between centres | Deviation<3% | |||||||||||||
| Brightness uniformity | <10% | |||||||||||||
| Color uniformity(chromaticity coordinate) | ±0.003 | |||||||||||||
| Power supply request | AC85-264V(50Hz-60Hz) | |||||||||||||
| Contrast | (1000:1) | |||||||||||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | |||||||||||||
| Humidity(working) | working:10-95% | |||||||||||||
| Humidity(storing) | storing:10-95% | |||||||||||||

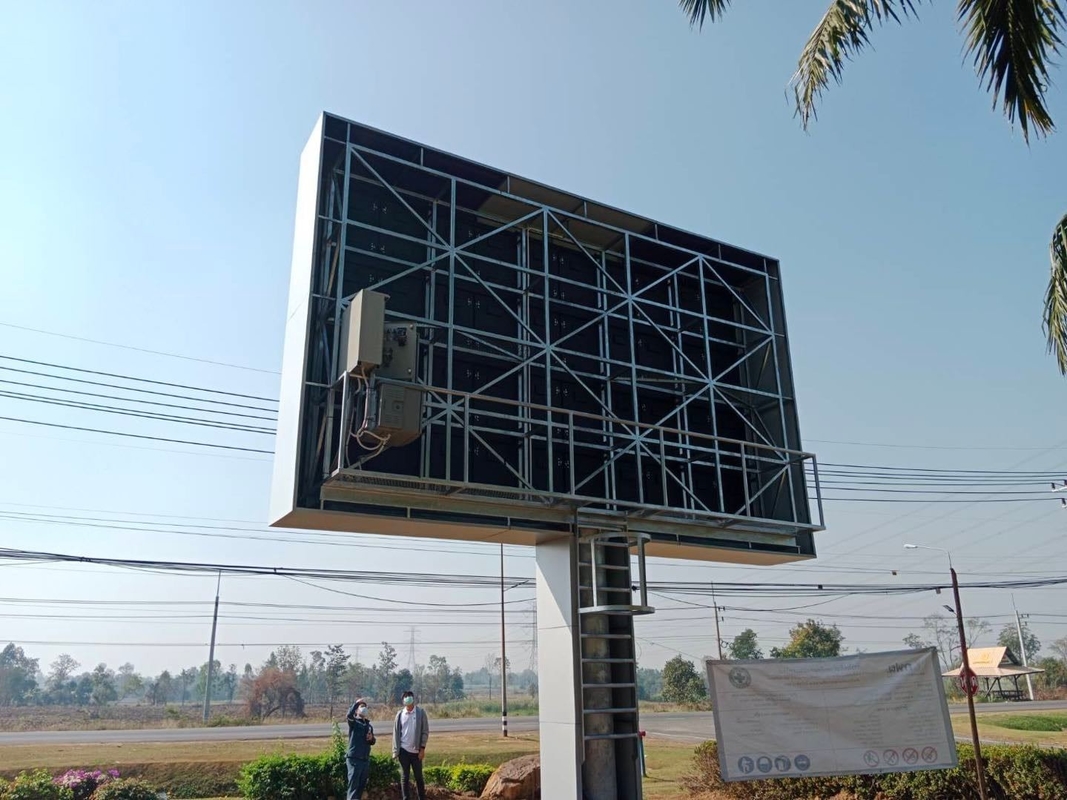

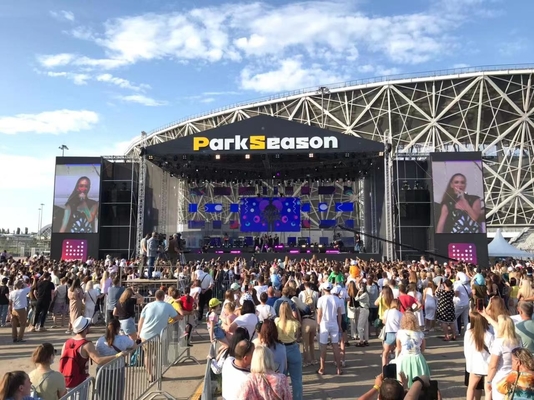

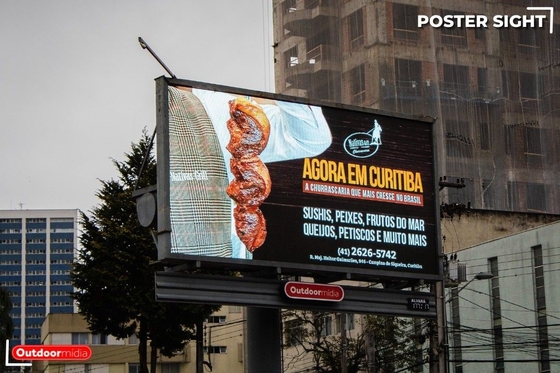

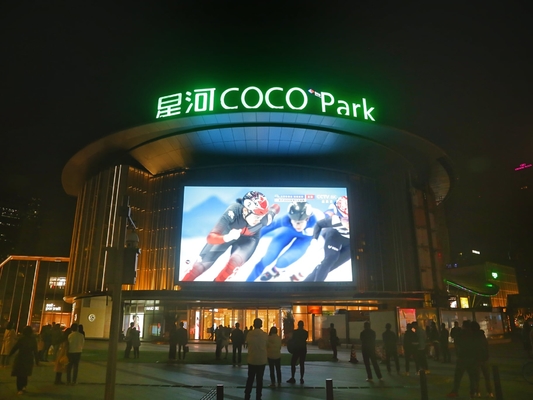

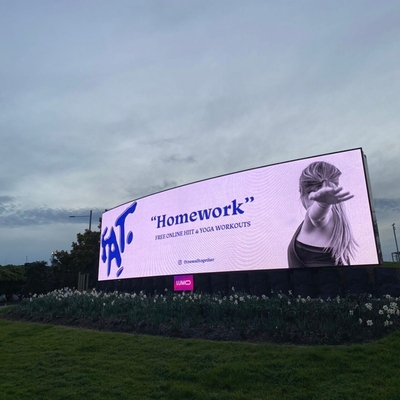

Our case
♦ Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
♦ Why choose us:
Continues Quality
With more than 10 years experience in led display producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products continuous quality.
Competitive Price
With large scale production capacity and professional production technology,our company have built
effective modular production.We always stick to promote the technical innovation and reduce cost to
benefit customers.
Fast Delivery
Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the products.
Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to
you.
After-sales:We will track the products usage and then constantly perfect our products.
FAQ
1),Vivid and exact picture, minimum noise, advanced test equipment, support any pc operation system and play a variety of information like video, word, flash, music, clock, graph etc.
2),High brightness and support brightness automatically adjustment.
3),Long lifespan, can reach more than 100,000 hours, while the power consumption is lower than one tenth of lamp or neon;
4),Easy & simple installation interface and user friendly software to ensure the user friendly interface of the LED display system;
5),Rich outdoor full color LED display screen engineering experience both in domestic and international market.
6),Well before, in,after-service.all for our customer reassurance.
