Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China，shenzhen |
| Brand Name: | SCX |
| Certification: | CB,CE,UL |
| Model Number: | indoor p3.91 |
| Minimum Order Quantity: | 13 sqm |
|---|---|
| Price: | negotiation |
| Packaging Details: | wooden case，flight case |
| Delivery Time: | 3-16 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 4300 sqm month |
| Warranty Time:: | 5 Years | Refresh Rate:: | 3840Hz - 5760Hz |
|---|---|---|---|
| Cabinet Size:: | 500mm X 500mm / 500mmx1000mm | LED Control System:: | Novastar / Linsn / Colorlight /HUIDU Card |
| Drive IC:: | MBI5153 | Power Supply:: | Meanwell |
| High Light: | 3.91mm Indoor Rental Led Display,Full Color Indoor Rental Led Display,Full Color 3.91mm Led Video Wall |
||
Full Color 3.91mm Indoor Rental Led Display With 500X500 Cabinet Led Video Wall
Technology Specification Datasheet
| S/N | Item | Technical Parameters | |||
| LED Parameters | |||||
| 1 | Item Name | LED Type | Brightness | Wave Length | H/V Visual Angle |
| 2 | Red LED | SMD192 | 120-140mcd | 620-625nm | 160º/120º |
| 3 | Green LED | SMD1921 | 360-435mcd | 520-525nm | 160º/120º |
| 4 | Blue LED | SMD1921 | 80-100mcd | 470-475nm | 160º/120º |
| Module Specification | |||||
| 1 | Pixel Pitch | 3.91mm | |||
| 2 | Pixel Configuration | Nationstar SMD 1921 1R1G1B(3in1) | |||
| 3 | Module Resolution | 64 x 64 pixels | |||
| 4 | Module Pixles | 4096 pixels | |||
| 5 | Module Size | 250mm X 250mm | |||
| 6 | Input Voltage | DC 5V | |||
| 7 | Power Consumption | Max 45W | |||
| Cabinet Specification | |||||
| 1 | Cabinet Size(W X H X D) | 500mm x 1000mm x 85mm or 500mm x 500mm x 85mm | |||
| 2 | Cabinet Resolution(dot) | 128 x 256 pixels or 128 x 128 pixels | |||
| 3 | Module Quanity (pcs) | 8pcs or 4pcs | |||
| 4 | Cabinet Pixels | 32768 pixels | |||
| 5 | Pixel Density | 65410 pixels/m2 | |||
| 6 | Cabinet Materials | Die Casting Aluminum Cabinet for rental purpose | |||
| 7 | Cabinet Weight | 12kg or 6kg per cabinet | |||
| 8 | Packaging | Fly case | |||
| Whole Screen Specification | |||||
| 1 | Screen Brightness | ≥7000cd/m2 | |||
| 2 | Driving Method | Constant current | |||
| 3 | Best Viewing Distance | 3.91m - 40m | |||
| 4 | Max. Power Consumption | 600W/m2 | |||
| 5 | Average Power Consumption | 300W/m2 | |||
| 6 | Gray Level | 8bits input, 4096 levels(212) | |||
| 7 | Display Color | 16M | |||
| 8 | Frame Frequency | ≥60Hz | |||
| 9 | Refresh Frequency | ≥3840Hz | |||
| 10 | Uninterrupted Working Hours | ≥72 hours | |||
| 11 | Screen Life-span | ≥100,000 hours | |||
| 12 | MTBF | ≥10,000 hours | |||
| 13 | Discrete Blind Spot Rate | <1/10000 | |||
| 14 | Continuous Blind Spot Rate | None | |||
| 15 | Blind Spot Rate | <1/10000 | |||
| 16 | Protective Scale | For indoor use, non-waterproof | |||
| 17 | Screen Plainness | <±1mm | |||
| 18 | Power Supply Mode | AC220±10% 50Hz/AC110±10% 60Hz | |||
| 19 | Environment Temperature | Temperature:-20 Celsius~+60 Celsius | |||
| 20 | Humidity | Humidity:10%~90% RH | |||
| 21 | Control Mode | Synchronous display with control PC by DVI | |||
| 22 | Control System | Linsn, Nova-star, Colorlight or as you required | |||
| 23 | Display Content | Video, DVD, VCD, TV, picture, cartoon, graphics, texts.etc. | |||
| 24 | Interface | Standard Ethernet | |||
| 25 | Transmission Distance | Multi mode fiber <500m, single mode fiber <30km,internet cable <100m | |||
| 26 | Power Supply Brand | G-energy, MeanWell, CZCL or as you required | |||
LEEMAN FACTORY WORKSHOP

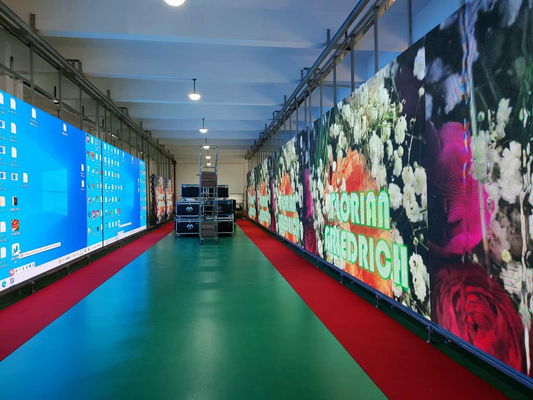

Production line
Indoor and outdoor die-casting rental aluminum cabinet:
1) Lightweight
2) Seamless connection
3) Ultra thin
4) Easy to maintain
5) Easy to install
6) Noiseless
7) Ghost Cancelling
8) High refresh rate
9) Low brightness and high gray scale
10) Low power consumption
Contact Person: BOSCO
Tel: +8615177780539
