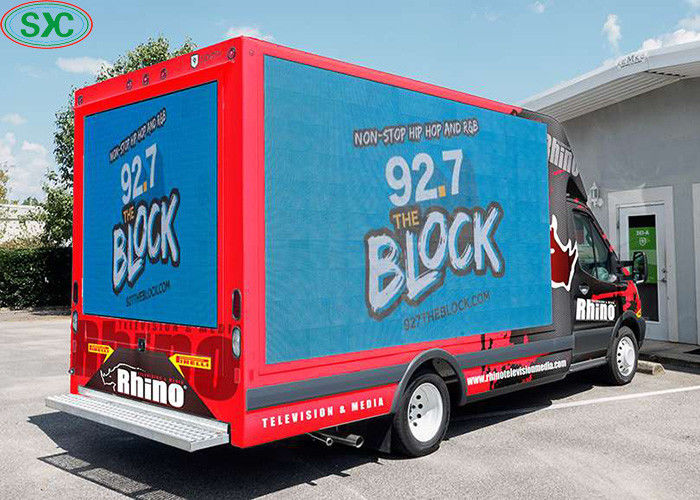

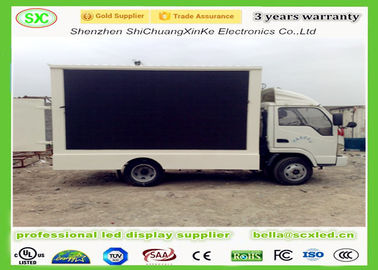

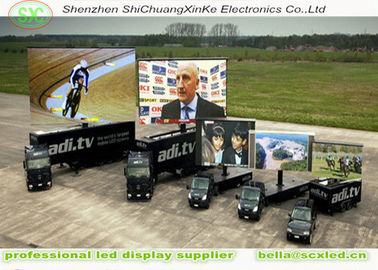

P5 Outdoor Mobile Truck LED Display 5mm Pixel Pitch IP65

P5 Outdoor Mobile Truck LED Display 5mm Pixel Pitch IP65

Product Details:
Place of Origin: Shenzhen China
Brand Name: SCX
Certification: CE/ROHS/FCC/ISO/CB
Model Number: P5
Payment & Shipping Terms:
Minimum Order Quantity: 5 pcs
Price: negotiation
Packaging Details: flight case, wooden case, carton, it is up to you.
Delivery Time: 7-10 working days after receive your payment
Payment Terms: T/T,Western Union,MoneyGram,L/C
Supply Ability: 5000 sqm per month
Contact Now
Detailed Product Description
Pixel Pitch: 5mm Module Size: 320*160mm
LED Chip: Nationstar Warranty: 3 Years
Protection Level: IP65 Pixel Density: 40000dots/sqm
Chip Color: Full Color Brightness: >=5000cd/sqm
Highlight:

P5 outdoor truck LED display

,

IP65 waterproof mobile LED screen

,

5mm pixel pitch LED display

China Full Color LED Mobile Truck P5 Mobile LED Advertising Billboards Screen Outdoor
Product Attributes
Attribute Value
Pixel Pitch 5mm
Module size 320*160mm
LED chip Nationstar
Warranty 3 years
Protection Level IP65
Pixel density 40000dots/sqm
Chip color full color
Brightness >=5000cd/sqm
HD P5 Outdoor Waterproof Fixed Mobile Truck LED TV Screen/LED Display

Our high-quality P5 LED display offers exceptional performance for outdoor advertising applications.

High IP Rating IP66 - Safe and Reliable

The special waterproof design of P8 LED Screen Display protects it from water and dust. When installed in outdoor areas, protection is a serious matter. Special guard protects it from environment dangers. High IP Rating IP66 ensures great quality outputs in every condition.

P5 Outdoor Mobile Truck LED Display 5mm Pixel Pitch IP65 0
Best Quality Guaranteed

Quality is the word we live by. Our "Quality Management, Continual Improvement, Excellent Service, Quick Response" are strictly followed throughout the process. Our products have passed many certifications including CE, FCC, RoSH and SGS certification and many more. So you may always rest assured about best quality products.

P5 Outdoor Mobile Truck LED Display 5mm Pixel Pitch IP65 1
Product Specifications
Specification Details
Type Outdoor P5 SMD
Lamp size 3535
Resolution/mm 5
Pixel configuration RGB 3 in 1
Pixel density/pixels/m² 40000/m²
Module resolution 64x32
Module size/mm 320*160MM
View distance ≥4m
White balance brightness >5000cd/㎡
Color temperature 6500K-9500K
Horizontal view angle 120(degrees)
Vertical view angle 60(degrees)
Working temperature range -20-45℃
Storing temperature range -30-65℃
Average power <300W/㎡
Life time 100000hours
LED Module Process
P5 Outdoor Mobile Truck LED Display 5mm Pixel Pitch IP65 2
Installation

Preparation before installation:

P5 Outdoor Mobile Truck LED Display 5mm Pixel Pitch IP65 3

Installation procedure:

P5 Outdoor Mobile Truck LED Display 5mm Pixel Pitch IP65 4
Packaging and Shipping

Wooden case or flight case package are available. Shipping by sea, air or DHL, multiple shipping ways for your choice.

P5 Outdoor Mobile Truck LED Display 5mm Pixel Pitch IP65 5
Why Choose Us:
  • Continuous Quality: With more than 10 years experience in LED display production, equipment is updated regularly. Unique standardized and module production ensure our products' continuous quality.
  • Competitive Price: Large scale production capacity and professional production technology allow us to offer competitive pricing while maintaining quality.
  • Fast Delivery: We commit to meeting delivery deadlines, with emergency inventory procedures available to maintain uninterrupted supply.
  • Perfect Service: Comprehensive pre-sales consultation and after-sales support, including product usage tracking and continuous improvement.

Our team will be forever here to offer you full supports!
