Name: P8 Stadium LED Display 640x640mm IP65 Waterproof 5500CD Brightness
Brand: Shenzhen ShiXin Display Technology Co.,Ltd
SKU: P8
Price: 10000.00 USD
Availability: InStock

Home Products Stadium LED Display

P8 Stadium LED Display 640x640mm IP65 Waterproof 5500CD Brightness

Product Details:

Place of Origin:	Shenzhen in China
Brand Name:	SCXK
Certification:	CE/ROHS/FCC/ISO/CB/UL
Model Number:	P8

Payment & Shipping Terms:

Minimum Order Quantity:	10 sqm
Price:	negotiation
Packaging Details:	flight case/wooden case/carton
Delivery Time:	7-10 working days after receive your payment
Payment Terms:	T/T,Western Union,L/C,MoneyGram
Supply Ability:	3500 sqm per month

Contact Now

Detailed Product Description

Pixel Pitch:	8mm	Product Name:	Stadium Permeter LED Screen
Cabinet Material:	Die- Catsing Aluminum / Iron	Certificate:	CE,FCC,ROHS,CB,ISO,UL
Waterproof:	IP65	Chip Brand:	Epistar
Pixel Density:	15625 Dots /m2	Control System:	LSN
Surface Flatness:	GAP< 0.5mm
Highlight:	Waterproof Stadium LED Display , HD Stadium LED Display , Outdoor Stadium LED Display

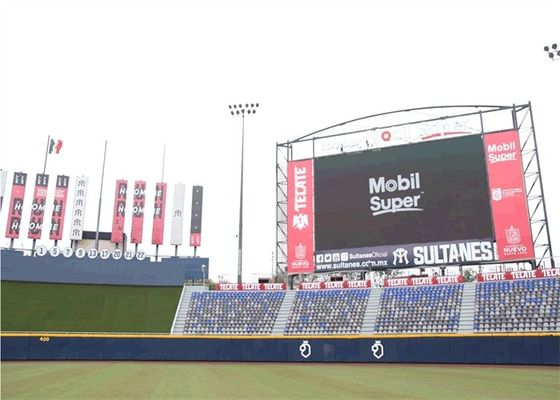

Stadium LED Display Outdoor P8 Waterproof Full Color SMD Type HD High Brightness

Product Attributes

Attribute	Value
Pixel pitch	8mm
Product name	Stadium Perimeter LED Screen
Cabinet material	Die-casting Aluminum / Iron
Certificate	CE, FCC, ROHS, CB, ISO, UL
Waterproof	IP65
Chip brand	Epistar
Pixel density	15625 dots/m²
Control system	LSN
Surface flatness	GAP < 0.5mm

Product Description

Outdoor P10 P8 P6 Football Basketball Stadium Perimeter LED Screen Display Full Color LED Pantalla

Specification

Pixel Pitch	P8
Pixel Configuration	SMD3535/2727
Density (Pixels/m²)	15,625
Module Resolution (Pixel)	32x16
Module Size (mm)	256x128
Driving Mode (Duty)	1/4
Cabinet Size (mm)	640x640
Cabinet Weight (KG)	11.5
Brightness (CD/m²)	≥5,500
Viewing Angle (°)	H:160 V:140
Gray Grade (Bits)	14
Operation Power	AC100-240V 50-60Hz
Max. Power Consumption (W/m²)	550
Avg. Power Consumption (W/m²)	300
Frame Frequency (Hz)	≥60
Refresh Frequency (Hz)	≥3,840
Working Temperature (ºC)	-20～+60
Lifetime (Hours)	100,000
Protecting Grade	IP65(front),IP54(rear)

Product Details of Stadium Perimeter LED Screen

High refresh rate, no flicker during live switch - Up to 3800Hz refresh rate, without the phenomenon of drag and flicker under the shooting conditions of professional cameras and cameras of 1/2800 seconds, which ensures a fine high-definition display screen.

320MMX160MM standard size modules - 960mm Series LED display with standard size panel: 320*160mm. Quick assembling and maintenance with easy pixel pitch change capability.

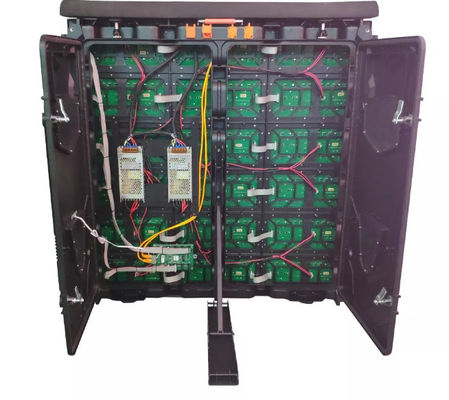

Exquisite cabinet design features - Less weight with quick locks, delicate structure for easy installation without gaps. Humanization handlebar design for easy movement.

Independent support structure - Rotatable and adjustable, can stand even when subjected to strong external impact. Supports 60°-90° multi-angle adjustment.

Soft mask design - Soft surface and unique protective pad effectively protects people's safety when contacting the LED screen.

Ultra light weight cabinet - Outdoor stadium 960 series LED display weighs only 28.5kg, easy to transport and install, saving labor costs.

Waterproof performance - Special air inlet and waterproof structure with excellent water resistance and heat dissipation design.

IP65 protection level - All-weather outdoor environment capability with unique protection technology. Works normally in any weather condition with anti-ultraviolet and steady performance.
