Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | SHENZHEN |
| Brand Name: | SCXK |
| Certification: | CE/ROHS/FCC/ISO/UL/CB/IECEE/SABER |
| Model Number: | P2.5 |
| Minimum Order Quantity: | negotiation |
|---|---|
| Price: | negotiation |
| Packaging Details: | flight case, wooden case, carton, it is up to you. |
| Delivery Time: | 7-10 working days after receive your payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 3000sqm per month |
| Model: | P2.5 | Screen Dimension: | Customized |
|---|---|---|---|
| Tube Chip Color: | Full Color | Usage: | Indoor |
| Display Function: | Video,Animation,Graphics | Brightness: | 1000cd/sqm |
| Warranty: | 3~5 Years | Life Span: | 3000hours |
| Module Size: | 320*160 Mm | ||

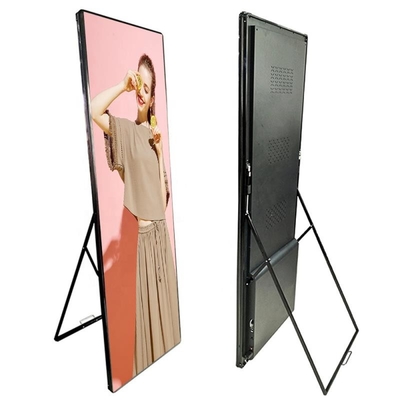

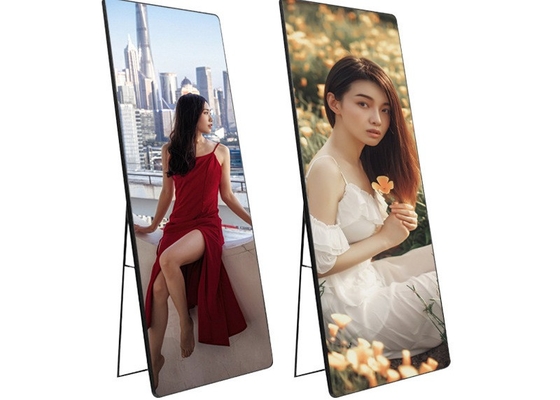

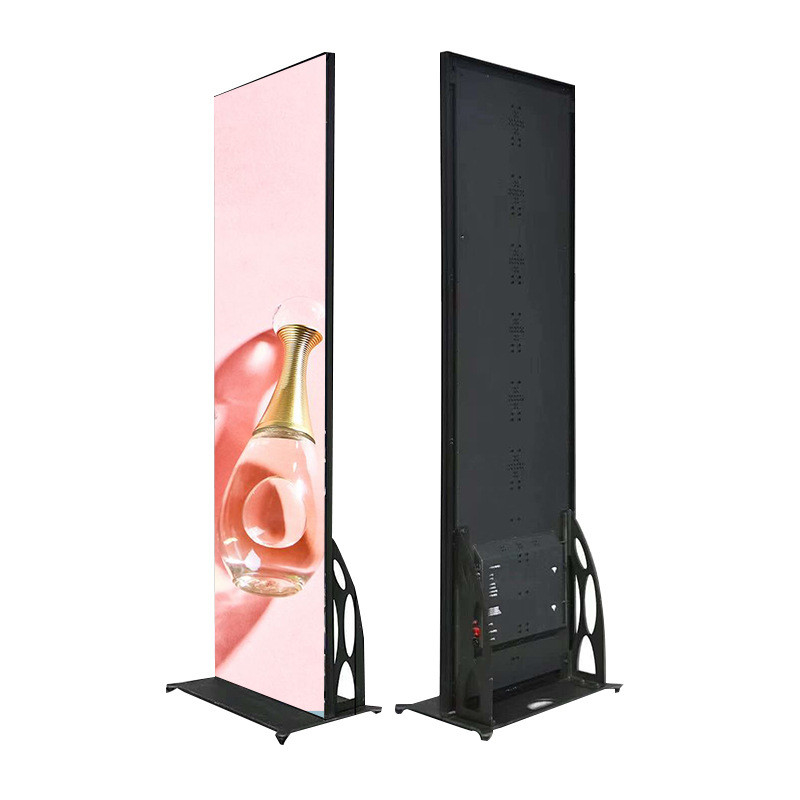

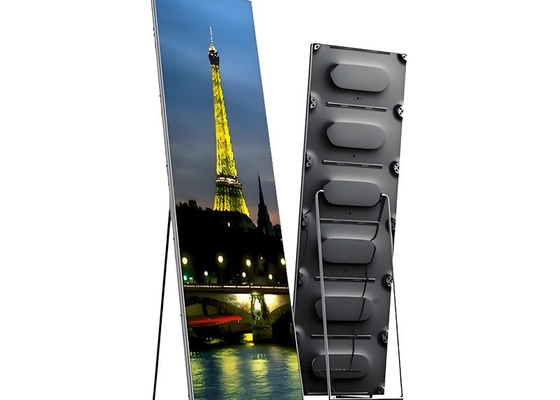

| Highlight: | HD Standing Showcase Mirror Screen,Indoor LED Full Color Poster Screen,Rental LED Full Color Poster Screen |
||
Product specification
| indoor SMD P2.5 | ||||||||||||||
| Lamp size | 1515 | |||||||||||||
| Resolution/mm | 2.5 | |||||||||||||
| Pixel configuration | RGB 3 in 1 | |||||||||||||
| Pixel density/pixels/m² | 160000/m² | |||||||||||||
| Module resolution | 64x64 | |||||||||||||
| Module size/mm | 160x160mm | |||||||||||||
| View distance | ≥1.5m | |||||||||||||
| Single point brightness adjust | Can be added | |||||||||||||
| Single point color adjust | Can be added | |||||||||||||
| White balance brightness | >2000cd/㎡ | |||||||||||||
| Color temperature | 6500K-9500K | |||||||||||||
| Horizontal view angle | 120(degrees) | |||||||||||||
| Vertical view angle | 60(degrees) | |||||||||||||
| Signal Process bit | 10 or 14 bit | |||||||||||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | |||||||||||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:5km | |||||||||||||
| Driving mode | Constant driving current | |||||||||||||
| Scanning mode | 1/8 | |||||||||||||
| Frame rate | 60Hz | |||||||||||||
| Refresh frequency | >3000Hz | |||||||||||||
| Control mode | Computer synchronous | |||||||||||||
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
|||||||||||||
| Out of control point | <1/10000 | |||||||||||||
| Working hours | ≥72hours | |||||||||||||
| Mean Time Between Failure | >5000hours | |||||||||||||
| Life time | 100000hours | |||||||||||||
| Life-all-white(brightness halving) | 50000hours | |||||||||||||
| Environment temperature range | Operating temperature range: -20-45℃ Storing temperature range: -30-65℃ | |||||||||||||
| Maximum power:/㎡ | <900W | |||||||||||||
| Average power:/㎡ | <300W | |||||||||||||
| Self-check technology | LED spot self-check, communications check, power check, temperature monitor(need customization) |
|||||||||||||
| Remote monitoring | Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
|||||||||||||
| Software environment | WindowsNT,Windows1999,WindowsXP | |||||||||||||
| Luminous point width between centres | Deviation<3% | |||||||||||||
| Brightness uniformity | <10% | |||||||||||||
| Color uniformity(chromaticity coordinate) | ±0.003 | |||||||||||||
| Power supply request | AC85-264V(50Hz-60Hz) | |||||||||||||
| Contrast | (1000:1) | |||||||||||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | |||||||||||||
| Humidity(working) | working:10-95% | |||||||||||||
| Humidity(storing) | storing:10-95% | |||||||||||||
Features
&. Pixel pitch can be 2.5mm; Cabinet Size can is 480mm x 480mm.
&. Die-casting Aluminal frame, Lightweight, ultra-thin body of the screen design, effectively saving freight costs.
&. Popular apply to main screen, sides screen, sky screen, dancing floor screen combination use.
&. High contrast ratio, high refresh rate makes the screen without any delay or smear phenomenon.
&. Status indicator on backcover lets you know the working status of LED cabinet without opening backcover.
&. Cost-effective solution and very popular
