Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | ShenZhen in China |
| Brand Name: | SCXK |
| Certification: | CE/ROHS/FCC/ISO/UL |
| Model Number: | P5 |
| Minimum Order Quantity: | 2 sqm |
|---|---|
| Price: | negotiation |
| Packaging Details: | flight case, wooden case, carton, it is up to you. |
| Delivery Time: | 7-10 working days after receive your payment |
| Payment Terms: | Western Union, MoneyGram, D/P, T/T, L/C |
| Supply Ability: | 6000 sqm per month |
| Pixels: | 5mm | Tube Chip Color: | Full Color |
|---|---|---|---|
| Led Type: | SMD 2727 | Display Function: | Video/Image |
| Waterproof: | Ip65 | Cabinet: | Iron Or Aluminum For Options |
| Frame Frequency: | >=60HZ | Average NO Failure: | >=1000hours |
| Transmiiting Distance: | Internet Cable <100m | Refresh Rate: | >=180HZ |
| Maximum Power: | 600m2 | The Optimum: | 600w/m2 |
| Highlight: | p5 car led sign display,aluminum cabinet car led sign display,Aluminum Cabinet LED Video Display |
||

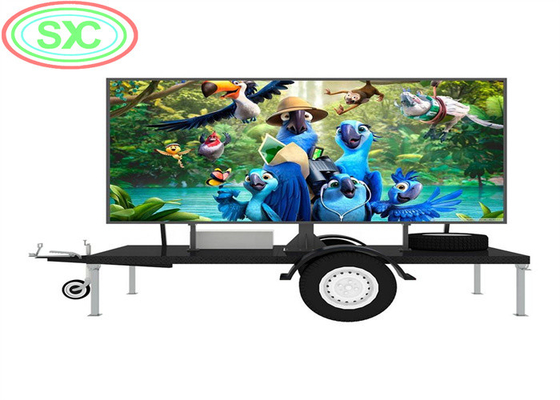

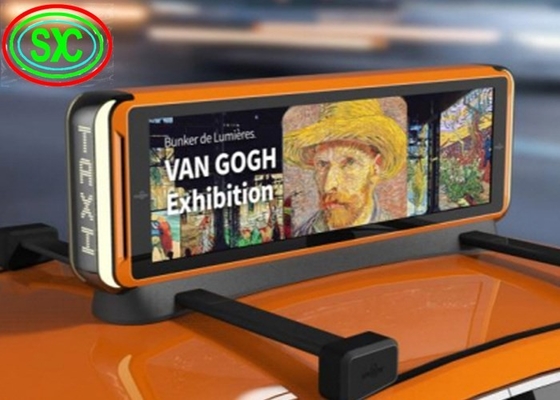

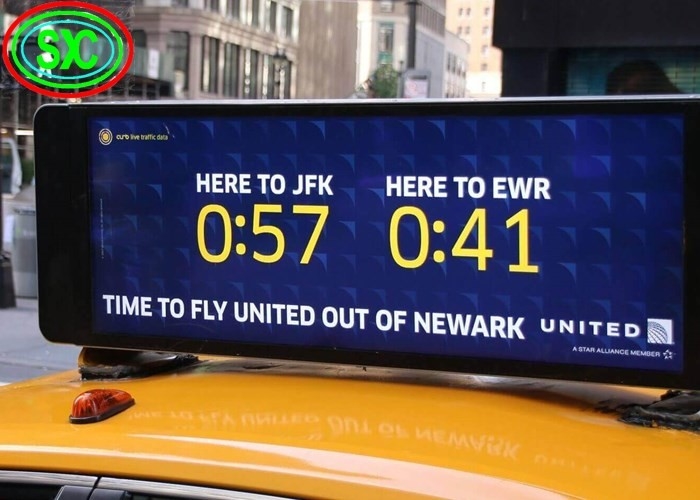

P5 Car Led Display Led Video Display 2 inch Full Color Led Display 1R1G1B
♦ Our mission:
To be the premier providr of creative,marketing and innovative solutions devoted to helping other companies succeed and grow.
♦ Product Description
1. Lightweight. Convenient in transporting and installing & saving labor cost, suitable for flow shows.
2. Nice appearance and simple structures.
3. Jointed correctly, being installed & dismounted by one person without tool.
4. Humanized operating interface with breakdown indicator lights, easy to maintain.
5. High debugging brightness and no damage to gray scale, achieving the debugging technology for nice image.
♦ Applications
--- Outdoor and indoor advertising, digital billboards, advertising companies
--- Sports halls, fields, playgrounds,school church
--- Airports, bus stations and railway passenger terminals.
--- Facades of shopping malls, department stores, banks and car dealerships.
--- Architecture and social projects, information systems in cities.
--- Show-business, concerts, festivals, motor shows and other public events.
♦ Technical Specification
| Outdoor SMD P5 | |
| Resolution/mm | 5 |
| Pixel configuration | 1R1G1B |
| Pixel density/pixels/m² | 40000m2 |
| Module resolution | 32*32 |
| Module size/mm | 160*160 |
| View distance | 4-300m |
| Single point brightness adjust | Can be added |
| Single point color adjust | Can be added |
| White balance brightness | >8000cd/㎡ |
| Color temperature | 6500K-9500K |
| Horizontal view angle | 80(degrees) |
| Vertical view angle | 60(degrees) |
| Signal Process bit | 10 or 16bit |
| Driving mode | Constant driving current |
| Scanning mode | static dring |
| Frame rate | 60Hz |
| Refresh frequency | 3000Hz |
| Control mode | Computer synchronous |
| Brightness adjusted range |
Manual, automatic operation, stepless continuous adjusted |
| Out of control point | <1/10000 |
| Working hours | >72hours |
| Mean time Between Failure | >500hours |
| life time | >100000hours |
| Envirornment temperature range | operating temperature range -200c-500c |
| Maximun power :/m2 | -<800w |
| Average power:/m2 | <300w |
| Self-check technolog | LEDspot self-check,communication check,power check,temperature monitor(need customization) |
| Remote monitoring | Remote supervision and control,record potential fault send out warning signs to the operators(need customization) |
| Software environment | windows NT,Windows 1999,Windows XP |
| Input power cable | AC110v to220v |
| Signal input | DVI |
| Warranty | 2years quality warranty ,10 years spare parts support |
Our Services
1.Your inquiries related to our products will be replied within 1 day.
2.OEM & ODM,any customized lightings we can help u to design and put them into production.
3.Distributors ship are offered for your unique design and some current models.
4.Protection of your sales are ideals of design and all your private information.
5.Top quality and reasonable price and responsible after service=win win situation.
Workshop:
Certificates:
