Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China(Mainland) |
| Brand Name: | SCX |
| Certification: | CE,ISO,FCC,UL |
| Model Number: | SCX-P8 |
| Minimum Order Quantity: | 5 M² |
|---|---|
| Price: | 525 USD/M² |
| Packaging Details: | Wooden and flight cases. |
| Delivery Time: | 12-15 working days. |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000M²/month |
| Brand: | SCX RGB Screen | Cabinet: | Iron |
|---|---|---|---|
| Pixel Pitch: | 8mm | Module Size: | 256*128mm |
| Cabinet Size: | 1024*768mm | Miantance: | Pre-maintance |
| Warranty: | 3 Years | Installation: | Outdoor |
| Highlight: | Lightweight Full Color LED Display,Outdoor Waterproof Full Color LED Display,IP65 Full Color LED Display |
||

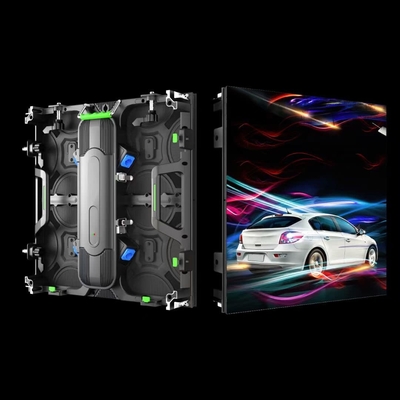

Outdoor Full Color LED Display Pre-maintance P8 Light Weght IP65
Pre-maintance:
This type of installation is very easy for buyers to evaluate
, you don't need to remove the cabinet, just remove the module with a bolt driver.
This design can save labor, material and financial resources.
And the price is also very suitable, not very high, but very convenient, many customers have bought it to install in buildings.
Short introduction:
1. The cabinet is made of iron and the size is 960*960;
2. The waterproof level is IP65, which can protect the screen well;
3. The instructions are very simple, such as the control system and playback software;
Specifications :
| Outdoor P8 Pre-maintance LED Display | |||||
| Resolution/mm | 8 | ||||
| Pixel configuration | 1R1G1B | ||||
| Pixel density/pixels/m² | 15625/square meter | ||||
| Module resolution | 32x16 | ||||
| Module size/mm | 256x128 | ||||
| View distance | 8-100m | ||||
| Single point brightness adjust | Can be added | ||||
| Single point color adjust | Can be added | ||||
| White balance brightness | 5000cd/square meter | ||||
| Color temperature | 6500K-9500K | ||||
| Horizontal view angle | 120(degrees) | ||||
| Vertical view angle | 60(degrees) | ||||
| Signal Process bit | 10 or 16bit | ||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | ||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | ||||
| Driving mode | Constant driving current | ||||
| Scanning mode | 1/4 SCANNING | ||||
| Frame rate | 60Hz | ||||
| Refresh frequency | 1200Hz | ||||
| Control mode | Computer synchronous | ||||
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted | ||||
| 255 steps. No grey loss | |||||
| Out of control point | <1/10000 | ||||
| Working hours | ≥72hours | ||||
| Mean Time Between Failure | >5000hours | ||||
| Life time | 100000hours | ||||
| Life-all-white(brightness halving) | 50000hours | ||||
| Environment temperature range | Operating temperature range: -20-45℃ | ||||
| Self-check technology | LED spot self-check, communications check, power check, | ||||
| temperature monitor(need customization) | |||||
| Remote monitoring | Remote supervision and control, record potential fault, | ||||
| send out warning signs to the operators.(need customization) | |||||
| Software environment | WindowsNT,Windows1999,WindowsXP | ||||
| Luminous point width between centres | Deviation<3% | ||||
| Brightness uniformity | <10% | ||||
| Color uniformity(chromaticity coordinate) | ±0.003 | ||||
| Power supply request | AC85-264V(50Hz-60Hz) | ||||
| Contrast | (1000:1) | ||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | ||||
| Humidity(working) | working:10-95% | ||||
| Humidity(storing) | storing:10-95% | ||||
Competitive advantage:
1.Timely response rate;
2.Patient service；
3.Enjoy two-year free warranty service;
4.Payment for T/T,you just need to pay 30% deposit,we will produce the goods;
5.When the down payment complicated,we will send it right away;
Any other questions,you can write to us online or send the email,
we will reply you in 1 hour!
Contact Person: Lillian seori
Tel: +8619386814677
