Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China ,Guang Dong |
| Brand Name: | Shichuangxinke |
| Certification: | CE RoHS FCC CCC TUV UL |
| Model Number: | SCXK-P5 |
| Minimum Order Quantity: | 3 square meters |
|---|---|
| Price: | USD600-1800 per square meters |
| Packaging Details: | wooden box flight case, wooden case, carton, it is up to you. |
| Delivery Time: | 7-10 working days after deposit payment received |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 5000sqm per month |
| Resolution/mm: | 5 | Pixel Configuration: | Full Color Red Green Blue |
|---|---|---|---|
| Scanning Mode: | 1/8 Scanning | Module Size: | 320x160mm |
| Certificates: | CE RoHS FCC CCC UL | Application: | Stadium,airport,shopping Mall,street Advertising |
| Material: | Die-casting Aluminum Alloy | Warranty: | 2-3 Years |
| Cabinet Size: | 640x640mm/960x960mm | ||
| Highlight: | P5 LED Display For Stage Layout,P5 LED Wall Video,P5 RGB Full Color LED Display |
||
LED Screen 640x640mm P5 RGB Full Color Rental LED Display for Stage Setting LED Wall Video
*Company Introduction
SCX was founded in 2009, our goal is to provide customers with the LED solutions that best suit their needs with years of LED production experience; from manufacturing single LED diode light sources, LED nameplates, desktop/wall LED signs, to full-building size full-color LED displays, we carefully craft every unit we manufacture to ensure that we produce the best quality products.

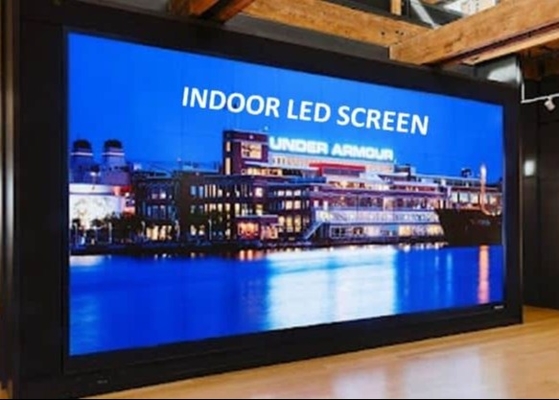

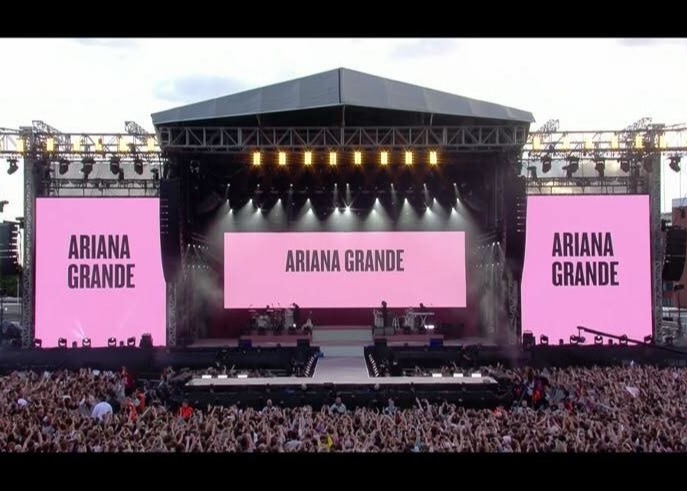

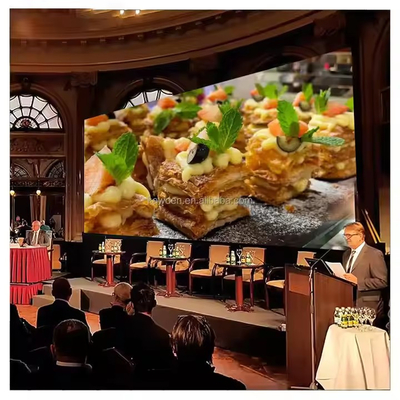

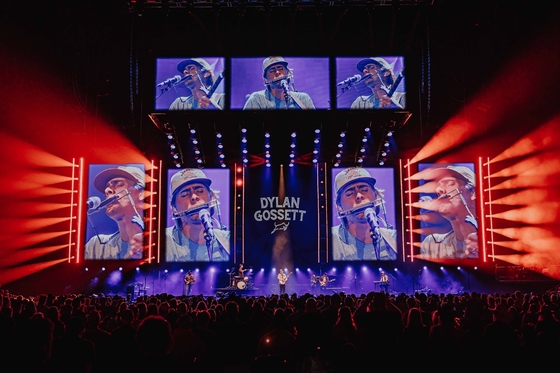

Application Cases:
Widely used in shopping malls, entertainment venues, schools, government agencies, trade shows, expositions, exhibitions, press conferences, conference rooms, cinemas, airports, hotels, interiors, station waiting areas, indoor stadiums and various public facilities, etc.
*Service:
1. Consultation response time: within 12 hours.
2. Design and produce according to your customized requirements.
3. Protect your sales area, design concept and all private information.
4. High quality + reasonable price + patient after-sales service.
5. Our warranty period is 2 years, and we will replace parts for free during the warranty period.
Transaction terms:
1. Packing: carton packing or wooden box packing
2. Payment method: T/T, 50% deposit before production, 50% balance before shipment.
We can provide photos for your confirmation before shipment.
3. Free support and technical training.
4. Port of shipment: Shenzhen, mainland China.
5. Warranty period: 2 years.
6. Delivery time: 3-15 working days.
*Specifications :
| outdoor SMD P5 | |||||
| Resolution/mm | 5mm | ||||
| Pixel configuration | 1R1G1B | ||||
| Pixel density/pixels/m² | 4000/m² | ||||
| Module resolution | 64x32 | ||||
| Module size/mm | 320x160mm | ||||
| View distance | 14-300m | ||||
| Single point brightness adjust | Can be added | ||||
| Single point color adjust | Can be added | ||||
| White balance brightness | >7500cd/㎡ | ||||
| Color temperature | 6500K-9500K | ||||
| Horizontal view angle | 120(degrees) | ||||
| Vertical view angle | 60(degrees) | ||||
| Signal Process bit | 10 or 16bit | ||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | ||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | ||||
| Driving mode | Constant driving current | ||||
| Scanning mode | 1/16 SCANNING | ||||
| Frame rate | 60Hz | ||||
| Refresh frequency | >3000Hz | ||||
| Control mode | Computer synchronous | ||||
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted | ||||
| 255 steps. No grey loss | |||||
| Out of control point | <1/10000 | ||||
| Working hours | ≥72hours | ||||
| Mean Time Between Failure | >5000hours | ||||
| Life time | 100000hours | ||||
| Life-all-white(brightness halving) | 50000hours | ||||
| Environment temperature range | Operating temperature range: -20-45℃ | ||||
| Self-check technology | LED spot self-check, communications check, power check, | ||||
| temperature monitor(need customization) | |||||
| Remote monitoring | Remote supervision and control, record potential fault, | ||||
| send out warning signs to the operators.(need customization) | |||||
| Software environment | WindowsNT,Windows1999,WindowsXP | ||||
| Luminous point width between centres | Deviation<3% | ||||
| Brightness uniformity | <10% | ||||
| Color uniformity(chromaticity coordinate) | ±0.003 | ||||
| Power supply request | AC85-264V(50Hz-60Hz) | ||||
| Contrast | (1000:1) | ||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | ||||
| Humidity(working) | working:10-95% | ||||
| Humidity(storing) | storing:10-95% | ||||
Our Projects:
♦ Why choose us:
Continues Quality
With more than 10 years experience in led display producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products continuous quality.
Competitive Price
With large scale production capacity and professional production technology,our company have built
effective modular production.We always stick to promote the technical innovation and reduce cost to
benefit customers.
Fast Delivery
Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the products.
Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to
you.
After-sales:We will track the products usage and then constantly perfect our products.
FAQ:
|
Q1: What's the warranty of your LED Display Screen ? A1: We have a 3-year warranty for our led display screen, and 100,000 hours life span of the led lamps. |
|
Q2: What about your pre-sale service and post-sale service? A2: For pre-sale service: We have a professional sales team and 13 years technical team who are willing to answer your question 24/7. We can offer a whole complete solution for your project! |
|
Q3: Whats your payment term? How long it takes to delivery? A3: We accept T/T and L/C, For both T/T and L/C, At least 30% deposit in advance, and the rest 70% before delivery. |
|
Q4: What's the control system? A4: For synchronization control: We use Nova, Linsn Or Colorlight control system. |
|
Q5: How can you ensure the led display product quality? A5: Our led display screen quality is our core competence, for 8 years, what we rely on. |
Welcome to visit our website and inquire us more info,waiting for you all the time!!!
