Place of Origin: | China ,Guang Dong |
Brand Name: | Shichuangxinke |
Certification: | CE RoHS FCC CCC TUV UL |
Model Number: | SCXK-P6.67 |
Minimum Order Quantity: | 1 square meters |
---|---|
Price: | negotiation |
Packaging Details: | wooden box flight case, wooden case, carton, it is up to you. |
Delivery Time: | 7-10 working days after deposit payment received |
Payment Terms: | L/C, T/T, Western Union, D/A, D/P, MoneyGram |
Supply Ability: | 5000sqm per month |
Pixel: | 6.67mm | Pixel Configuration: | Red Green Blue |
---|---|---|---|
Scanning Mode: | 1/8 | Module Size: | 320x160mm |
HS Code: | 8528591090 | Application: | Airport,wall,church Wedding,exhibition Stand |
Driver IC: | MB5024/MB5124 | Warranty: | 2-3 Years |
Cabinet Size: | 640x640mm | ||
Highlight: | Smudge-Free Outdoor Rental LED Display,P6.67 Outdoor Rental LED Display |
22478pixel/sqm P6.67 Outdoor Rental LED Display for TV Station
Product Feature:
(1) Light weight: Adopting aluminum alloy die-casting technology, the weight of a single box is only 13kg, which is easy to assemble and transport.
(2) Seamless connection: Adopting aluminum alloy die-casting technology, combined with high-precision CNC machining, the accuracy can reach ±0.05mm, realizing seamless splicing.
(3) Ultra-thin: There is no need to disassemble the entire screen for maintenance, and each component can be disassembled individually.
(4) Easy Maintenance: No need to disassemble the whole screen for maintenance, each component can be disassembled individually.
(5) NOISE-FREE: Aluminum construction eliminates the need for a fan, and with a noiseless power supply, the cabinet is completely silent.
(6) Eliminate ghosting: Fine and clear picture quality, no ghosting, can automatically eliminate upstream and downstream ghosting.
(7) High refresh rate: The refresh rate is more than 1880Hz, which ensures a wrinkle-free, streak-free and stable picture.
(8) Low Brightness, High Grayscale: 14Bit-16Bit grayscale, still provides excellent performance when the brightness is reduced to 20%.
(9). Easy Installation: No other tools are required. Two workers can complete a 20 square meter installation in just 15 minutes.
(10). High IP rating: IP65 ensures reliable operation in harsh environments.
Application Areas:
Indoor advertising, digital billboards, large corporate advertising
Indoor stadiums, sports fields, playgrounds.
Indoor stage backdrops

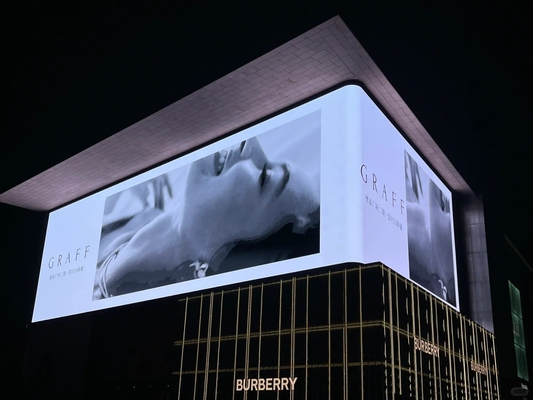

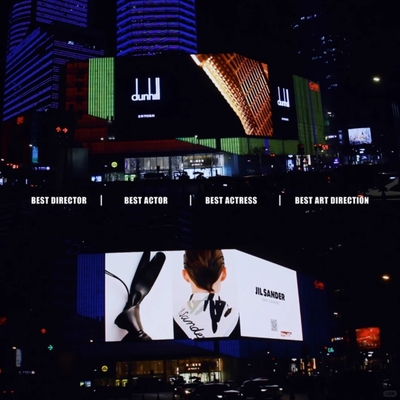

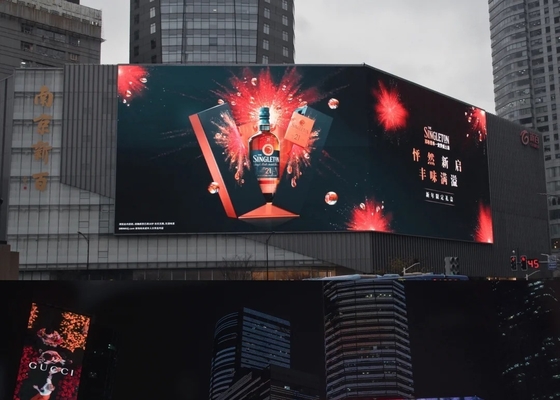

Exterior walls of shopping centers, department stores, banks and car dealerships.
Architectural and social projects, city information systems.
Show business, concerts, festivals, car shows and other public events
Entertainment venues, telecommunications and auction houses.
Specifications :
outdoor SMD P6.67 | |||
Resolution/mm | 6.67 | ||
Pixel configuration | 1R1G1B | ||
Pixel density/pixels/m² | 22478/m² | ||
Module resolution | 48x24 | ||
Module size/mm | 320x160mm | ||
View distance | 14-300m | ||
Single point brightness adjust | Can be added | ||
Single point color adjust | Can be added | ||
White balance brightness | >7500cd/㎡ | ||
Color temperature | 6500K-9500K | ||
Horizontal view angle | 120(degrees) | ||
Vertical view angle | 60(degrees) | ||
Signal Process bit | 10 or 16bit | ||
Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | ||
Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | ||
Driving mode | Constant driving current | ||
Scanning mode | 1/4SCANNING | ||
Frame rate | 60Hz | ||
Refresh frequency | >3000Hz | ||
Control mode | Computer synchronous | ||
Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted | ||
255 steps. No grey loss | |||
Out of control point | <1/10000 | ||
Working hours | ≥72hours | ||
Mean Time Between Failure | >5000hours | ||
Life time | 100000hours | ||
Life-all-white(brightness halving) | 50000hours | ||
Environment temperature range | Operating temperature range: -20-45℃ | ||
Self-check technology | LED spot self-check, communications check, power check, | ||
temperature monitor(need customization) | |||
Remote monitoring | Remote supervision and control, record potential fault, | ||
send out warning signs to the operators.(need customization) | |||
Software environment | WindowsNT,Windows1999,WindowsXP | ||
Luminous point width between centres | Deviation<3% | ||
Brightness uniformity | <10% | ||
Color uniformity(chromaticity coordinate) | ±0.003 | ||
Power supply request | AC85-264V(50Hz-60Hz) | ||
Contrast | (1000:1) | ||
System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | ||
Humidity(working) | working:10-95% | ||
Humidity(storing) | storing:10-95% |
Our Services
1. Warranty
(1) We provide warranty of all components for 24 months. During this time, we will replace or repair our goods for free if there is something wrong with them.
(2) We will provide maintenance for a lifetime and charge for the raw materials only.
2. Technology Training
(1) We provide the technology training for free, which contains the operation training and maintenance training in the factory.
(2) We will send our engineers to your country by negotiation.
3. Maintenance and Consultation
(1) We provide full maintenance for a lifetime and charge for the raw materials only.
(2) We also provide lifetime consultation by E-mail, call, MSN or other ways for free.
4. Documents and Certification
(1) We provide the operation manual, software, test report and so on.
(2) We can also provide all kinds of certification such as CE, RoHS and so on.
5. CAD Drawing and Fixing
(1) We provide CAD drawing on how to fix up the display for free and some other expert suggestion.
(2) We will send our engineers to your place if we are expected after our negotiation.
6. Additional Service
We provide you the forwarding information, and some other information such as flight case, structure information for your reference for free.
