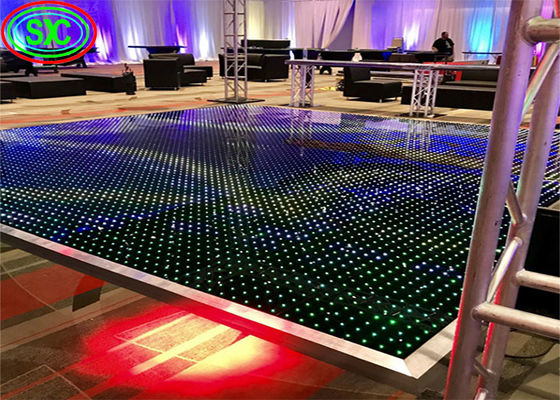

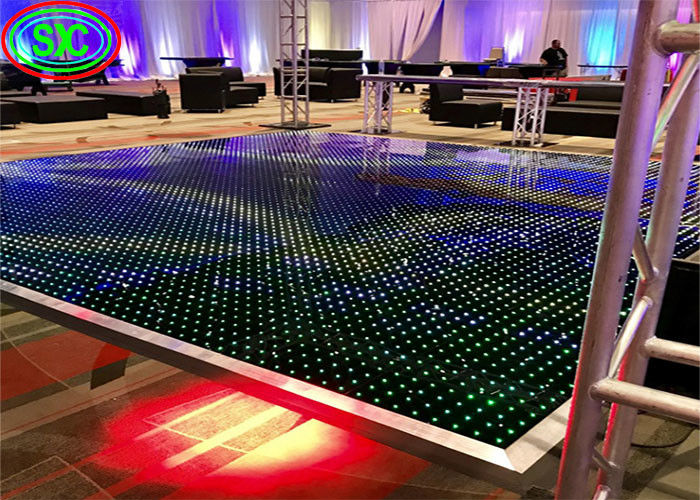

Name: SMD3535 LED Dance Floor Panel 4.81mm Pixel IP65 Waterproof
Brand: Shenzhen ShiXin Display Technology Co.,Ltd
SKU: P4.81
Price: 10000.00 USD
Availability: InStock

Home Products LED Dance Floor

SMD3535 LED Dance Floor Panel 4.81mm Pixel IP65 Waterproof

Product Details:

Place of Origin:	ShenZhen China
Brand Name:	SCXK
Certification:	CE/ROHS/FCC/ISO/UL
Model Number:	P4.81

Payment & Shipping Terms:

Minimum Order Quantity:	3 sqm
Price:	negotiation
Packaging Details:	flight case, wooden case, carton, it is up to you.
Delivery Time:	7-15 working days after receive your payment
Payment Terms:	T/T,Western Union
Supply Ability:	5000 sqm per month

Contact Now

Detailed Product Description

Pixels:	4.81mm	Tube Chip Color:	Full Color
Led Type:	SMD3535	Display Function:	Video
The Optimum Viewing Angel:	H:360°, V:360°	Relative Humidity:	≤95%RH
IC:	MBI 5024 IC	Rated Power/average Power:	400W/240W
Scan Mode:	Static Scan	Brightness:	Over Than 3000
Highlight:	Disco Dance Floor , Sound Active LED Dance Floor

China SMD3535 Sound Active DJ LED Disco Dance Floor Warm White Beam Panels

Product Specifications

Pixels	4.81mm
Tube Chip Color	Full color
LED Type	SMD3535
Display Function	Video
Optimum Viewing Angle	H:360°, V:360°
Relative Humidity	≤95%RH
IC	MBI 5024 IC
Rated Power/Average Power	400W/240W
Scan Mode	Static scan
Brightness	Over 3000

Product Description

SMD3535 sound active DJ LED disco dance floor warm white beam LED disco floor panels

Key Features

Display 50 kinds of patterns
Supports all video formats
Displays text content

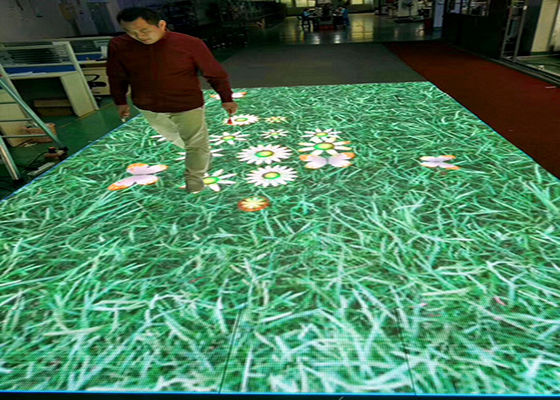

Built-in interactive dynamic effects that respond to footsteps

Applications

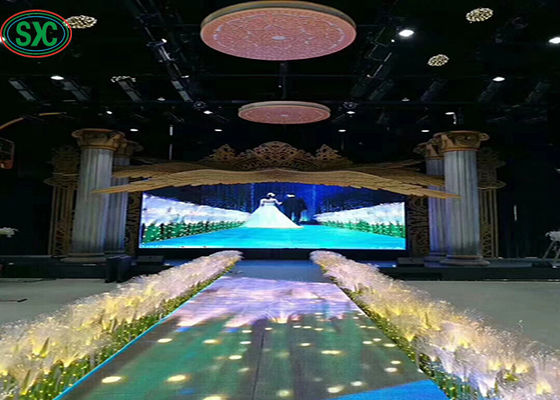

Architectural/retail spaces, stages, productions, night clubs, DJ parties, live concerts, award functions, art galleries, museums, and more.

Technical Specifications

LED Specifications
Type	SMD
LED Standard	Real Pixel (1R1G1B)
Red Wavelength	625-630nm
Green Wavelength	515-530nm
Blue Wavelength	465-475nm
Module Specifications
Pixel Pitch	4.81mm
Resolution	52x52 dots
Module Size	250x250mm
Cabinet Specifications
Cabinet Size (W*H)	500x1000mm
Cabinet Resolution	104x208 dots
Pixel Density	43222 dots/㎡
Cabinet Weight	≤6.5kg
Material	Die casting aluminum
Flatness of cabinet	≤0.3mm
Screen Parameters
Color/Brightness Calibration	Yes
Color Temperature (K)	3000-10000
Light Centre Distance Deviation	＜3%
Brightness Uniformity	≥97%
Color Uniformity	Within ±0.003C×,Cy
Contrast Ratio	5000:1
View Angle	Horizontal 160°/Vertical 140°
Input Voltage	AC100~240V (50-60Hz)
Power Consumption	Max:800w/㎡ Avg:280w/㎡
Driving Method	13 scanning
Protection Level	IP65 waterproof
Grey Scale Levels	R(256) G(256) B(256)
Life Span	100,000 Hrs
Temperature-Operating	-20 -- 50℃
Humidity-Operating	10 - 90%
Features	Anti-slip, anti-collision, big load-bearing capacity
Usage	LED floors, LED wall background
Display function	Text, picture, video

Production Process

Incoming Inspection
SMD
Plug-in
Wave Soldering
After Welding
Testing
Semi Finished Aging
Module Assembly
Gluing
Finished Aging
Detection Finishing Warehousing

Our Advantages

Professional Manufacturer of LED display
OEM service, No MOQ
Easy installation, regular items in Stocks
Offering free design drawing as requested
Remote controlling and adjusting are available
Wooden case or flight case options
24-hour response time
Fast delivery: Usually 6-8 working days
Excellent R&D team, factory Price and quality assurance

Packaging and Shipping

Wooden case or flight case package are available. Shipping by sea, air or DHL, multiple shipping ways for your choice.

Quality Assurance Methods

Aging

100% fully test
Condition: 72 hours with 256 grey level

Vibration Testing

Condition: 3-5 mins up and down in 5mm range

Our Factory

Why Choose Us

Continuous Quality

With more than 12 years experience in LED display production, equipment is regularly updated. Our unique standardized and modular production ensures consistent product quality.

Competitive Price

Large scale production capacity and professional technology allow us to maintain effective modular production. We continuously innovate to reduce costs and benefit customers.

Fast Delivery

We commit to promised delivery dates, using emergency inventory procedures when necessary to maintain uninterrupted supply.

Perfect Service

Pre-sales: Your requirements are highly valued with product recommendations tailored to your needs.
After-sales: We track product usage to continuously improve our offerings.
