Outdoor P8 LED Display IP65 Waterproof 5000cd SMD2121

Product Details:

Place of Origin:	Shenzhen in China
Brand Name:	SCXK
Certification:	CE/ROHS/FCC/ISO/CB/UL
Model Number:	P8

Payment & Shipping Terms:

Minimum Order Quantity:	3 pcs
Price:	negotiation
Packaging Details:	flight case, wooden case, carton, it is up to you.
Delivery Time:	7-10 working days after receive your payment
Payment Terms:	T/T,Western Union,MoneyGram,L/C,D/P
Supply Ability:	5000 sqm per month

Contact Now

Detailed Product Description

Pixel Pitch:	8mm	Led Type:	SMD2121
Waterproof:	IP65	Cabinet:	Die Catsing Aluminum Or Iron
MBI:	5024	Optimal Viewing Distance:	>=8m
Voltage:	DC5V	Brightness:	More Than 5000cd/㎡
LED Parameter:	R:625-630nm	Module:	320*160mm
Highlight:	Comercial Advertising P8 LED Screen , Waterproof P8 LED Screen

Full Color Outdoor Waterproof Commercial Advertising P8 LED Screen Display Billboard

Product Specifications

Attribute	Value
Pixel pitch	8mm
Led Type	SMD2121
Waterproof	IP65
Cabinet	Die casting aluminum or Iron
MBI	5024
Optimal viewing distance	≥8m
Voltage	DC5V
Brightness	More than 5000cd/㎡
LED parameter	R:625-630nm
Module	320*160mm

Technical Specifications

Resolution	8mm
Pixel configuration	1R1G1B
Pixel density	15625/m²
Module resolution	40x20
View distance	8-500m
White balance brightness	>5000cd/㎡
Horizontal view angle	120°
Vertical view angle	60°
Frame rate	60Hz
Refresh frequency	>4200Hz
Working temperature	-20°C to 55°C
Lifespan	100,000 hours

Production Process

Incoming Inspection
SMD
Plug-in
Wave Soldering
After Welding
Testing
Semi Finished Aging
Module Assembly
Gluing
Finished Aging
Detection Finishing Warehousing

Applications

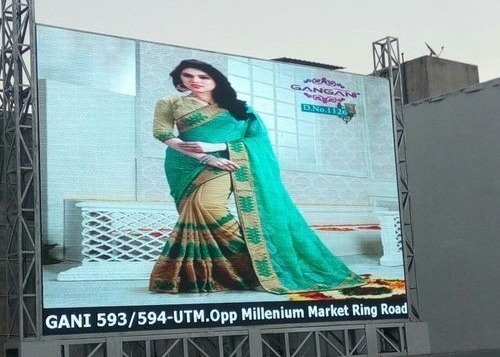

Outdoor and indoor advertising, digital billboards
Sports halls, fields, playgrounds, schools, churches
Airports, bus stations and railway terminals

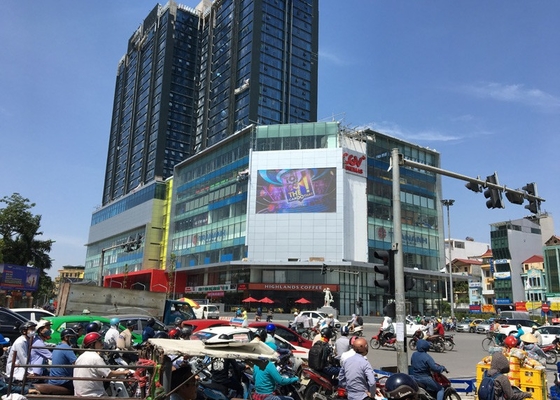

Facades of shopping malls, department stores, banks
Architecture and social projects, urban information systems

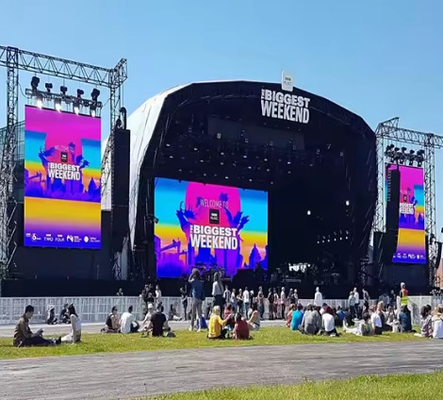

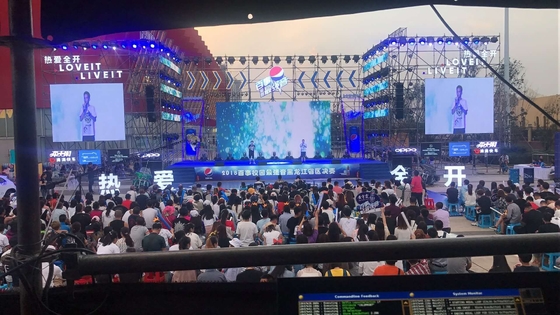

Show-business, concerts, festivals, motor shows

Why Choose Us

Continuous Quality: 10+ years experience with regularly updated equipment and standardized production
Competitive Pricing: Large-scale production capacity with cost-effective modular production
Fast Delivery: Commitment to promised delivery dates with emergency inventory procedures
Perfect Service: Comprehensive pre-sales consultation and after-sales support
